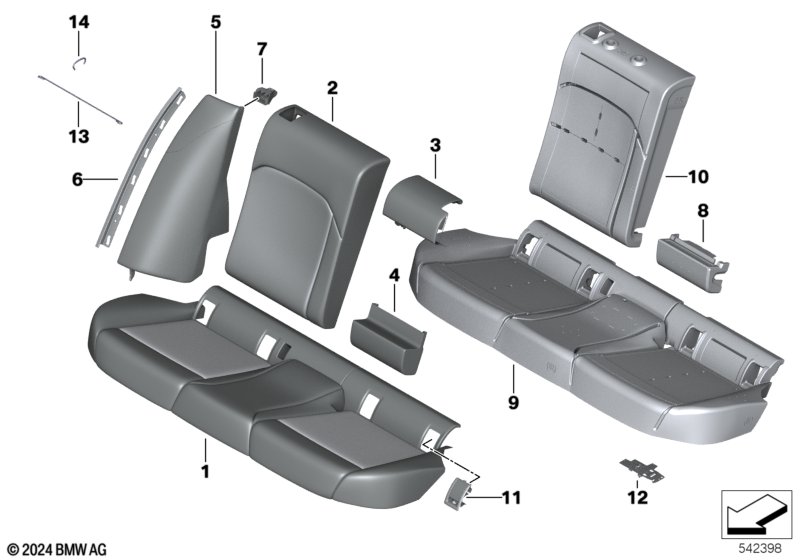

Seat, rear, uphlstry/cover, load-through for BMW 5 Series G61 Touring 540dX (2025)
This Seat, rear, uphlstry/cover, load-through technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Merino copper-brown/atlas-gray |
VCJM=Yes |
|||||||||
| 01 | Seat cover | BRAUN/GRAU | 1 | 52205A5C109 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED BLACK |
KUSW=Yes |
|||||||||
| 01 | Seat cover | SCHWARZ | 1 | 52205A5C0F6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino black/Atlas gray |
VCJL=Yes |
|||||||||
| 01 | Seat cover | SCHWARZ/GRAU | 1 | 52205A5C110 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino silverstone II/atlas-gray |
VCJN=Yes |
|||||||||
| 01 | Seat cover | SILBER/GRAU | 1 | 52205A5C102 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped black |
KSSW=Yes |
|||||||||
| 01 | Seat cover | SCHWARZ | 1 | 52205A5C101 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped espresso-brown |
KSJX=Yes |
|||||||||
| 01 | Seat cover | ESPRESSOBRAUN | 1 | 52205A5C100 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped smoke-white |
KSFU=Yes |
|||||||||
| 01 | Seat cover | RAUCHWEISS | 1 | 52205A5C0F9 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Merino"/schwarz |
LKSW=Yes |
|||||||||
| 01 | Seat cover | SCHWARZ | 1 | 52207889045 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alcant./Veganza comb. black |
KTSW=Yes |
|||||||||
| 01 | Seat cover | SCHWARZ | 1 | 52207887893 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino copper-brown/atlas-gray |
VCJM=Yes |
|||||||||
| 02 | Cover, backrest, left | BRAUN/GRAU | 1 | 52205A5C113 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover, backrest, right | BRAUN/GRAU | 1 | 52205A5C114 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED BLACK |
KUSW=Yes |
|||||||||
| 02 | Cover, backrest, left | SCHWARZ | 1 | 52205A5C0F7 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover, backrest, right | SCHWARZ | 1 | 52205A5C0F8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino black/Atlas gray |
VCJL=Yes |
|||||||||
| 02 | Cover, backrest, left | SCHWARZ/GRAU | 1 | 52205A5C111 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover, backrest, right | SCHWARZ/GRAU | 1 | 52205A5C112 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino silverstone II/atlas-gray |
VCJN=Yes |
|||||||||
| 02 | Cover, backrest, left | SILBER/GRAU | 1 | 52205A5C115 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover, backrest, right | SILBER/GRAU | 1 | 52205A5C116 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped black |
KSSW=Yes |
|||||||||
| 02 | Cover, backrest, left | SCHWARZ | 1 | 52205A5C107 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover, backrest, right | SCHWARZ | 1 | 52205A5C108 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped espresso-brown |
KSJX=Yes |
|||||||||
| 02 | Cover, backrest, left | ESPRESSOBRAUN | 1 | 52205A5C103 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover, backrest, right | ESPRESSOBRAUN | 1 | 52205A5C104 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped smoke-white |
KSFU=Yes |
|||||||||
| 02 | Cover, backrest, left | RAUCHWEISS | 1 | 52205A5C105 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover, backrest, right | RAUCHWEISS | 1 | 52205A5C106 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alcant./Veganza comb. black |
KTSW=Yes |
|||||||||
| 02 | Cover, backrest, left | SCHWARZ | 1 | 52207887895 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover, backrest, right | SCHWARZ | 1 | 52207887896 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino black/Atlas gray or Leather Merino copper-brown/atlas-gray or Leather Merino silverstone II/atlas-gray |
VCJL=Yes VCJM=Yes VCJN=Yes |
|||||||||
| 03 | Cover backrest center, top | ATLASGRAU | 1 | 52205A549D1 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped smoke-white or Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK |
KSFU=Yes KSJX=Yes KSSW=Yes KTSW=Yes KUSW=Yes |
|||||||||
| 03 | Cover backrest center, top | SCHWARZ | 1 | 52205A549A2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino copper-brown/atlas-gray |
VCJM=Yes |
|||||||||
| 04 | Cover backrest center, bottom | BRAUN/GRAU | 1 | 52205A5C520 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino silverstone II/atlas-gray |
VCJN=Yes |
|||||||||
| 04 | Cover backrest center, bottom | SILBER/GRAU | 1 | 52205A5C529 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped espresso-brown |
KSJX=Yes |
|||||||||
| 04 | Cover backrest center, bottom | ESPRESSOBRAUN | 1 | 52205A5C429 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped smoke-white |
KSFU=Yes |
|||||||||
| 04 | Cover backrest center, bottom | RAUCHWEISS | 1 | 52205A5C430 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Merino"/schwarz or Leather Merino black/Atlas gray |
LKSW=Yes VCJL=Yes |
|||||||||
| 04 | Cover backrest center, bottom | SCHWARZ/GRAU | 1 | 52205A5C519 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK |
KSSW=Yes KTSW=Yes KUSW=Yes |
|||||||||
| 04 | Cover backrest center, bottom | SCHWARZ | 1 | 52205A5C431 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino copper-brown/atlas-gray |
VCJM=Yes |
|||||||||
| 05 | Lateral trim panel left | KUPFERBRAUN | 1 | 52205A57595 | NoS | Shop at ECS Tuning | ||||
| 05 | Lateral trim panel right | KUPFERBRAUN | 1 | 52205A57596 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino black/Atlas gray |
VCJL=Yes |
|||||||||
| 05 | Lateral trim panel left | SCHWARZ | 1 | 52205A57593 | NoS | Shop at ECS Tuning | ||||
| 05 | Lateral trim panel right | SCHWARZ | 1 | 52205A57594 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino silverstone II/atlas-gray |
VCJN=Yes |
|||||||||
| 05 | Lateral trim panel left | SILVERSTONE | 1 | 52205A57597 | NoS | Shop at ECS Tuning | ||||
| 05 | Lateral trim panel right | SILVERSTONE | 1 | 52205A57598 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped espresso-brown |
KSJX=Yes |
|||||||||
| 05 | Lateral trim panel left | ESPRESSOBRAUN | 1 | 52205A57585 | NoS | Shop at ECS Tuning | ||||
| 05 | Lateral trim panel right | ESPRESSOBRAUN | 1 | 52205A57586 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped smoke-white |
KSFU=Yes |
|||||||||
| 05 | Lateral trim panel left | RAUCHWEISS | 1 | 52205A57587 | NoS | Shop at ECS Tuning | ||||
| 05 | Lateral trim panel right | RAUCHWEISS | 1 | 52205A57588 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK |
KSSW=Yes KTSW=Yes KUSW=Yes |
|||||||||
| 05 | Lateral trim panel left | SCHWARZ | 1 | 52205A57583 | NoS | Shop at ECS Tuning | ||||
| 05 | Lateral trim panel right | SCHWARZ | 1 | 52205A57584 | NoS | Shop at ECS Tuning | ||||
| 06 | Strip, side section, left | SCHWARZ | 1 | 52205A8BED7 | NoS | Shop at ECS Tuning | ||||
| 06 | Strip, side section, right | SCHWARZ | 1 | 52205A8BED8 | NoS | Shop at ECS Tuning | ||||
| 07 | Clips, side section | 1 | 52205A8BEE8 | NoS | Shop at ECS Tuning | |||||
| 08 | Upholstery element, bottom | 1 | 52205A17BB8 | NoS | Shop at ECS Tuning | |||||
| 09 | Foam section, seat | 1 | 52205A78344 | NoS | Shop at ECS Tuning | |||||
| 10 | Foam padding, backrest, left | 1 | 52205A785A3 | NoS | Shop at ECS Tuning | |||||
| 10 | Foam padding, backrest, right | 1 | 52205A785A4 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Veganza perf./stepped smoke-white |
S230A=Yes S8LTA=Yes KSFU=Yes |
|||||||||
| 11 | Trim, I size | RAUCHWEISS | 4 | 52205A575C7 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Veganza perf./stepped smoke-white |
S230A=Yes S8LTA=No KSFU=Yes |
|||||||||
| 11 | Trim, I size | RAUCHWEISS | 4 | 52205A575C7 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Veganza perf./stepped smoke-white |
S230A=No S8LTA=Yes KSFU=Yes |
|||||||||
| 11 | Trim, I size | RAUCHWEISS | 4 | 52205A575C7 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Veganza perf./stepped smoke-white |
S230A=No S8LTA=No KSFU=Yes |
|||||||||
| 11 | Cover isofix | RAUCHWEISS | 4 | 52205A575C2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Leather Merino copper-brown/atlas-gray |
S230A=No S8LTA=No VCJM=Yes |
|||||||||
| 11 | Cover isofix | KUPFERBRAUN | 4 | 52205A575C4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Leather Merino silverstone II/atlas-gray |
S230A=No S8LTA=No VCJN=Yes |
|||||||||
| 11 | Cover isofix | SILVERSTONE | 4 | 52205A575C5 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Leather Merino copper-brown/atlas-gray |
S230A=Yes S8LTA=Yes VCJM=Yes |
|||||||||
| 11 | Trim, I size | KUPFERBRAUN | 4 | 52205A575C9 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Leather Merino copper-brown/atlas-gray |
S230A=Yes S8LTA=No VCJM=Yes |
|||||||||
| 11 | Trim, I size | KUPFERBRAUN | 4 | 52205A575C9 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Leather Merino copper-brown/atlas-gray |
S230A=No S8LTA=Yes VCJM=Yes |
|||||||||
| 11 | Trim, I size | KUPFERBRAUN | 4 | 52205A575C9 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Veganza perf./stepped espresso-brown |
S230A=Yes S8LTA=Yes KSJX=Yes |
|||||||||
| 11 | Trim, I size | ESPRESSOBRAUN | 4 | 52205A575C8 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Veganza perf./stepped espresso-brown |
S230A=Yes S8LTA=No KSJX=Yes |
|||||||||
| 11 | Trim, I size | ESPRESSOBRAUN | 4 | 52205A575C8 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Veganza perf./stepped espresso-brown |
S230A=No S8LTA=Yes KSJX=Yes |
|||||||||
| 11 | Trim, I size | ESPRESSOBRAUN | 4 | 52205A575C8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Veganza perf./stepped espresso-brown |
S230A=No S8LTA=No KSJX=Yes |
|||||||||
| 11 | Cover isofix | ESPRESSOBRAUN | 4 | 52205A575C3 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Leather Merino silverstone II/atlas-gray |
S230A=Yes S8LTA=Yes VCJN=Yes |
|||||||||
| 11 | Trim, I size | SILVERSTONE | 4 | 52205A575D0 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Leather Merino silverstone II/atlas-gray |
S230A=Yes S8LTA=No VCJN=Yes |
|||||||||
| 11 | Trim, I size | SILVERSTONE | 4 | 52205A575D0 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Leather Merino silverstone II/atlas-gray |
S230A=No S8LTA=Yes VCJN=Yes |
|||||||||
| 11 | Trim, I size | SILVERSTONE | 4 | 52205A575D0 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather "Merino"/schwarz or Leather Merino black/Atlas gray |
S230A=No S8LTA=No KSSW=Yes KTSW=Yes KUSW=Yes LKSW=Yes VCJL=Yes |
|||||||||
| 11 | Cover isofix | SCHWARZ | 4 | 52205A575C1 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather "Merino"/schwarz or Leather Merino black/Atlas gray |
S230A=Yes S8LTA=Yes KSSW=Yes KTSW=Yes KUSW=Yes LKSW=Yes VCJL=Yes |
|||||||||
| 11 | Trim, I size | SCHWARZ | 4 | 52205A575C6 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather "Merino"/schwarz or Leather Merino black/Atlas gray |
S230A=Yes S8LTA=No KSSW=Yes KTSW=Yes KUSW=Yes LKSW=Yes VCJL=Yes |
|||||||||
| 11 | Trim, I size | SCHWARZ | 4 | 52205A575C6 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 and Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather "Merino"/schwarz or Leather Merino black/Atlas gray |
S230A=No S8LTA=Yes KSSW=Yes KTSW=Yes KUSW=Yes LKSW=Yes VCJL=Yes |
|||||||||
| 11 | Trim, I size | SCHWARZ | 4 | 52205A575C6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Seat heating, front and rear |
S4HAA=Yes |
|||||||||
| 12 | Carrier plate | 2 | 52205A17AD9 | NoS | Shop at ECS Tuning | |||||
| 13 | Wire-strap | L=1800MM | 1 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 14 | Clamp | 1,6X20X10,1 | 20 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
