Rear seat center armrest for BMW 5 Series G61 Touring 520d (2025)

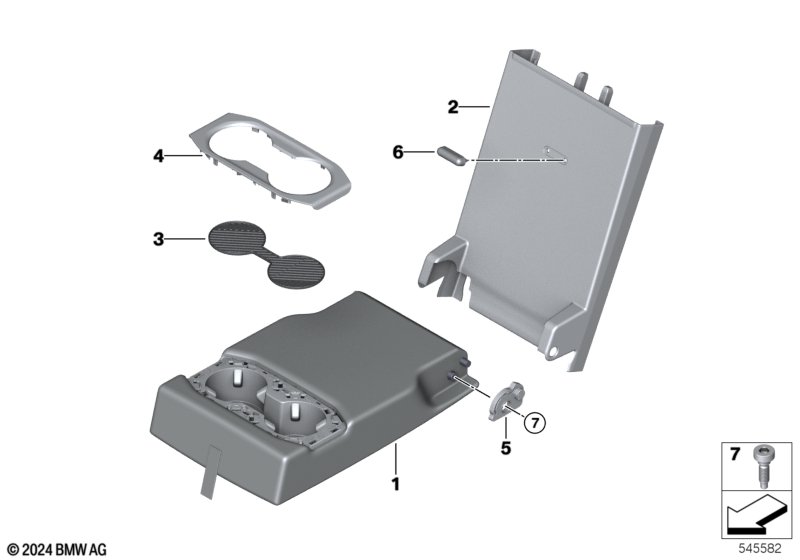

This Rear seat center armrest technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Merino silverstone II/atlas-gray |
VCJN=Yes |
|||||||||
| 01 | Center armrest | SILVERSTONE | 1 | 52205A4FE72 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped smoke-white |
KSFU=Yes |
|||||||||
| 01 | Center armrest | RAUCHWEISS | 1 | 52205A4FE46 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino copper-brown/atlas-gray |
VCJM=Yes |
|||||||||
| 01 | Center armrest | KUPFERBRAUN | 1 | 52205A4FE71 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped espresso-brown |
KSJX=Yes |
|||||||||
| 01 | Center armrest | ESPRESSOBRAUN | 1 | 52205A4FE45 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Merino"/schwarz or Leather Merino black/Atlas gray |
LKSW=Yes VCJL=Yes |
|||||||||
| 01 | Center armrest | SCHWARZ | 1 | 52205A4FE70 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK |
KSSW=Yes KTSW=Yes KUSW=Yes |
|||||||||
| 01 | Center armrest | SCHWARZ | 1 | 52205A4FE43 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino silverstone II/atlas-gray |
VCJN=Yes |
|||||||||
| 02 | Trim for center armrest | SILVERSTONE | 1 | 52205A54CA6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped smoke-white or Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather "Merino"/schwarz or Leather Merino black/Atlas gray or Leather Merino copper-brown/atlas-gray |
KSFU=Yes KSJX=Yes KSSW=Yes KTSW=Yes KUSW=Yes LKSW=Yes VCJL=Yes VCJM=Yes |
|||||||||
| 02 | Trim for center armrest | SCHWARZ | 1 | 52205A54CA7 | NoS | Shop at ECS Tuning | ||||
| 03 | Rubber insert, cup holder | 1 | 52205A7E2E9 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Leather Merino silverstone II/atlas-gray |
VCJN=Yes |
|||||||||
| 04 | Cover, cup holder | SILVERSTONE | 1 | 52205A7E2F3 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped smoke-white |
KSFU=Yes |
|||||||||
| 04 | Cover, cup holder | RAUCHWEISS | 1 | 52205A7E2F2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather Merino black/Atlas gray or Leather Merino copper-brown/atlas-gray |
KSJX=Yes KSSW=Yes KTSW=Yes KUSW=Yes VCJL=Yes VCJM=Yes |
|||||||||
| 04 | Cover, cup holder | SCHWARZ | 1 | 52205A7E2F1 | NoS | Shop at ECS Tuning | ||||
| 05 | Lock, armrest | 2 | 52205A861F0 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Leather Merino silverstone II/atlas-gray |
VCJN=Yes |
|||||||||
| 06 | Rubber buffer | SILVERSTONE | 1 | 52205A92A27 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped smoke-white or Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Alcant./Veganza comb. black or VEGANZA PERFORATED BLACK or Leather Merino black/Atlas gray or Leather Merino copper-brown/atlas-gray |
KSFU=Yes KSJX=Yes KSSW=Yes KTSW=Yes KUSW=Yes VCJL=Yes VCJM=Yes |
|||||||||
| 06 | Rubber buffer | SCHWARZ | 1 | 52205A92A19 | NoS | Shop at ECS Tuning | ||||
| 07 | Collar screw | M6 | 2 | 07147160601 | $1.05 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
