Seat, front, head restraint Comfort seat for BMW 5 Series G61 Touring 520d (2023)

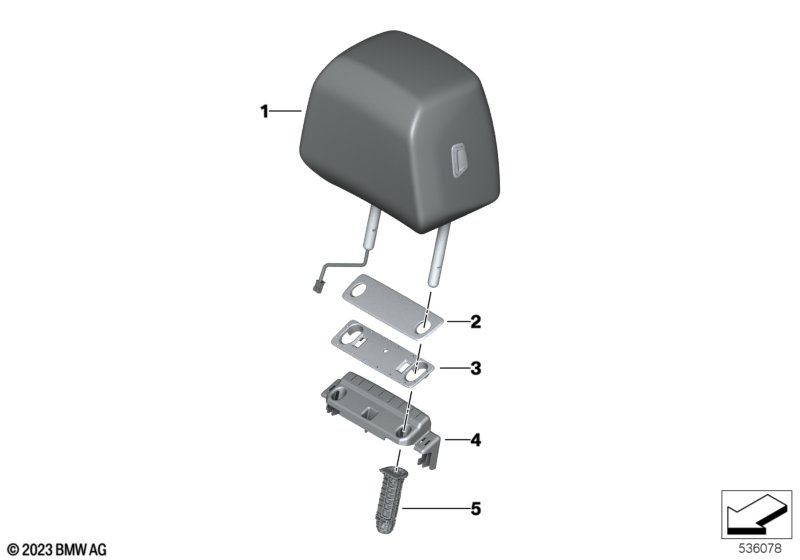

This Seat, front, head restraint Comfort seat technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Comfort seat with memory |
S456A=Yes |
||||||||
| For vehicles with Veganza perf./stepped smoke-white |
KSFU=Yes |
|||||||||
| 01 | Head restraint comfort seat | RAUCHWEISS | 2 | 52105A53551 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino black/Atlas gray |
VCJL=Yes |
|||||||||
| 01 | Head restraint comfort seat | SCHWARZ/GRAU | 2 | 52105A53554 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped espresso-brown |
KSJX=Yes |
|||||||||
| 01 | Head restraint comfort seat | ESPRESSOBRAUN | 2 | 52105A53552 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino copper-brown/atlas-gray |
VCJM=Yes |
|||||||||
| 01 | Head restraint comfort seat | BRAUN/GRAU | 2 | 52105A53555 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped black |
KSSW=Yes |
|||||||||
| 01 | Head restraint comfort seat | SCHWARZ | 2 | 52105A53553 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped smoke-white |
KSFU=Yes |
|||||||||
| 02 | Head rest cover | RAUCHWEISS | 2 | 52105A54B43 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Merino copper-brown/atlas-gray |
VCJM=Yes |
|||||||||
| 02 | Head rest cover | ATLASGRAU | 2 | 52105A54B42 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf./stepped espresso-brown or Veganza perf./stepped black or Leather Merino black/Atlas gray |
KSJX=Yes KSSW=Yes VCJL=Yes |
|||||||||
| 02 | Head rest cover | SCHWARZ | 2 | 52105A54B44 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover, head restraint guide | 2 | 52105A17910 | NoS | Shop at ECS Tuning | |||||
| 04 | Support, backrest | 2 | 52105A44937 | NoS | Shop at ECS Tuning | |||||
| 05 | Head restraint guide | 4 | 52105A178F3 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G61 Touring 520d Seat, front, head restraint Comfort seat?
- This technical diagram illustrates the Seat, front, head restraint Comfort seat within the Seats group for the 5 Series G61 Touring 520d produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Head restraint comfort seat (Part #52105A53551).
- Which models use the hardware listed in this Seat, front, head restraint Comfort seat?
- The hardware and components featured in the Seat, front, head restraint Comfort seat are specific to the 5 Series G61 Touring 520d produced during 2023. These technical specifications ensure that parts like the Head restraint comfort seat (52105A53551) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, front, head restraint Comfort seat assembly?
- Each item in the Seat, front, head restraint Comfort seat corresponds to the numbered list below the illustration. For the 5 Series G61 Touring 520d, you can identify the Head restraint comfort seat by locating its position on the schematic, which then links to the official BMW part number 52105A53551 for the Seats section.
