Seat, front, backrest frame for BMW 1 Series F70 120 (2025)

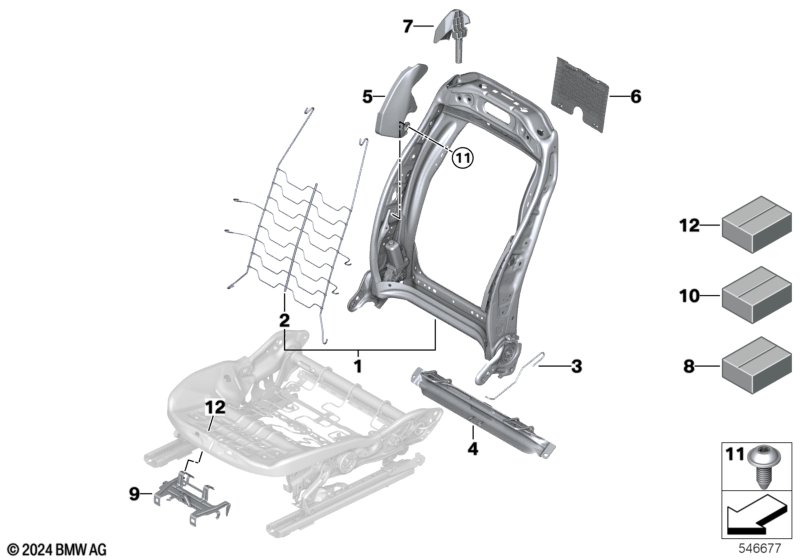

This Seat, front, backrest frame technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 01 | Backrest frame electrical left | 1 | 52107911657 | NoS | Shop at ECS Tuning | |||||
| 01 | Backrest frame electrical right | 1 | 52107911660 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=No |
|||||||||
| 01 | Backrest frame manual left | 1 | 52107911655 | NoS | Shop at ECS Tuning | |||||
| 01 | Backrest frame, manual, right | 1 | 52107911656 | NoS | Shop at ECS Tuning | |||||
| 02 | Spring mat backrest frame | 2 | 52105B3C511 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=No |
|||||||||
| 03 | Coupling rod unlocking left | 1 | 52105A15E37 | NoS | Shop at ECS Tuning | |||||
| 03 | Coupling rod unlocking right | 1 | 52105A15E38 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Isofix-System and Child seat mount |
S470A=Yes S478A=Yes |
|||||||||
| 04 | Isofix bracket, right | 1 | 52109461598 | Shop at ECS Tuning | ||||||
| For vehicles with Isofix-System and Child seat mount |
S470A=Yes S478A=No |
|||||||||
| 04 | Isofix bracket, right | 1 | 52109461598 | Shop at ECS Tuning | ||||||
| For vehicles with Isofix-System and Child seat mount |
S470A=No S478A=Yes |
|||||||||
| 04 | Isofix bracket, right | 1 | 52109461598 | NoS | Shop at ECS Tuning | |||||
| For vehicles with M Sports seats |
S711A=Yes |
|||||||||
| 05 | Support backrest side bolster left | 1 | 52109484459 | Shop at ECS Tuning | ||||||
| 05 | Support backrest side bolster right | 1 | 52109484460 | Shop at ECS Tuning | ||||||
| For vehicles with Sports seat and M Sports seats |
S481A=Yes S711A=No |
|||||||||
| 05 | Support backrest side bolster left | 1 | 52109484459 | NoS | Shop at ECS Tuning | |||||
| 05 | Support backrest side bolster right | 1 | 52109484460 | NoS | Shop at ECS Tuning | |||||
| For vehicles with M Sports seats |
S711A=No |
|||||||||
| 06 | Underlay backrest | 2 | 52109493503 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Sports seat and M Sports seats |
S481A=Yes S711A=No |
|||||||||
| 07 | Support, backrest, left | 1 | 52109872505 | NoS | Shop at ECS Tuning | |||||
| 07 | Support, backrest, right | 1 | 52109872506 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Isofix-System |
S470A=Yes |
|||||||||
| 08 | Kit, rivet, holder, ISOFIX | 1 | 52109493527 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Child seat mount |
S478A=Yes |
|||||||||
| 08 | Satz Kleinteile ISOFIX mit Logo | 1 | 52105A35E28 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 09 | Bracket control unit left | 1 | 52109872513 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat heating driver/passenger |
S494A=Yes |
|||||||||
| 09 | Bracket control unit right | 1 | 52105A66498 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Seat heating driver/passenger |
S459A=No S494A=Yes |
|||||||||
| 09 | Bracket control unit left | 1 | 52105A66497 | NoS | Shop at ECS Tuning | |||||
| 10 | Main small parts kit | 2 | 52109493522 | NoS | Shop at ECS Tuning | |||||
| 11 | Fillister head screw with collar | 8 | 07147187828 | $0.38 | Shop at ECS Tuning | |||||
| 12 | Hardware kit control unit bracket | 2 | 52109891640 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
