Seat, front, electrical and motors for BMW 1 Series F70 120 (2025)

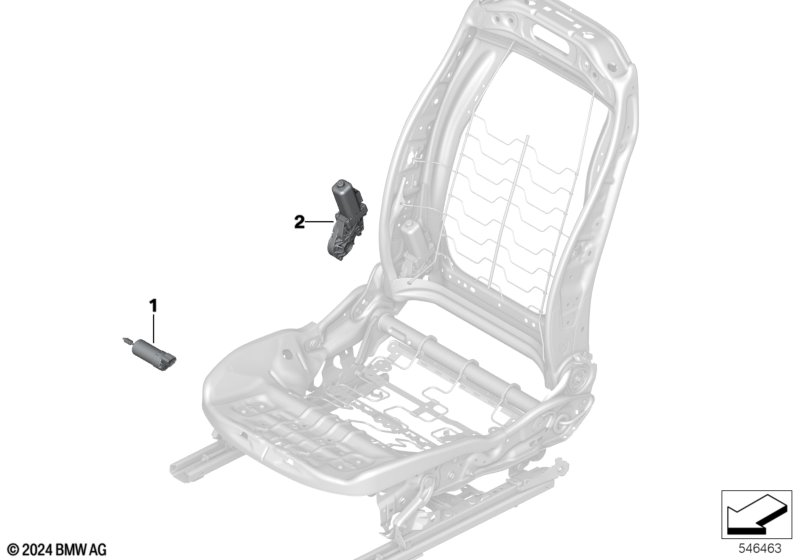

This Seat, front, electrical and motors technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster, electric, with memory Passenger's side |
S459A=Yes |
|||||||||
| 01 | Drive, longitudinal seat adjustment | 1 | 52105B3C523 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Seat adjuster, electric, with memory Driver's side |
S459A=Yes S45AA=Yes |
|||||||||
| 01 | Drive, longitudinal seat adjustment | 1 | 52105B3C524 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat adjuster, electric, with memory Driver's side |
S459A=Yes S45AA=No |
|||||||||
| 01 | Drive, longitudinal seat adjustment | 1 | 52105B3C524 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat adjuster, electric, with memory Driver's side |
S459A=No S45AA=Yes |
|||||||||
| 01 | Drive, longitudinal seat adjustment | 1 | 52105B3C524 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 02 | Drive unit, backrest angle adjst., right | 1 | 52105B3C504 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory and Seat adjuster, electric, with memory |
S459A=Yes S45AA=Yes |
|||||||||
| 02 | Drive unit, backrest angle adjust., left | 1 | 52105B3C4F7 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat adjuster, electric, with memory |
S459A=Yes S45AA=No |
|||||||||
| 02 | Drive unit, backrest angle adjust., left | 1 | 52105B3C4F7 | Shop at ECS Tuning | ||||||
| For vehicles with Seat adjuster, electric, with memory and Seat adjuster, electric, with memory |
S459A=No S45AA=Yes |
|||||||||
| 02 | Drive unit, backrest angle adjust., left | 1 | 52105B3C4F7 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
