Seat, front, backrest frame for BMW 5 Series G99 M5 Touring M5 (2025)

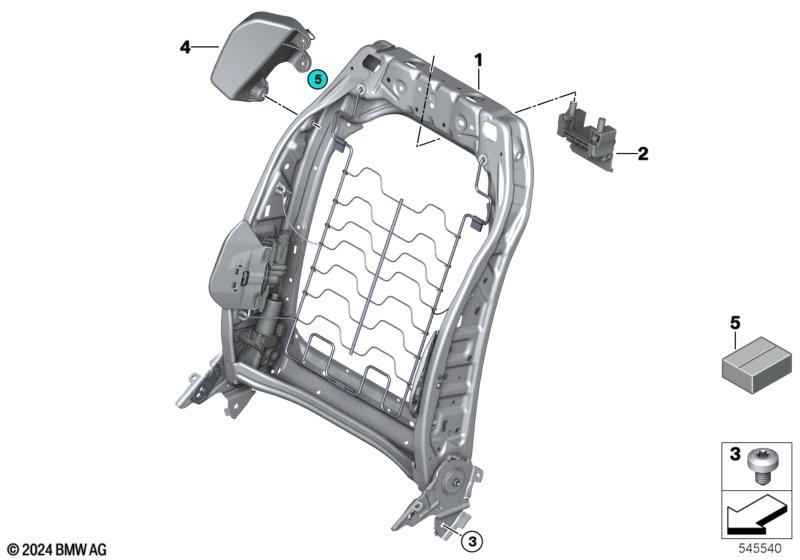

This Seat, front, backrest frame technical drawing provides a detailed breakdown of the assembly for the 5 Series G99 M5 Touring M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | backrest frame el. fa | 2 | 52105A15EA3 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Travel & Comfort Rail System |
S4FLA=Yes |
|||||||||
| 02 | Holder, backrest trim | 2 | 52105A17932 | NoS | Shop at ECS Tuning | |||||
| 03 | Screw | M10X16 | 4 | 72119909471 | Shop at ECS Tuning | |||||
| 04 | Shoulder support left | 2 | 52107885883 | NoS | Shop at ECS Tuning | |||||
| 04 | Shoulder support right | 2 | 52107885884 | NoS | Shop at ECS Tuning | |||||
| 05 | Main small parts kit | 1 | 52108087849 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G99 M5 Touring M5 Seat, front, backrest frame?
- This technical diagram illustrates the Seat, front, backrest frame within the Seats group for the 5 Series G99 M5 Touring M5 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the backrest frame el. fa (Part #52105A15EA3).
- Which models use the hardware listed in this Seat, front, backrest frame?
- The hardware and components featured in the Seat, front, backrest frame are specific to the 5 Series G99 M5 Touring M5 produced during 2025. These technical specifications ensure that parts like the backrest frame el. fa (52105A15EA3) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Seat, front, backrest frame assembly?
- Each item in the Seat, front, backrest frame corresponds to the numbered list below the illustration. For the 5 Series G99 M5 Touring M5, you can identify the backrest frame el. fa by locating its position on the schematic, which then links to the official BMW part number 52105A15EA3 for the Seats section.
