Seat, front, uphlstry, cover, Sport seat for BMW 2 Series F78 Gran Coupé 225L (2025)

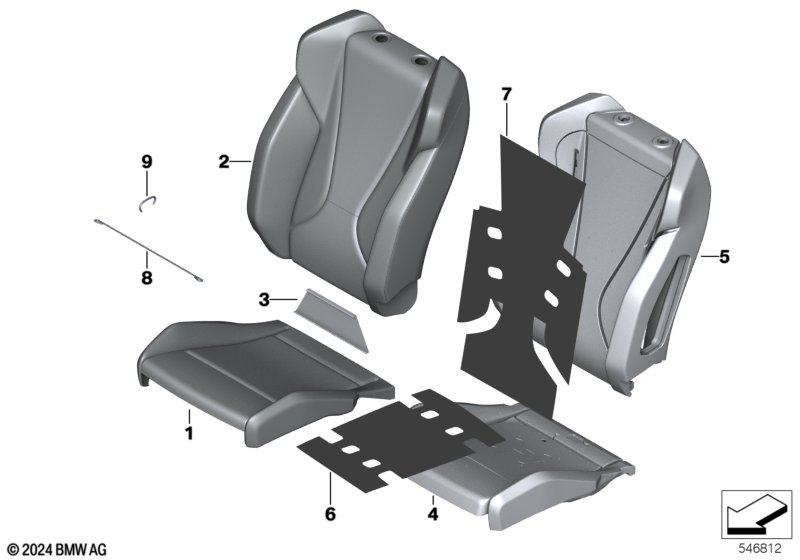

This Seat, front, uphlstry, cover, Sport seat technical drawing provides a detailed breakdown of the assembly for the 2 Series F78 Gran Coupé 225L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sports seats |
S711A=No |
||||||||
| For vehicles with Sensatec perforated/Coral red/black |
KUKP=Yes |
|||||||||
| 01 | Cover, sport seat artificial leather | ROT/SCHWARZ | 2 | 52105A3DAD5 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED MOCHA |
KUMY=Yes |
|||||||||
| 01 | Cover, sport seat artificial leather | MOKKA | 2 | 52105A3DAD6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Coral red/black |
KUKP=Yes |
|||||||||
| 02 | Cover sport seat bckrst artif.leather R | ROT/SCHWARZ | 1 | 52105A508E4 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover sport seat bckrst artif.leather L | ROT/SCHWARZ | 1 | 52105A59C93 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veganza perf. Atlas Grey/Smoke White |
KUKF=Yes |
|||||||||
| 02 | Cover backrest vinyl right | GRAU | 1 | 52105B5E418 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest vinyl left | GRAU | 1 | 52105B5E445 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED MOCHA |
KUMY=Yes |
|||||||||
| 02 | Cover sport seat bckrst artif.leather R | MOKKA | 1 | 52105A508E6 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover sport seat bckrst artif.leather L | MOKKA | 1 | 52105A59C95 | NoS | Shop at ECS Tuning | ||||
| 03 | Backrest covering extension | 1 | 52109873838 | NoS | Shop at ECS Tuning | |||||
| 04 | Foam part, sport seat | 2 | 52105A09DF0 | Shop at ECS Tuning | ||||||
| 05 | Foam part, sport backrest left | 1 | 52109461887 | NoS | Shop at ECS Tuning | |||||
| 05 | Foam part, Sport backrest, right | 1 | 52109493412 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat heating driver/passenger |
S494A=Yes |
|||||||||
| 06 | Heating element seat | 2 | 52105A356F9 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat heating driver/passenger and Preparation seat heating |
S494A=Yes S9QTA=Yes |
|||||||||
| 07 | Heating element backrest | 2 | 52105A356F7 | Shop at ECS Tuning | ||||||
| For vehicles with Seat heating driver/passenger and Preparation seat heating |
S494A=Yes S9QTA=No |
|||||||||
| 07 | Heating element backrest | 2 | 52105A356F7 | Shop at ECS Tuning | ||||||
| For vehicles with Seat heating driver/passenger and Preparation seat heating |
S494A=No S9QTA=Yes |
|||||||||
| 07 | Heating element backrest | 2 | 52105A356F7 | NoS | Shop at ECS Tuning | |||||
| 08 | Wire-strap | L=1800MM | 2 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 09 | Clamp | 1,6X20X10,1 | 20 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
