Seat, front, head restraint for BMW 2 Series F74 Gran Coupé 216 (2025)

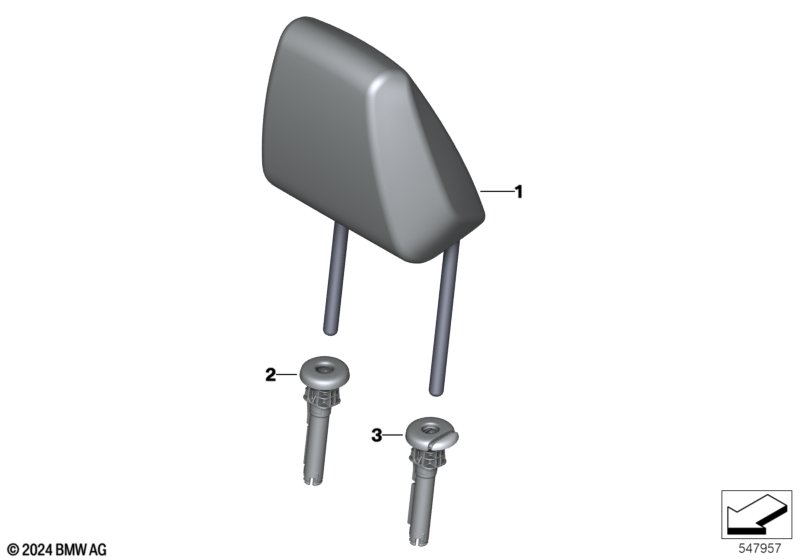

This Seat, front, head restraint technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 216. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth Arcturus/anthracite |
BLAT=Yes |
|||||||||
| 01 | Head rest cloth | ANTHRAZIT | 2 | 52105A40705 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports seats and VEGANZA PERFORATED BLACK |
S711A=No KUSW=Yes |
|||||||||
| 01 | Head restraint artificial leather | SCHWARZ | 2 | 52105A59D75 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports seats and VEGANZA PERFORATED OYSTER |
S711A=No KUCX=Yes |
|||||||||
| 01 | Head restraint artificial leather | OYSTER | 2 | 52105A59D78 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports seats and Sensatec perforated/Coral red/black |
S711A=No KUKP=Yes |
|||||||||
| 01 | Head restraint artificial leather | ROT/SCHWARZ | 2 | 52105A59D76 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports seats and VEGANZA PERFORATED MOCHA |
S711A=No KUMY=Yes |
|||||||||
| 01 | Head restraint artificial leather | MOKKA | 2 | 52105A59D77 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports seats and Alcan./Veganza-comb.Blk./Contr.st.Blue |
S711A=No KTNL=Yes |
|||||||||
| 01 | Head restraint artificial leather | ROT/SCHWARZ | 2 | 52105A59D79 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sports seat and Econeer Bicolor Blue |
S481A=Yes ECI2=Yes |
|||||||||
| 01 | Head rest cloth | BLAU | 2 | 52105B43EC4 | NoS | Shop at ECS Tuning | ||||
| 02 | Guide, headrest | 2 | 52109493489 | NoS | Shop at ECS Tuning | |||||
| 03 | Guide, headrest, lockable | 2 | 52109493482 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
