Seat, front, backrest frame for BMW 2 Series F74 Gran Coupé 216 (2025)

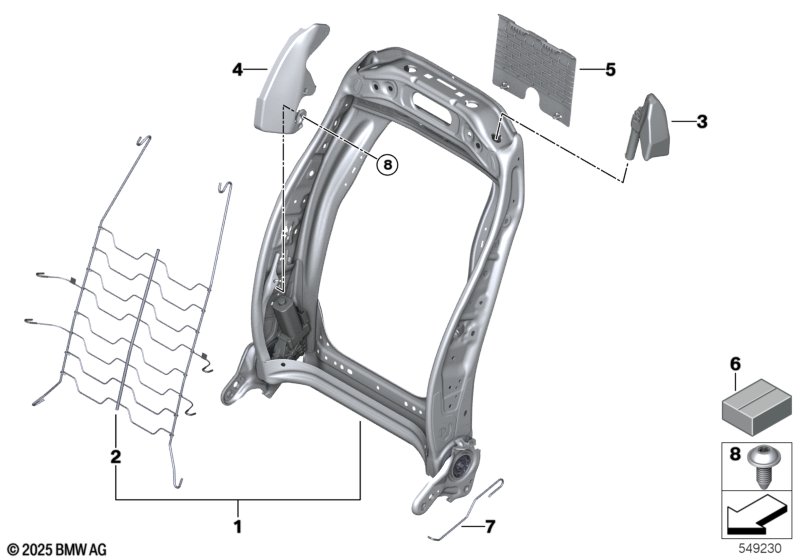

This Seat, front, backrest frame technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 216. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 01 | Backrest frame electrical left | 1 | 52107911657 | NoS | Shop at ECS Tuning | |||||
| 01 | Backrest frame electrical right | 1 | 52107911660 | NoS | Shop at ECS Tuning | |||||
| 02 | Spring mat backrest frame | 2 | 52105B3C511 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Sports seat and M Sports seats |
S481A=Yes S711A=No |
|||||||||
| 03 | Support, backrest, left | 2 | 52109872505 | NoS | Shop at ECS Tuning | |||||
| 03 | Support, backrest, right | 2 | 52109872506 | NoS | Shop at ECS Tuning | |||||
| For vehicles with M Sports seats |
S711A=Yes |
|||||||||
| 04 | Support backrest side bolster left | 2 | 52109484459 | Shop at ECS Tuning | ||||||
| 04 | Support backrest side bolster right | 2 | 52109484460 | Shop at ECS Tuning | ||||||
| For vehicles with Sports seat and M Sports seats |
S481A=Yes S711A=No |
|||||||||
| 04 | Support backrest side bolster left | 2 | 52109484459 | NoS | Shop at ECS Tuning | |||||
| 04 | Support backrest side bolster right | 2 | 52109484460 | NoS | Shop at ECS Tuning | |||||
| For vehicles with M Sports seats |
S711A=No |
|||||||||
| 05 | Underlay backrest | 2 | 52109493503 | NoS | Shop at ECS Tuning | |||||
| 06 | Main small parts kit | 1 | 52109493522 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=No |
|||||||||
| 07 | Coupling rod unlocking left | 1 | 52105A15E37 | NoS | Shop at ECS Tuning | |||||
| 07 | Coupling rod unlocking right | 1 | 52105A15E38 | NoS | Shop at ECS Tuning | |||||
| 08 | Fillister head screw with collar | 8 | 07147187828 | $0.38 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
