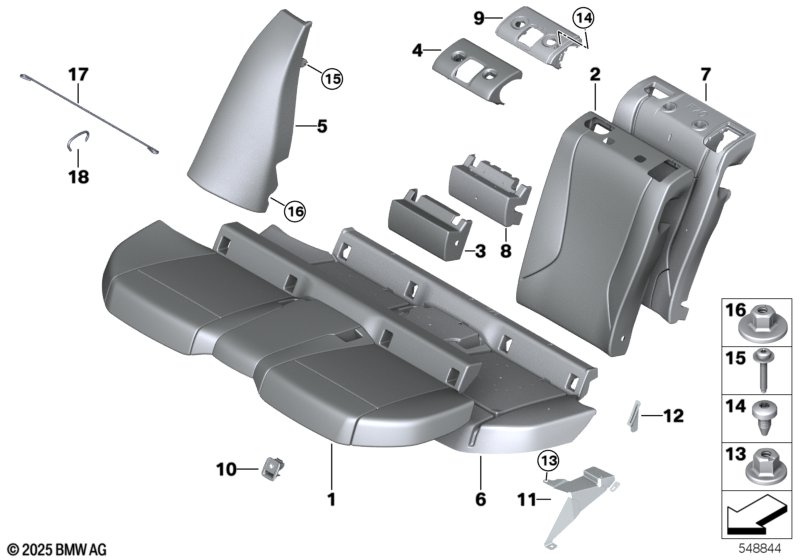

Seat, rear, uphlstry/cover, load-through for BMW 2 Series F74 Gran Coupé 220 (2025)
This Seat, rear, uphlstry/cover, load-through technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 220. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth Arcturus/anthracite |
BLAT=Yes |
|||||||||
| 01 | Seat cover cloth | ANTHRAZIT | 1 | 52205A86FC6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED BLACK |
KUSW=Yes |
|||||||||
| 01 | Seat cover vinyl | SCHWARZ | 1 | 52205A87000 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED OYSTER |
KUCX=Yes |
|||||||||
| 01 | Seat cover vinyl | OYSTER | 1 | 52205A87003 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alcan./Veganza-comb.Blk./Contr.st.Blue |
KTNL=Yes |
|||||||||
| 01 | Seat cover vinyl | SCHWARZ | 1 | 52205A87054 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Coral red/black |
KUKP=Yes |
|||||||||
| 01 | Seat cover vinyl | ROT/SCHWARZ | 1 | 52205A87001 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Econeer Bicolor Blue |
ECI2=Yes |
|||||||||
| 01 | Seat cover cloth | BLAU | 1 | 52205B43AB5 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED MOCHA |
KUMY=Yes |
|||||||||
| 01 | Seat cover vinyl | MOKKA | 1 | 52205A87002 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Arcturus/anthracite |
BLAT=Yes |
|||||||||
| 02 | Cover backrest cloth left | ANTHRAZIT | 1 | 52205A87005 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest cloth right | ANTHRAZIT | 1 | 52205A87006 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED BLACK |
KUSW=Yes |
|||||||||
| 02 | Cover backrest vinyl left | SCHWARZ | 1 | 52205A87011 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest vinyl right | SCHWARZ | 1 | 52205A87012 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED OYSTER |
KUCX=Yes |
|||||||||
| 02 | Cover backrest vinyl left | OYSTER | 1 | 52205A87017 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest vinyl right | OYSTER | 1 | 52205A87018 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alcan./Veganza-comb.Blk./Contr.st.Blue |
KTNL=Yes |
|||||||||
| 02 | Cover backrest vinyl left | SCHWARZ | 1 | 52205A87055 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest vinyl right | SCHWARZ | 1 | 52205A87056 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Coral red/black |
KUKP=Yes |
|||||||||
| 02 | Cover backrest vinyl left | ROT/SCHWARZ | 1 | 52205A87013 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest vinyl right | ROT/SCHWARZ | 1 | 52205A87014 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Econeer Bicolor Blue |
ECI2=Yes |
|||||||||
| 02 | Cover backrest cloth left | BLAU | 1 | 52205B43AA9 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest cloth right | BLAU | 1 | 52205B43AB0 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED MOCHA |
KUMY=Yes |
|||||||||
| 02 | Cover backrest vinyl left | MOKKA | 1 | 52205A87015 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover backrest vinyl right | MOKKA | 1 | 52205A87016 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Arcturus/anthracite |
BLAT=Yes |
|||||||||
| 03 | Cover backrest cloth center bottom | ANTHRAZIT | 1 | 52205A86DB3 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED BLACK |
KUSW=Yes |
|||||||||
| 03 | Cover, backrest, vinyl, center lower | SCHWARZ | 1 | 52205A86E34 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED OYSTER |
KUCX=Yes |
|||||||||
| 03 | Cover, backrest, vinyl, center lower | OYSTER | 1 | 52205A86E64 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alcan./Veganza-comb.Blk./Contr.st.Blue |
KTNL=Yes |
|||||||||
| 03 | Cover, backrest, vinyl, center lower | SCHWARZ | 1 | 52205A86E45 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Coral red/black |
KUKP=Yes |
|||||||||
| 03 | Cover, backrest, vinyl, center lower | ROT/SCHWARZ | 1 | 52205A86E39 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Econeer Bicolor Blue |
ECI2=Yes |
|||||||||
| 03 | Cover backrest cloth center bottom | BLAU | 1 | 52205B43AB4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED MOCHA |
KUMY=Yes |
|||||||||
| 03 | Cover, backrest, vinyl, center lower | MOKKA | 1 | 52205A86E40 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Arcturus/anthracite |
BLAT=Yes |
|||||||||
| 04 | Cover backrest cloth center top | ANTHRAZIT | 1 | 52205A87059 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED BLACK |
KUSW=Yes |
|||||||||
| 04 | Cover, backrest, vinyl, center upper | SCHWARZ | 1 | 52205A87079 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED OYSTER |
KUCX=Yes |
|||||||||
| 04 | Cover, backrest, vinyl, center upper | OYSTER | 1 | 52205A87091 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alcan./Veganza-comb.Blk./Contr.st.Blue |
KTNL=Yes |
|||||||||
| 04 | Cover, backrest, vinyl, center upper | SCHWARZ | 1 | 52205A87090 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec perforated/Coral red/black |
KUKP=Yes |
|||||||||
| 04 | Cover, backrest, vinyl, center upper | ROT/SCHWARZ | 1 | 52205A87080 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Econeer Bicolor Blue |
ECI2=Yes |
|||||||||
| 04 | Cover backrest cloth center top | BLAU | 1 | 52205B43AB3 | NoS | Shop at ECS Tuning | ||||
| For vehicles with VEGANZA PERFORATED MOCHA |
KUMY=Yes |
|||||||||
| 04 | Cover, backrest, vinyl, center upper | MOKKA | 1 | 52205A87089 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and VEGANZA PERFORATED OYSTER |
S230A=No KUCX=Yes |
|||||||||
| 05 | Side section, imitation leather, left | OYSTER | 1 | 52205A842A3 | NoS | Shop at ECS Tuning | ||||
| 05 | Side section, imitation leather, right | OYSTER | 1 | 52205A842A4 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Cloth Arcturus/anthracite |
S230A=No BLAT=Yes |
|||||||||
| 05 | Side finisher cloth, left | ANTHRAZIT | 1 | 52205A83F13 | NoS | Shop at ECS Tuning | ||||
| 05 | Side finisher cloth, right | ANTHRAZIT | 1 | 52205A83F14 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and VEGANZA PERFORATED MOCHA |
S230A=Yes KUMY=Yes |
|||||||||
| 05 | Side section, imitation leather, left | MOKKA | 1 | 52205A84297 | NoS | Shop at ECS Tuning | ||||
| 05 | Side section, imitation leather, right | MOKKA | 1 | 52205A84298 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and VEGANZA PERFORATED OYSTER |
S230A=Yes KUCX=Yes |
|||||||||
| 05 | Side section, imitation leather, left | OYSTER | 1 | 52205A84295 | NoS | Shop at ECS Tuning | ||||
| 05 | Side section, imitation leather, right | OYSTER | 1 | 52205A84296 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and VEGANZA PERFORATED MOCHA |
S230A=No KUMY=Yes |
|||||||||
| 05 | Side section, imitation leather, left | MOKKA | 1 | 52205A842A5 | NoS | Shop at ECS Tuning | ||||
| 05 | Side section, imitation leather, right | MOKKA | 1 | 52205A842A6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Econeer Bicolor Blue |
S230A=No ECI2=Yes |
|||||||||
| 05 | Side finisher cloth, left | BLAU | 1 | 52205B44C51 | NoS | Shop at ECS Tuning | ||||
| 05 | Side finisher cloth, right | BLAU | 1 | 52205B44C52 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Econeer Bicolor Blue |
S230A=Yes ECI2=Yes |
|||||||||
| 05 | Side finisher cloth, left | BLAU | 1 | 52205B44C55 | NoS | Shop at ECS Tuning | ||||
| 05 | Side finisher cloth, right | BLAU | 1 | 52205B44C56 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Cloth Arcturus/anthracite |
S230A=Yes BLAT=Yes |
|||||||||
| 05 | Side finisher cloth, left | ANTHRAZIT | 1 | 52205A83F15 | NoS | Shop at ECS Tuning | ||||
| 05 | Side finisher cloth, right | ANTHRAZIT | 1 | 52205A83F16 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Alcan./Veganza-comb.Blk./Contr.st.Blue or Sensatec perforated/Coral red/black or VEGANZA PERFORATED BLACK |
S230A=Yes KTNL=Yes KUKP=Yes KUSW=Yes |
|||||||||
| 05 | Side section, imitation leather, left | SCHWARZ | 1 | 52205A842A1 | NoS | Shop at ECS Tuning | ||||
| 05 | Side section, imitation leather, right | SCHWARZ | 1 | 52205A842A2 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific and Alcan./Veganza-comb.Blk./Contr.st.Blue or Sensatec perforated/Coral red/black or VEGANZA PERFORATED BLACK |
S230A=No KTNL=Yes KUKP=Yes KUSW=Yes |
|||||||||
| 05 | Side section, imitation leather, left | SCHWARZ | 1 | 52205A842A7 | NoS | Shop at ECS Tuning | ||||
| 05 | Side section, imitation leather, right | SCHWARZ | 1 | 52205A842A8 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific |
S230A=Yes |
|||||||||
| 06 | Foam section, seat | 1 | 52205B47A57 | NoS | Shop at ECS Tuning | |||||
| 07 | Foam padding, backrest, left | 1 | 52205A30A05 | NoS | Shop at ECS Tuning | |||||
| 07 | Foam padding, backrest, right | 1 | 52205A30A06 | NoS | Shop at ECS Tuning | |||||
| 08 | Foam insert, armrest, center lower | 1 | 52205A30A09 | NoS | Shop at ECS Tuning | |||||
| 09 | Upholstery part, upper | 1 | 52207456101 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific |
S230A=Yes |
|||||||||
| 10 | Trim, I size | SCHWARZ | 4 | 52209495013 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific |
S230A=No |
|||||||||
| 10 | Cover isofix | SCHWARZ | 4 | 52209495014 | NoS | Shop at ECS Tuning | ||||
| 11 | Mounting plate,left | 1 | 52207408423 | NoS | Shop at ECS Tuning | |||||
| 11 | Mounting plate, right | 1 | 52207408424 | NoS | Shop at ECS Tuning | |||||
| 12 | Support left | 1 | 52209479723 | NoS | Shop at ECS Tuning | |||||
| 12 | Support right | 1 | 52209479724 | NoS | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and Extra package, EU-specific |
L802A=Yes S230A=Yes |
|||||||||
| 13 | Plastic nut for coarse threaded pin | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 14 | Fillister head screw | M5X10-ZNNID SW | 2 | 07146777838 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Countersunk screw | M6X35 | 2 | 07119908719 | Shop at ECS Tuning | |||||
| 16 | Plastic capnut with washer | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 17 | Wire-strap | L=1800MM | 2 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 18 | Clamp | 1,6X20X10,1 | 20 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
