Sliding lifting roof frame for BMW 8 Series E31 850Ci (1992)

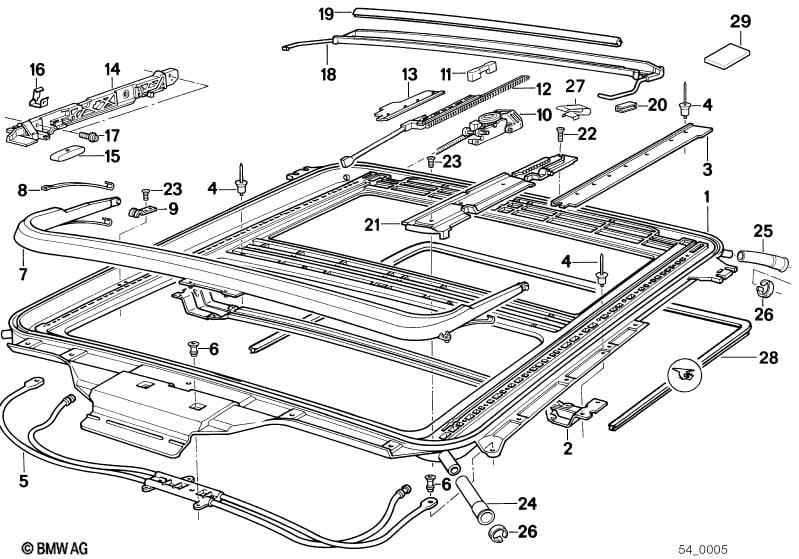

This Sliding lifting roof frame technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Frame sliding-lifting roof complete | 1 | 54131940957 | $1571.98 | Shop at ECS Tuning | |||||
| 02 | Reinforcement | 1 | 54138108343 | ENDED | Shop at ECS Tuning | |||||
| 03 | Slide rail left | 1 | 54121940961 | $8.48 | Shop at ECS Tuning | |||||
| 03 | Slide rail right | 1 | 54121940962 | $8.48 | Shop at ECS Tuning | |||||
| 04 | Rivet | X | 54121963849 | $0.44 | Shop at ECS Tuning | |||||
| 05 | Guide tube | 1 | 54121940960 | $215.97 | ENDED | Shop at ECS Tuning | ||||
| 06 | Blind rivet | 3,2 2A | 4 | 07129948747 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Slipstream deflector | 1 | 54138108205 | $130.92 | ENDED | Shop at ECS Tuning | ||||
| 08 | Spring | 2 | 54138108206 | $3.88 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bearing cover | 2 | 54138108208 | $1.69 | Shop at ECS Tuning | |||||
| 10 | Guide left | 1 | 54121940975 | $107.60 | Shop at ECS Tuning | |||||
| 10 | Guide right | 1 | 54121940976 | $107.60 | Shop at ECS Tuning | |||||
| 11 | Sliding jaw | 2 | 54138108861 | $8.26 | Shop at ECS Tuning | |||||
| 12 | Tooth rack left | 1 | 54138108869 | $12.20 | Shop at ECS Tuning | |||||
| 12 | Tooth rack right | 1 | 54138108870 | $12.20 | Shop at ECS Tuning | |||||
| 13 | Covering left | 1 | 54138108863 | $2.77 | Shop at ECS Tuning | |||||
| 13 | Covering right | 1 | 54138108864 | $2.77 | Shop at ECS Tuning | |||||
| 14 | Left gate | 1 | 54121940965 | $41.74 | Shop at ECS Tuning | |||||
| 14 | Right gate | 1 | 54121940966 | $41.74 | Shop at ECS Tuning | |||||
| 15 | Sliding jaw | 2 | 54128113222 | $2.86 | Shop at ECS Tuning | |||||
| 16 | Clamp | 2 | 54121938391 | $0.61 | Shop at ECS Tuning | |||||
| 17 | Torx-bolt with washer | ISA M5X10 | 4 | 54121907282 | $0.89 | ENDED | Shop at ECS Tuning | |||
| 18 | Rain gutter | 1 | 54138108335 | $43.72 | Shop at ECS Tuning | |||||
| 19 | Gasket | 1 | 54128108332 | $10.20 | Shop at ECS Tuning | |||||
| 20 | Sliding jaw | 2 | 54128105582 | $2.95 | Shop at ECS Tuning | |||||
| 21 | Slide rail left | 1 | 54138108887 | $27.49 | Shop at ECS Tuning | |||||
| 21 | Slide rail right | 1 | 54138108888 | $27.49 | Shop at ECS Tuning | |||||
| 22 | Torx bolt | ISA M4X14 | 4 | 54128108881 | $1.28 | Shop at ECS Tuning | ||||
| 23 | Torx bolt | ISA M4X8 | X | 54121963850 | $0.61 | Shop at ECS Tuning | ||||
| 24 | Water hose | 1700MM | 2 | 51731938347 | $6.89 | Shop at ECS Tuning | ||||
| 25 | Water hose | 1700MM | 2 | 51731938347 | $6.89 | Shop at ECS Tuning | ||||
| 26 | Hose clamp | L15-19 | 4 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 27 | Clamp | 2 | 54128108209 | $2.42 | Shop at ECS Tuning | |||||
| 28 | Sliding lifting roof frame gasket | L=3776MM | 1 | 54121938369 | $20.05 | Shop at ECS Tuning | ||||
| 29 | Set felt strip self-adhesive | X | 05/1999 | 51452353024 | Shop at ECS Tuning |
