Slid.lift. roof-cover/ceiling frame for BMW 6 Series E24 635CSi (1989)

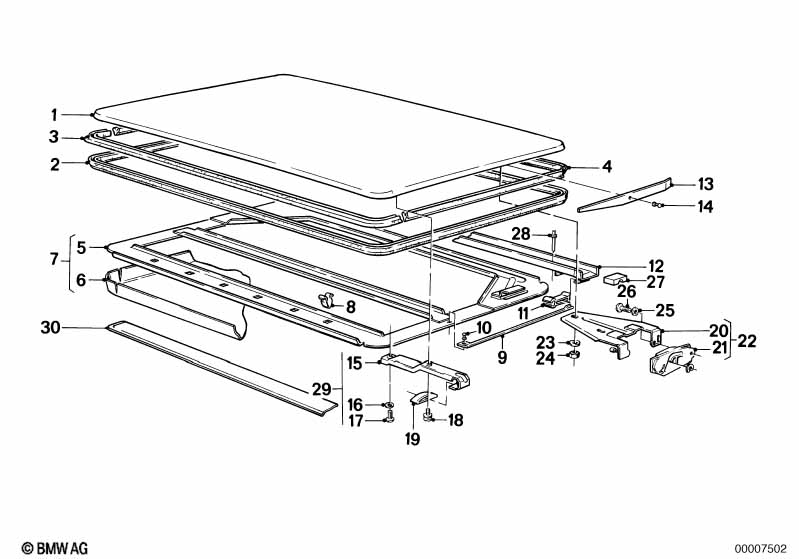

This Slid.lift. roof-cover/ceiling frame technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 09/1986 | 54121961009 | $265.55 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover | 1 | 09/1986 | 54121961009 | $265.55 | ENDED | Shop at ECS Tuning | |||
| 02 | sealing | 2370MM | 1 | 12/1986 | 54121972055 | $74.60 | Shop at ECS Tuning | |||
| 02 | sealing | 2370MM | 1 | 12/1986 | 54121972055 | $74.60 | Shop at ECS Tuning | |||
| 05 | Ceiling frame | 1 | 54121839551 | $45.98 | Shop at ECS Tuning | |||||
| 07 | Ceiling frame covered velours | BEIGE | 1 | 54121925986 | $122.76 | ENDED | Shop at ECS Tuning | |||
| 07 | Ceiling frame covered velours | GRAU | 1 | 54121925987 | $201.81 | ENDED | Shop at ECS Tuning | |||
| 07 | Ceiling frame covered cloth | BEIGE | 1 | 05/1982 | 54121909664 | $151.27 | ENDED | Shop at ECS Tuning | ||
| 07 | Ceiling frame covered cloth | BEIGE | 1 | 05/1982 | 54121909664 | $151.27 | ENDED | Shop at ECS Tuning | ||
| 07 | Ceiling frame covered cloth | GRAU | 1 | 05/1982 | 54121909665 | $151.27 | ENDED | Shop at ECS Tuning | ||
| 07 | Ceiling frame covered cloth | GRAU | 1 | 05/1982 | 54121909665 | $151.27 | ENDED | Shop at ECS Tuning | ||
| For vehicles with High Line |
=Yes |
|||||||||
| 07 | Ceiling frame covered | LOTOSWEISS | 1 | 06/1987 | 54121965792 | $126.87 | Shop at ECS Tuning | |||
| 07 | Ceiling frame covered | LOTOSWEISS | 1 | 06/1987 | 54121965792 | $126.87 | Shop at ECS Tuning | |||
| 07 | Ceiling frame covered | NATUR | 1 | 06/1987 | 54121965794 | $126.87 | Shop at ECS Tuning | |||
| 07 | Ceiling frame covered | NATUR | 1 | 06/1987 | 54121965794 | $126.87 | Shop at ECS Tuning | |||
| 07 | Ceiling frame covered | SILBER | 1 | 06/1987 | 54121965796 | $97.49 | ENDED | Shop at ECS Tuning | ||
| 07 | Ceiling frame covered | SILBER | 1 | 06/1987 | 54121965796 | $97.49 | ENDED | Shop at ECS Tuning | ||
| 07 | Ceiling frame covered | SCHWARZ | 1 | 06/1987 | 54128106824 | ENDED | Shop at ECS Tuning | |||
| 07 | Ceiling frame covered | SCHWARZ | 1 | 06/1987 | 54128106824 | ENDED | Shop at ECS Tuning | |||
| 08 | Clamp | 6 | 54121848635 | $4.55 | Shop at ECS Tuning | |||||
| 09 | Connection piece left | 1 | 54121857141 | $7.15 | Shop at ECS Tuning | |||||
| 09 | Connection piece right | 1 | 54121857142 | $7.15 | Shop at ECS Tuning | |||||
| 10 | Rivet | A3X0,5X4-ST | 2 | 07119949613 | $0.08 | ENDED | Shop at ECS Tuning | |||
| 10 | Rivet | A3X0,5X6-ST | 2 | 07119949614 | $0.10 | ENDED | Shop at ECS Tuning | |||
| 11 | Sliding jaw | 2 | 54121933905 | $2.30 | Shop at ECS Tuning | |||||
| 12 | Rain gutter | 1 | 54121839558 | $27.27 | ENDED | Shop at ECS Tuning | ||||
| 13 | Covering left | 1 | 54121846107 | $5.28 | Shop at ECS Tuning | |||||
| 13 | Covering right | 1 | 54121846108 | ENDED | Shop at ECS Tuning | |||||
| 14 | Blind rivet | 3,2 2A | 2 | 07129948747 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Sliding bar | 2 | 54121837075 | $45.13 | ENDED | Shop at ECS Tuning | ||||
| 16 | Wave washer | B5 | 4 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Fillister head screw | M5X12-ZN | 2 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 18 | Adjuster | 2 | 54121837077 | $0.90 | ENDED | Shop at ECS Tuning | ||||
| 19 | Sliding jaw | 2 | 54121933550 | $2.40 | Shop at ECS Tuning | |||||
| 21 | Left gate | 1 | 54121843429 | $2.60 | ENDED | Shop at ECS Tuning | ||||
| 21 | Right gate | 1 | 54121843430 | $2.60 | ENDED | Shop at ECS Tuning | ||||
| 22 | Left gate bracket | 1 | 54121912505 | $19.12 | ENDED | Shop at ECS Tuning | ||||
| 22 | Right gate bracket | 1 | 54121912506 | $19.12 | ENDED | Shop at ECS Tuning | ||||
| 23 | Wave washer | B5 | 6 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 24 | Hex nut | M5-8-ZNNIV SI | 6 | 07119905729 | Shop at ECS Tuning | |||||
| 25 | Wave washer | B5 | 4 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 26 | Fillister head screw | M5X8 | 4 | 07119907623 | $0.25 | Shop at ECS Tuning | ||||
| 27 | Supporting bracket | 2 | 54121934933 | $0.35 | Shop at ECS Tuning | |||||
| 28 | Rivet | A3X0,5X4-ST | 2 | 07119949613 | $0.08 | ENDED | Shop at ECS Tuning | |||
| 29 | Sliding bar | 2 | 54121837075 | $45.13 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
