Sliding lifting roof-manual operation for BMW 3 Series E30 320i (1991)

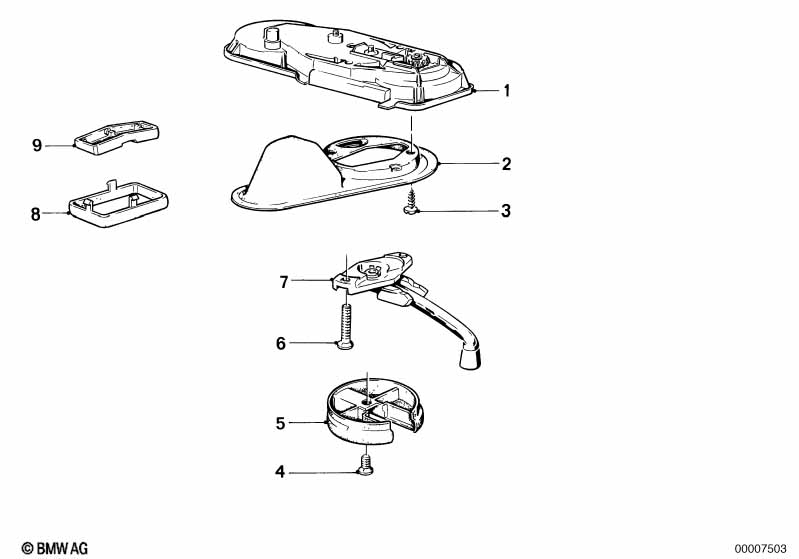

This Sliding lifting roof-manual operation technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Manual sliding-lifting roof transmission | 1 | 54121857958 | $98.92 | Shop at ECS Tuning | |||||
| 02 | Recessed handle | ANTHRAZIT | 1 | 54121867575 | $5.20 | Shop at ECS Tuning | ||||
| 03 | Recessed oval head sheet-metal screw | ST3,9X9,5 | 2 | 07119902454 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Csk.fillister head srew | M4X6-SW | 1 | 07119928563 | $0.82 | Shop at ECS Tuning | ||||
| 05 | Trim ring | ANTHRAZIT | 1 | 54121867887 | $2.72 | Shop at ECS Tuning | ||||
| 06 | Countersunk head screw | M5X25 | 2 | 54121932688 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 07 | Crank | ANTHRAZIT | 1 | 54121859594 | $42.60 | Shop at ECS Tuning | ||||
| 09 | Switch illuminated | 1 | 09/1986 | 61311381205 | $45.75 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
