Trim sliding lifting roof for BMW 3 Series E21 320i (1978)

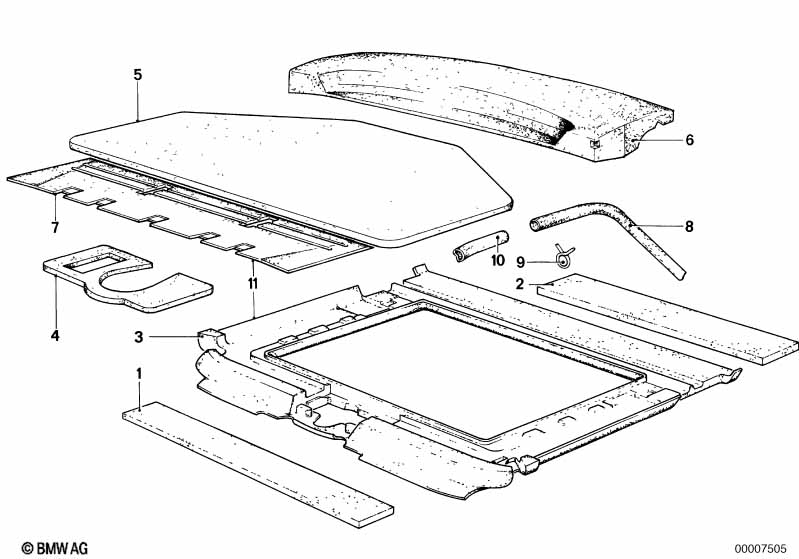

This Trim sliding lifting roof technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulation | 1 | 09/1982 | 51481847794 | ENDED | Shop at ECS Tuning | ||||
| 02 | Sound insulating center | 1 | 09/1982 | 51481847792 | $4.80 | ENDED | Shop at ECS Tuning | |||
| 03 | Trim sliding lifting roof | 1 | 54121848677 | ENDED | Shop at ECS Tuning | |||||
| 04 | Upholstery cover gearbox | 1 | 09/1976 | 54121860029 | $1.80 | ENDED | Shop at ECS Tuning | |||
| 05 | Sound insulating cover | 1 | 51481847007 | $3.40 | ENDED | Shop at ECS Tuning | ||||
| 06 | Trim sliding lifting roof | 1 | 09/1982 | 54121850096 | $39.90 | ENDED | Shop at ECS Tuning | |||
| 08 | Water hose | 1690MM | X | 51731947958 | $7.41 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | 4 | 54129434149 | $0.45 | ENDED | Shop at ECS Tuning | ||||
| 10 | Water hose | 1690MM | X | 51731947958 | $7.41 | Shop at ECS Tuning | ||||
| 11 | Trim sliding lifting roof | 1 | 54121924518 | $67.92 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Trim sliding lifting roof?
- This technical diagram illustrates the Trim sliding lifting roof within the Sliding Roof / Folding Top group for the 3 Series E21 320i produced during 1978. It provides a detailed exploded view of the components, identifying key parts such as the Sound insulation (Part #51481847794).
- Which models use the hardware listed in this Trim sliding lifting roof?
- The hardware and components featured in the Trim sliding lifting roof are specific to the 3 Series E21 320i produced during 1978. These technical specifications ensure that parts like the Sound insulation (51481847794) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim sliding lifting roof assembly?
- Each item in the Trim sliding lifting roof corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Sound insulation by locating its position on the schematic, which then links to the official BMW part number 51481847794 for the Sliding Roof / Folding Top section.
