Single parts for sliding lifting roof for BMW 7 Series E23 728 (1978)

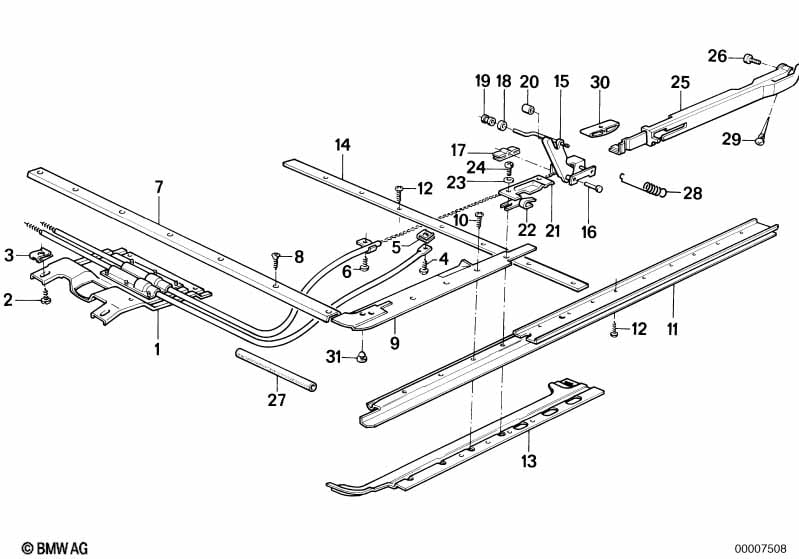

This Single parts for sliding lifting roof technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mounting plate electr.control | 1 | 08/1979 | 54121858747 | ENDED | Shop at ECS Tuning | ||||
| 01 | Mounting plate manual control | 1 | 54121857967 | $77.55 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex head screw | ST4,8X9,5-C-ZNS | X | 07119901554 | $0.37 | ENDED | Shop at ECS Tuning | |||
| 02 | Fillister head self-tapping screw | X | 54121966865 | $0.08 | ENDED | Shop at ECS Tuning | ||||
| 03 | Plug-in nut | M5 | X | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST4,8X9,5-C-ZNS | 1 | 07119901554 | $0.37 | ENDED | Shop at ECS Tuning | |||
| 05 | Body nut | ST4,2-1-ZNS3 | X | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Sheet metal screw | 3,5X9,5 | X | 07119904455 | $2.45 | Shop at ECS Tuning | ||||
| 07 | Cover rail front | 1 | 01/1982 | 54121849766 | $13.73 | ENDED | Shop at ECS Tuning | |||
| 08 | Recessed oval head sheet-metal screw | B3,9X22 | 7 | 01/1982 | 07119902588 | ENDED | Shop at ECS Tuning | |||
| 09 | Slide rail left | 1 | 01/1982 | 54121852705 | $13.55 | Shop at ECS Tuning | ||||
| 09 | Slide rail right | 1 | 01/1982 | 54121852706 | $13.55 | Shop at ECS Tuning | ||||
| For vehicles with Oglass slid.lifting roof |
=Yes |
|||||||||
| 09 | Slide rail left | 1 | 54121907251 | $8.48 | Shop at ECS Tuning | |||||
| 09 | Slide rail right | 1 | 54121907252 | $8.48 | ENDED | Shop at ECS Tuning | ||||
| 10 | Recessed oval head sheet-metal screw | ST3,9X9,5 | X | 12/1982 | 07119902454 | $0.18 | Shop at ECS Tuning | |||
| 11 | Guide rail left | 1 | 54121843485 | $52.34 | Shop at ECS Tuning | |||||
| 11 | Guide rail right | 1 | 54121843486 | $52.34 | Shop at ECS Tuning | |||||
| 12 | Recessed oval head sheet-metal screw | ST3,9X9,5 | 8 | 12/1982 | 07119902454 | $0.18 | Shop at ECS Tuning | |||
| 13 | Slide rail left | 1 | 54121843479 | $8.90 | Shop at ECS Tuning | |||||
| 13 | Slide rail right | 1 | 54121843480 | $8.90 | Shop at ECS Tuning | |||||
| 14 | Terminal strip | 1 | 54121852708 | $9.71 | Shop at ECS Tuning | |||||
| 15 | Drive cable-pair | 1 | 12/1982 | 54121857952 | $139.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Oglass slid.lifting roof |
=Yes |
|||||||||
| 15 | Drive cable left | 1 | 01/1985 | 54121907257 | $61.23 | ENDED | Shop at ECS Tuning | |||
| 15 | Drive cable right | 1 | 01/1985 | 54121907258 | $61.23 | ENDED | Shop at ECS Tuning | |||
| 16 | Pin | 4 | 12/1982 | 54121843481 | $7.90 | Shop at ECS Tuning | ||||
| 17 | Sliding piece | 2 | 01/1985 | 54121843424 | $1.08 | Shop at ECS Tuning | ||||
| 18 | Roll pin | 2 | 54121849774 | $0.92 | Shop at ECS Tuning | |||||
| 19 | Bush | 2 | 54121843484 | $0.43 | ENDED | Shop at ECS Tuning | ||||
| 20 | Roller | 2 | 01/1985 | 54121843493 | $0.37 | ENDED | Shop at ECS Tuning | |||
| 21 | Pilot left | 1 | 01/1982 | 54121852711 | $12.63 | Shop at ECS Tuning | ||||
| 21 | Pilot right | 1 | 01/1982 | 54121852712 | $12.63 | ENDED | Shop at ECS Tuning | |||
| 22 | Guide plate left | 1 | 01/1982 | 54121857961 | $0.85 | ENDED | Shop at ECS Tuning | |||
| 22 | Guide plate right | 1 | 01/1982 | 54121857962 | $0.85 | ENDED | Shop at ECS Tuning | |||
| 23 | Wave washer | B4 | 4 | 12/1982 | 07119932033 | $0.09 | Shop at ECS Tuning | |||
| 27 | Hose | L=335MM | X | 54121904824 | $8.07 | Shop at ECS Tuning | ||||
| 28 | Spring | 2 | 01/1985 | 54121917722 | $5.20 | ENDED | Shop at ECS Tuning | |||
| 29 | Rubber buffer | 2 | 54121926664 | $0.49 | Shop at ECS Tuning | |||||
| 30 | Sliding jaw | 2 | 54121933550 | $2.40 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
