Electr.sliding lifting roof operation for BMW 5 Series E12 525 (1976)

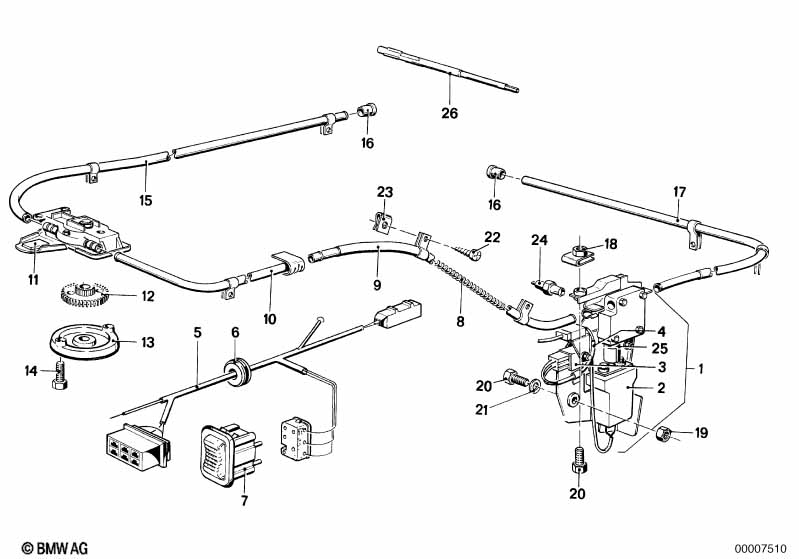

This Electr.sliding lifting roof operation technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.drive sliding lifting roof | 1 | 08/1976 | 08/1979 | 54121857966 | $613.80 | ENDED | Shop at ECS Tuning | ||
| 02 | Electr.drive | 1 | 08/1976 | 08/1979 | 54131362601 | ENDED | Shop at ECS Tuning | |||
| 03 | Relay | 1 | 08/1976 | 08/1979 | 61311362386 | $47.14 | ENDED | Shop at ECS Tuning | ||
| 04 | Wiring set | 1 | 08/1976 | 08/1979 | 61121362275 | ENDED | Shop at ECS Tuning | |||
| 05 | Wiring set | 1 | 08/1976 | 08/1979 | 61121362591 | $20.86 | ENDED | Shop at ECS Tuning | ||
| 06 | Rubber grommet | 1 | 08/1976 | 08/1979 | 61131362913 | ENDED | Shop at ECS Tuning | |||
| 07 | Rocker switch | 1 | 08/1976 | 08/1979 | 61311356006 | $47.30 | ENDED | Shop at ECS Tuning | ||
| 08 | Drive cable | 1 | 08/1976 | 08/1979 | 54121857873 | $57.33 | ENDED | Shop at ECS Tuning | ||
| 09 | Guide tube rear | 1 | 08/1976 | 03/1979 | 54121857932 | ENDED | Shop at ECS Tuning | |||
| 10 | Guide tube front | 1 | 08/1976 | 03/1979 | 54121857929 | $29.30 | ENDED | Shop at ECS Tuning | ||
| 11 | Electr.sliding-lifting roof transmission | 1 | 08/1976 | 08/1979 | 54121857904 | $131.69 | ENDED | Shop at ECS Tuning | ||
| 12 | Pinion | 1 | 08/1976 | 08/1979 | 54121857908 | $7.37 | ENDED | Shop at ECS Tuning | ||
| 13 | Base plate | 1 | 08/1976 | 08/1979 | 54121857909 | $2.84 | ENDED | Shop at ECS Tuning | ||
| 14 | Countersunk head screw | M5X25 | 2 | 08/1976 | 08/1979 | 54121932688 | $0.35 | ENDED | Shop at ECS Tuning | |
| 15 | Outlet tube | 1 | 08/1976 | 08/1979 | 54121857914 | ENDED | Shop at ECS Tuning | |||
| 16 | Protection cap | 2 | 08/1976 | 08/1979 | 54121857927 | ENDED | Shop at ECS Tuning | |||
| 17 | Outlet tube | 1 | 08/1976 | 08/1979 | 54121857911 | $102.95 | ENDED | Shop at ECS Tuning | ||
| 18 | Nut holder | 1 | 08/1976 | 08/1979 | 51161813920 | $1.45 | ENDED | Shop at ECS Tuning | ||
| 19 | Self-locking hex nut | M6 | 2 | 08/1976 | 08/1979 | 07147153450 | $0.47 | Shop at ECS Tuning | ||
| 20 | Hex bolt | M6X25 | 3 | 08/1976 | 08/1979 | 07119913483 | $0.36 | Shop at ECS Tuning | ||
| 20 | Hex bolt | M6X25 | 3 | 08/1976 | 08/1979 | 07119913589 | $0.62 | Shop at ECS Tuning | ||
| 21 | Washer | A6,4-200HV-ZNS3 | 3 | 08/1976 | 08/1979 | 07119903791 | $0.11 | Shop at ECS Tuning | ||
| 22 | Fillister head self-tapping screw | ST4,8X13 | 3 | 08/1976 | 08/1979 | 07119907786 | $0.11 | Shop at ECS Tuning | ||
| 23 | Body nut | ST4,2-1-ZNS3 | 3 | 08/1976 | 08/1979 | 07129904220 | $0.09 | Shop at ECS Tuning | ||
| 24 | Intermediate piece | 1 | 08/1976 | 08/1979 | 54121858785 | ENDED | Shop at ECS Tuning | |||
| 25 | Connection piece | 1 | 08/1976 | 08/1979 | 54121863119 | $12.17 | ENDED | Shop at ECS Tuning | ||
| 26 | Emergency tool electr.window | 1 | 08/1976 | 08/1979 | 71111150191 | $9.02 | Shop at ECS Tuning |
