Electr.sliding lifting roof operation for BMW 5 Series E12 518 (1981)

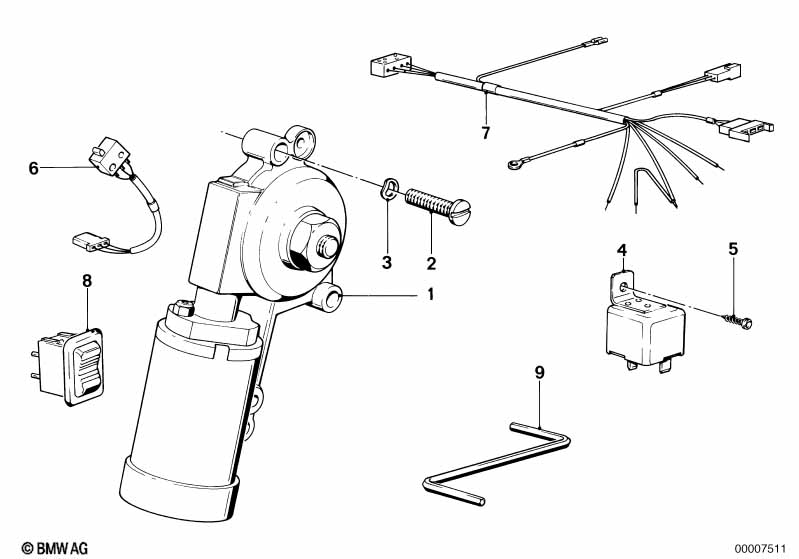

This Electr.sliding lifting roof operation technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.sliding-lifting roof transmission | 1 | 08/1979 | 54121874871 | $299.68 | ENDED | Shop at ECS Tuning | |||
| 02 | Fillister head screw | M5X25 | 3 | 08/1979 | 07119907634 | ENDED | Shop at ECS Tuning | |||
| 03 | Wave washer | B5 | 3 | 08/1979 | 07119932098 | $0.38 | Shop at ECS Tuning | |||
| 04 | Relay | 1 | 08/1979 | 61311362386 | $47.14 | ENDED | Shop at ECS Tuning | |||
| 05 | Sheet metal screw | ST4,8X9,5-C-H-Z | 1 | 08/1979 | 07119901200 | $0.17 | Shop at ECS Tuning | |||
| 06 | Microswitch | BLAU | 1 | 08/1979 | 61311369184 | $30.02 | ENDED | Shop at ECS Tuning | ||
| 06 | Microswitch | SCHWARZ | 1 | 08/1979 | 61319056544 | $18.02 | Shop at ECS Tuning | |||
| 07 | Wiring set electr.sliding lifting roof | 1 | 08/1979 | 61121372096 | $51.06 | ENDED | Shop at ECS Tuning | |||
| 08 | Switch | 1 | 08/1979 | 61311364169 | $58.71 | ENDED | Shop at ECS Tuning | |||
| 09 | Emergency tool elect.window/sliding roof | 1 | 08/1979 | 54127199322 | $9.78 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 518 Electr.sliding lifting roof operation?
- This technical diagram illustrates the Electr.sliding lifting roof operation within the Sliding Roof / Folding Top group for the 5 Series E12 518 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Electr.sliding-lifting roof transmission (Part #54121874871).
- Which models use the hardware listed in this Electr.sliding lifting roof operation?
- The hardware and components featured in the Electr.sliding lifting roof operation are specific to the 5 Series E12 518 produced during 1981. These technical specifications ensure that parts like the Electr.sliding-lifting roof transmission (54121874871) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Electr.sliding lifting roof operation assembly?
- Each item in the Electr.sliding lifting roof operation corresponds to the numbered list below the illustration. For the 5 Series E12 518, you can identify the Electr.sliding-lifting roof transmission by locating its position on the schematic, which then links to the official BMW part number 54121874871 for the Sliding Roof / Folding Top section.
