Electr.sliding lifting roof operation for BMW 6 Series E24 633CSi (1979)

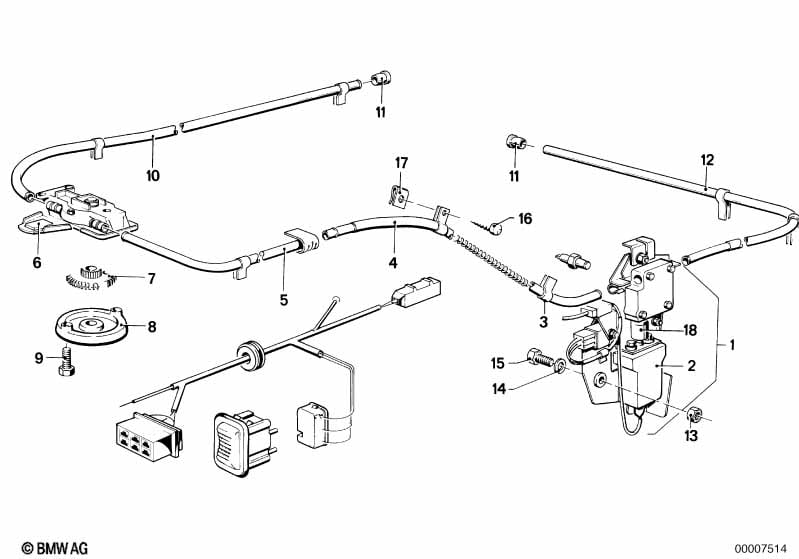

This Electr.sliding lifting roof operation technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.sliding-lifting roof transmission | 1 | 09/1979 | 54121859973 | ENDED | Shop at ECS Tuning | ||||
| 02 | Electr.drive | 1 | 09/1979 | 54131362601 | ENDED | Shop at ECS Tuning | ||||
| 03 | Guide tube rear | 1 | 09/1979 | 54121859816 | $14.17 | ENDED | Shop at ECS Tuning | |||
| 04 | Guide tube rear | 1 | 09/1979 | 54121859386 | $19.98 | ENDED | Shop at ECS Tuning | |||
| 05 | Guide tube front | 1 | 09/1979 | 54121839547 | $22.10 | ENDED | Shop at ECS Tuning | |||
| 06 | Electr.sliding-lifting roof transmission | 1 | 09/1979 | 54121859994 | $71.71 | Shop at ECS Tuning | ||||
| 07 | Pinion | 1 | 09/1979 | 54121857908 | $7.37 | ENDED | Shop at ECS Tuning | |||
| 08 | Base plate | 1 | 09/1979 | 54121857909 | $2.84 | ENDED | Shop at ECS Tuning | |||
| 09 | Countersunk head screw | M5X25 | 2 | 09/1979 | 54121932688 | $0.35 | ENDED | Shop at ECS Tuning | ||
| 10 | Outlet tube front | 1 | 09/1979 | 54121839569 | $17.97 | ENDED | Shop at ECS Tuning | |||
| 11 | Protection cap | 1 | 09/1979 | 54121857927 | ENDED | Shop at ECS Tuning | ||||
| 12 | Outlet tube rear | 1 | 09/1979 | 54121839427 | $14.10 | Shop at ECS Tuning | ||||
| 13 | Hex nut | M6-8-ZNNIV SI | 2 | 09/1979 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 14 | Washer | A6,4-200HV-ZNS3 | 2 | 09/1979 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 15 | Hex bolt | M6X22-8.8-ZNS3 | 2 | 09/1979 | 07119904505 | $0.38 | Shop at ECS Tuning | |||
| 16 | Fillister head self-tapping screw | ST4,2X13 | 1 | 09/1979 | 07119906748 | $0.18 | Shop at ECS Tuning | |||
| 17 | Body nut | ST4,2-1-ZNS3 | 6 | 09/1979 | 07129904220 | $0.09 | Shop at ECS Tuning | |||
| 18 | Connection piece | 1 | 09/1979 | 54121863119 | $12.17 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Electr.sliding lifting roof operation?
- This technical diagram illustrates the Electr.sliding lifting roof operation within the Sliding Roof / Folding Top group for the 6 Series E24 633CSi produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Electr.sliding-lifting roof transmission (Part #54121859973).
- Which models use the hardware listed in this Electr.sliding lifting roof operation?
- The hardware and components featured in the Electr.sliding lifting roof operation are specific to the 6 Series E24 633CSi produced during 1979. These technical specifications ensure that parts like the Electr.sliding-lifting roof transmission (54121859973) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Electr.sliding lifting roof operation assembly?
- Each item in the Electr.sliding lifting roof operation corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Electr.sliding-lifting roof transmission by locating its position on the schematic, which then links to the official BMW part number 54121859973 for the Sliding Roof / Folding Top section.
