Electr.sliding lifting roof operation for BMW 3 Series E30 325e (1987)

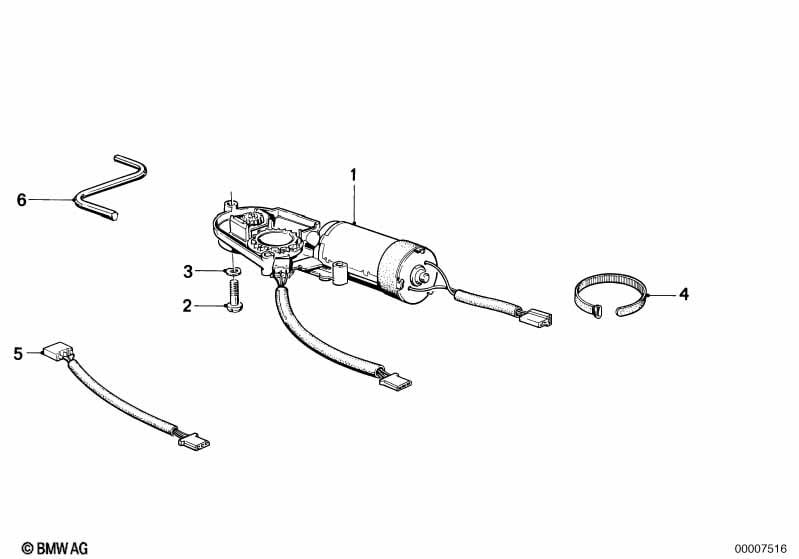

This Electr.sliding lifting roof operation technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.sliding-lifting roof transmission | 1 | 54121874871 | $299.68 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister head screw | M5X25 | 3 | 07119906416 | $0.71 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B5 | 3 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Microswitch | BLAU | 1 | 61311369184 | $30.02 | ENDED | Shop at ECS Tuning | |||
| 06 | Emergency tool elect.window/sliding roof | 1 | 54127199322 | $9.78 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
