Trim sliding lifting roof for BMW 7 Series E23 733i (1982)

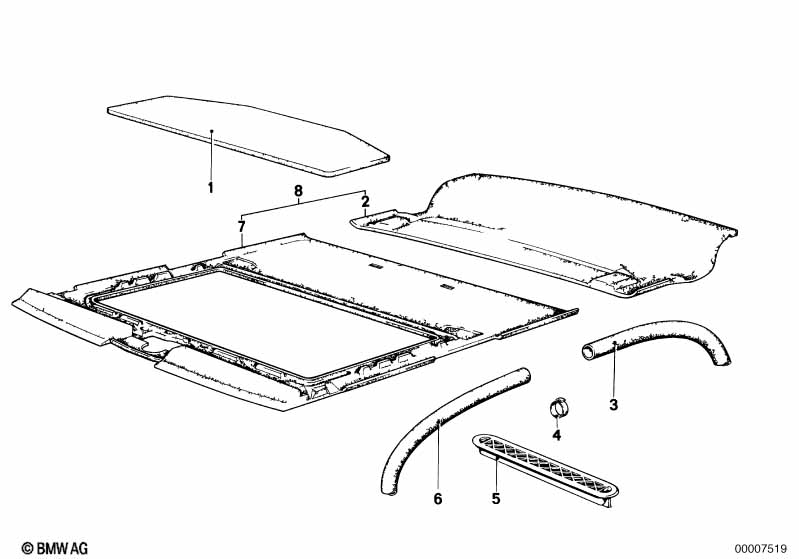

This Trim sliding lifting roof technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating cover | 1 | 54121909800 | $5.91 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trim sliding lifting roof | 1 | 54121854887 | ENDED | Shop at ECS Tuning | |||||
| 03 | Water hose | 1690MM | 2 | 51731947958 | $7.41 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L15-19 | 4 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 05 | Non return flap | 6 | 54121854571 | $4.80 | ENDED | Shop at ECS Tuning | ||||
| 06 | Water hose | 1700MM | 2 | 51731922405 | $7.73 | Shop at ECS Tuning | ||||
| 08 | Trim sliding lifting roof | 1 | 54121929984 | $123.88 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
