Trim sliding lifting roof for BMW 5 Series E28 525e (1987)

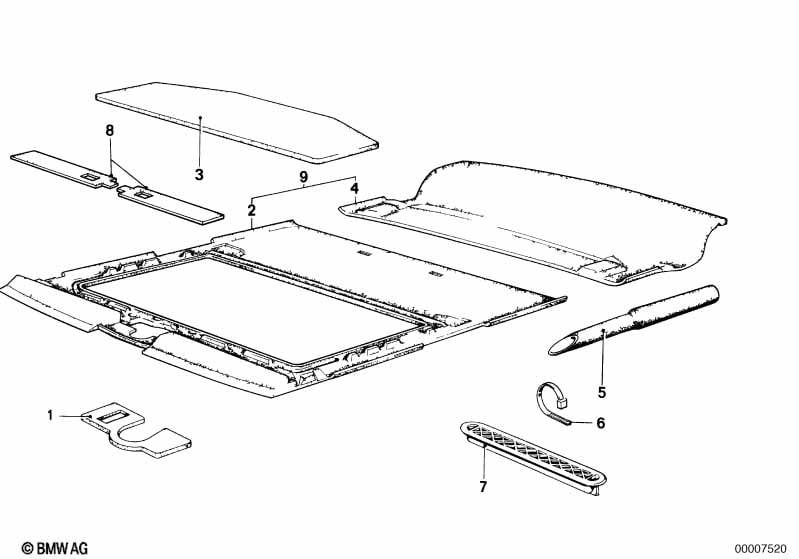

This Trim sliding lifting roof technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Upholstery cover gearbox | 1 | 54121879148 | $9.76 | ENDED | Shop at ECS Tuning | ||||
| 03 | Sound insulating cover | 1 | 54121909800 | $5.91 | ENDED | Shop at ECS Tuning | ||||
| 04 | Trim sliding lifting roof | 1 | 54121852696 | ENDED | Shop at ECS Tuning | |||||
| 05 | Water hose | 1700MM | 4 | 51731922405 | $7.73 | Shop at ECS Tuning | ||||
| 06 | Cable tie | L=292MM/B=4,8MM | 2 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Non return flap | 6 | 54121837850 | $2.76 | ENDED | Shop at ECS Tuning | ||||
| 08 | Sound insulating roof front | 2 | 51481904003 | $3.11 | Shop at ECS Tuning | |||||
| 09 | Trim sliding lifting roof | 1 | 09/1984 | 54121929983 | $112.72 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 525e Trim sliding lifting roof?
- This technical diagram illustrates the Trim sliding lifting roof within the Sliding Roof / Folding Top group for the 5 Series E28 525e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Upholstery cover gearbox (Part #54121879148).
- Which models use the hardware listed in this Trim sliding lifting roof?
- The hardware and components featured in the Trim sliding lifting roof are specific to the 5 Series E28 525e produced during 1987. These technical specifications ensure that parts like the Upholstery cover gearbox (54121879148) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim sliding lifting roof assembly?
- Each item in the Trim sliding lifting roof corresponds to the numbered list below the illustration. For the 5 Series E28 525e, you can identify the Upholstery cover gearbox by locating its position on the schematic, which then links to the official BMW part number 54121879148 for the Sliding Roof / Folding Top section.
