Slid.lift. roof-cover/ceiling frame for BMW 3 Series E30 320i (1991)

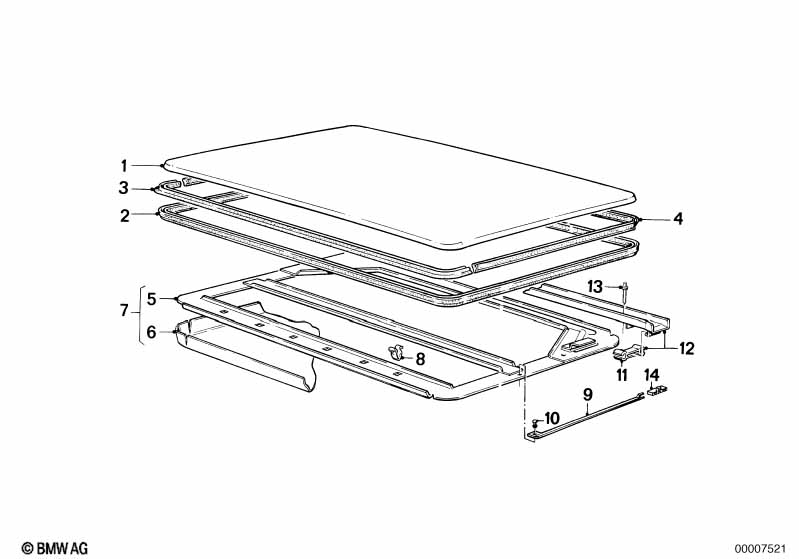

This Slid.lift. roof-cover/ceiling frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Cover | 1 | 54121906710 | $202.05 | Shop at ECS Tuning | |||||
| 01 | Cover | 1 | 54121906710 | $202.05 | Shop at ECS Tuning | |||||
| 02 | Circul.sliding/lifting roof cover gasket | L=2580MM | 1 | 54121903725 | $75.68 | Shop at ECS Tuning | ||||
| 02 | Circul.sliding/lifting roof cover gasket | L=2580MM | 1 | 54121903725 | $75.68 | Shop at ECS Tuning | ||||
| 03 | Front sliding/lifting roof cover gasket | L=930MM | 1 | 54128106928 | $39.83 | Shop at ECS Tuning | ||||
| 03 | Front sliding/lifting roof cover gasket | L=930MM | 1 | 54128106928 | $39.83 | Shop at ECS Tuning | ||||
| 04 | Rear sliding/lifting roof cover gasket | L=1650MM | 1 | 54121906999 | $60.21 | Shop at ECS Tuning | ||||
| 04 | Rear sliding/lifting roof cover gasket | L=1650MM | 1 | 54121906999 | $60.21 | Shop at ECS Tuning | ||||
| 05 | Ceiling frame | 1 | 54121906686 | ENDED | Shop at ECS Tuning | |||||
| 05 | Ceiling frame | 1 | 54121906686 | ENDED | Shop at ECS Tuning | |||||
| 06 | Headlining | B=1250MM; GRAU | X | 51951915828 | $55.40 | ENDED | Shop at ECS Tuning | |||
| 06 | Headlining | B=1250MM; GRAU | X | 51951915828 | $55.40 | ENDED | Shop at ECS Tuning | |||
| 07 | Ceiling frame covered cloth | QUARZ | 1 | 09/1987 | 54121922814 | $111.32 | ENDED | Shop at ECS Tuning | ||
| 07 | Ceiling frame covered cloth | QUARZ | 1 | 09/1987 | 54121922814 | $111.32 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version japan and Sports package |
L807A=Yes =Yes |
|||||||||
| 07 | Ceiling frame covered cloth | ANTHRAZIT | 1 | 54121955994 | $111.32 | ENDED | Shop at ECS Tuning | |||
| 07 | Ceiling frame covered cloth | ANTHRAZIT | 1 | 54121955994 | $111.32 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 08 | Clamp | 6 | 54121848635 | $4.55 | Shop at ECS Tuning | |||||
| 08 | Clamp | 6 | 54121848635 | $4.55 | Shop at ECS Tuning | |||||
| 09 | Connection piece left | 1 | 54121857141 | $7.15 | Shop at ECS Tuning | |||||
| 09 | Connection piece left | 1 | 54121857141 | $7.15 | Shop at ECS Tuning | |||||
| 09 | Connection piece right | 1 | 54121857142 | $7.15 | Shop at ECS Tuning | |||||
| 09 | Connection piece right | 1 | 54121857142 | $7.15 | Shop at ECS Tuning | |||||
| 10 | Rivet | A3X0,5X4-ST | 2 | 07119949613 | $0.08 | ENDED | Shop at ECS Tuning | |||
| 10 | Rivet | A3X0,5X4-ST | 2 | 07119949613 | $0.08 | ENDED | Shop at ECS Tuning | |||
| 10 | Rivet | A3X0,5X6-ST | 2 | 07119949614 | $0.10 | ENDED | Shop at ECS Tuning | |||
| 10 | Rivet | A3X0,5X6-ST | 2 | 07119949614 | $0.10 | ENDED | Shop at ECS Tuning | |||
| 11 | Sliding jaw | 2 | 54121933905 | $2.30 | Shop at ECS Tuning | |||||
| 11 | Sliding jaw | 2 | 54121933905 | $2.30 | Shop at ECS Tuning | |||||
| 12 | Rain gutter | 1 | 54121837094 | $20.97 | Shop at ECS Tuning | |||||
| 12 | Rain gutter | 1 | 54121837094 | $20.97 | Shop at ECS Tuning | |||||
| 13 | Rivet | A3X0,5X4-ST | 2 | 07119949613 | $0.08 | ENDED | Shop at ECS Tuning | |||
| 13 | Rivet | A3X0,5X4-ST | 2 | 07119949613 | $0.08 | ENDED | Shop at ECS Tuning | |||
| 14 | Supporting bracket | 2 | 54121934933 | $0.35 | Shop at ECS Tuning | |||||
| 14 | Supporting bracket | 2 | 54121934933 | $0.35 | Shop at ECS Tuning | |||||
