Single parts for sliding lifting roof for BMW 3 Series E30 320i (1991)

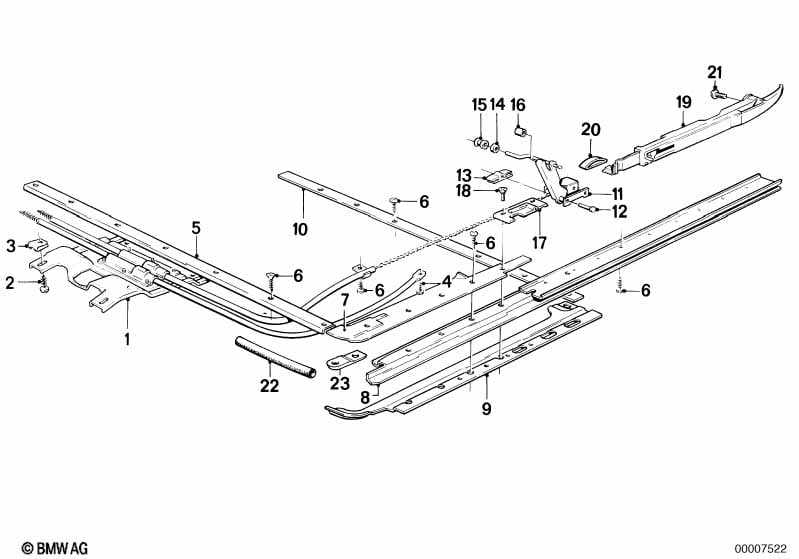

This Single parts for sliding lifting roof technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Mounting plate manual control | 1 | 54121906423 | $78.67 | ENDED | Shop at ECS Tuning | ||||
| 01 | Mounting plate electr.control | 1 | 54121906424 | $78.67 | ENDED | Shop at ECS Tuning | ||||
| 02 | Sheet metal screw | ST4,8X9,5-C-H-Z | 2 | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 03 | Plug-in nut | M5 | 5 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 04 | Sheet metal screw | 3,5X9,5 | 2 | 07119904455 | $2.45 | Shop at ECS Tuning | ||||
| 06 | Recessed oval head sheet-metal screw | X | 54121932543 | $0.18 | ENDED | Shop at ECS Tuning | ||||
| 07 | Slide rail left | 1 | 54121933213 | $40.11 | Shop at ECS Tuning | |||||
| 07 | Slide rail right | 1 | 54121933214 | $40.11 | Shop at ECS Tuning | |||||
| 08 | Guide rail left | 1 | 54121843485 | $52.34 | Shop at ECS Tuning | |||||
| 08 | Guide rail right | 1 | 54121843486 | $52.34 | Shop at ECS Tuning | |||||
| 09 | Slide rail left | 1 | 54121843479 | $8.90 | Shop at ECS Tuning | |||||
| 09 | Slide rail right | 1 | 54121843480 | $8.90 | Shop at ECS Tuning | |||||
| 10 | Terminal strip | 1 | 54121859819 | $8.86 | ENDED | Shop at ECS Tuning | ||||
| 11 | Drive cable left | 1 | 01/1985 | 54121933749 | $48.98 | Shop at ECS Tuning | ||||
| 11 | Drive cable right | 1 | 01/1985 | 54121933750 | $48.98 | Shop at ECS Tuning | ||||
| 12 | Pin | 4 | 54121902725 | $2.12 | Shop at ECS Tuning | |||||
| 14 | Roll pin | 2 | 54121849774 | $0.92 | Shop at ECS Tuning | |||||
| 15 | Bush | 2 | 54121843484 | $0.43 | ENDED | Shop at ECS Tuning | ||||
| 17 | Pilot left | 1 | 54121907253 | $10.58 | Shop at ECS Tuning | |||||
| 17 | Pilot right | 1 | 54121907254 | $10.58 | Shop at ECS Tuning | |||||
| 18 | Fillister head screw | M4X12 | 4 | 07119900692 | $1.80 | Shop at ECS Tuning | ||||
| 19 | Left gate | 1 | 54121941321 | $31.73 | Shop at ECS Tuning | |||||
| 19 | Right gate | 1 | 54121941322 | $31.73 | Shop at ECS Tuning | |||||
| 20 | Sliding jaw | 2 | 54121933550 | $2.40 | Shop at ECS Tuning | |||||
| 21 | Torx-bolt with washer | ISA M5X10 | 6 | 54121907282 | $0.89 | ENDED | Shop at ECS Tuning | |||
| 22 | Hose | L=335MM | X | 54121904824 | $8.07 | Shop at ECS Tuning | ||||
| 23 | Intermediate piece | 2 | 54121959856 | $2.40 | ENDED | Shop at ECS Tuning | ||||
