Trim sliding lifting roof for BMW 3 Series E30 318i (1994)

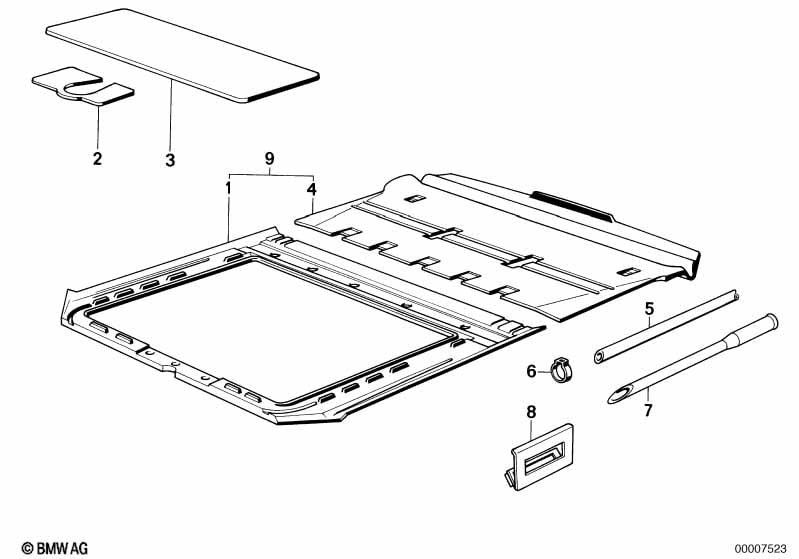

This Trim sliding lifting roof technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Upholstery cover gearbox | 1 | 54121879148 | $9.76 | ENDED | Shop at ECS Tuning | ||||
| 03 | Sound insulating cover | 1 | 54121906809 | $4.17 | ENDED | Shop at ECS Tuning | ||||
| 05 | Water hose | 1690MM | X | 51731947958 | $7.41 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | 4 | 17127634089 | Shop at ECS Tuning | ||||||
| 07 | Water hose | 1700MM | 2 | 51731922405 | $7.73 | Shop at ECS Tuning | ||||
| 08 | Bracket interior light | 2 | 54121884483 | $4.25 | Shop at ECS Tuning | |||||
| 09 | Trim sliding lifting roof | 1 | 54121924517 | $65.50 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
