Slid.lift. roof-cover/ceiling frame for BMW 5 Series E34 525td (1995)

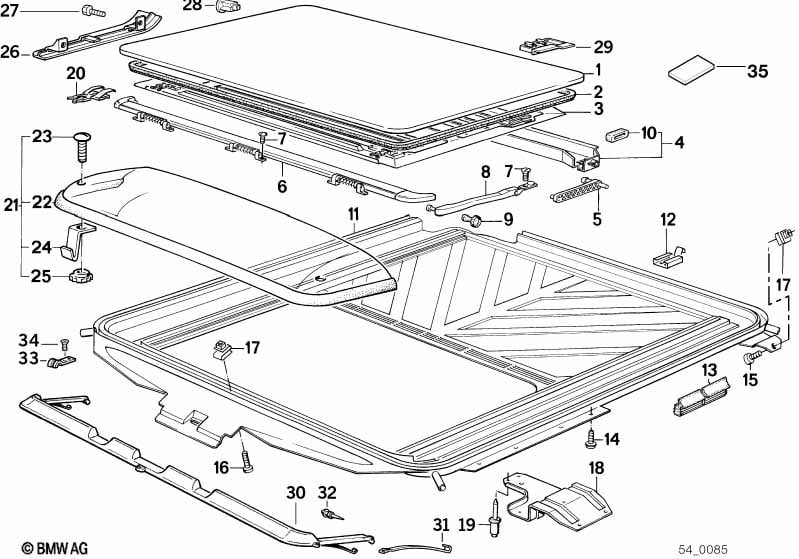

This Slid.lift. roof-cover/ceiling frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sliding lifting roof cover | 1 | 54128148903 | $183.96 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt with washer | ISA M5X10 | 6 | 54121907282 | $0.89 | ENDED | Shop at ECS Tuning | |||
| 02 | Circul.sliding/lifting roof cover gasket | L=2577MM | 1 | 54121944649 | $78.24 | Shop at ECS Tuning | ||||
| 02 | Circul.sliding/lifting roof cover gasket | L=2620MM | 1 | 54128101158 | $79.47 | Shop at ECS Tuning | ||||
| 03 | Ceiling frame covered velours | SCHWARZ | 1 | 09/1990 | 54122235256 | $121.64 | ENDED | Shop at ECS Tuning | ||
| 03 | Ceiling frame covered velours | SILBERGRAU | 1 | 09/1990 | 54128138023 | $121.64 | ENDED | Shop at ECS Tuning | ||
| 03 | Ceiling frame covered velours | PERGAMENT | 1 | 09/1990 | 54128138024 | $121.64 | ENDED | Shop at ECS Tuning | ||
| 04 | Rain gutter | 1 | 11/1989 | 54128181430 | $45.20 | ENDED | Shop at ECS Tuning | |||
| 09 | Absorber | 2 | 54121938595 | $2.96 | ENDED | Shop at ECS Tuning | ||||
| 10 | Sliding jaw | 2 | 11/1989 | 54128105582 | $2.95 | Shop at ECS Tuning | ||||
| For vehicles with Sliding lifting roof manual |
=Yes |
|||||||||
| 11 | Frame sliding-lifting roof complete | 1 | 54128117417 | $641.70 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Lift-up-and-slide-back sunroof, electric |
=Yes |
|||||||||
| 11 | Frame sliding-lifting roof complete | 1 | 54138117418 | $838.75 | ENDED | Shop at ECS Tuning | ||||
| 12 | Clamp | 2 | 54121948219 | $1.04 | Shop at ECS Tuning | |||||
| 13 | Sliding lifting roof frame gasket | L=3776MM | 1 | 54121938369 | $20.05 | Shop at ECS Tuning | ||||
| 14 | Torx bolt | ISA M5X12 | X | 52108123246 | $0.46 | Shop at ECS Tuning | ||||
| 15 | Torx bolt | ISA M5X16 | 2 | 54121908029 | $0.32 | Shop at ECS Tuning | ||||
| 16 | Torx bolt | ISA M5X30 | 1 | 54121948217 | $0.56 | Shop at ECS Tuning | ||||
| 17 | Nut holder | M5 | 3 | 51161849299 | $0.98 | Shop at ECS Tuning | ||||
| 17 | Body nut | M5 | 3 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 18 | Reinforcement left | 1 | 54121963989 | $13.14 | ENDED | Shop at ECS Tuning | ||||
| 18 | Reinforcement right | 1 | 54121963990 | $13.14 | ENDED | Shop at ECS Tuning | ||||
| 19 | Rivet | 4 | 54121963849 | $0.44 | Shop at ECS Tuning | |||||
| 20 | Hook | 2 | 54121950669 | $2.75 | Shop at ECS Tuning | |||||
| 22 | Gasket | 1 | 72608117483 | ENDED | Shop at ECS Tuning | |||||
| 23 | Screw | 2 | 72601852660 | $1.72 | Shop at ECS Tuning | |||||
| 24 | Support | 2 | 72608117482 | ENDED | Shop at ECS Tuning | |||||
| 25 | Knurled nut | M6 | 2 | 72601852661 | $1.72 | Shop at ECS Tuning | ||||
| 26 | Covering left | 1 | 54128111647 | $3.05 | Shop at ECS Tuning | |||||
| 26 | Covering right | 1 | 54128111648 | $3.05 | ENDED | Shop at ECS Tuning | ||||
| 27 | Hex nut with plate | M5 | 4 | 54128117498 | $0.39 | Shop at ECS Tuning | ||||
| 28 | Pin | 2 | 54121938470 | $2.05 | ENDED | Shop at ECS Tuning | ||||
| 29 | Lever left | 1 | 54121938383 | $3.12 | Shop at ECS Tuning | |||||
| 29 | Lever right | 1 | 54121938384 | $3.12 | Shop at ECS Tuning | |||||
| 30 | Slipstream deflector | 1 | 04/1993 | 54128169821 | $124.25 | Shop at ECS Tuning | ||||
| 31 | Spring | 2 | 04/1993 | 54138108206 | $3.88 | ENDED | Shop at ECS Tuning | |||
| 32 | Rubber buffer | 3 | 04/1993 | 54121926664 | $0.49 | Shop at ECS Tuning | ||||
| 33 | Bearing cover | 2 | 04/1993 | 54138108208 | $1.69 | Shop at ECS Tuning | ||||
| 34 | Torx bolt | ISA M4X8 | 4 | 04/1993 | 54121963850 | $0.61 | Shop at ECS Tuning | |||
| 35 | Set felt strip self-adhesive | X | 07/1996 | 51452353024 | Shop at ECS Tuning | |||||
