Sliding lifting roof drive for BMW 5 Series E34 535i (1992)

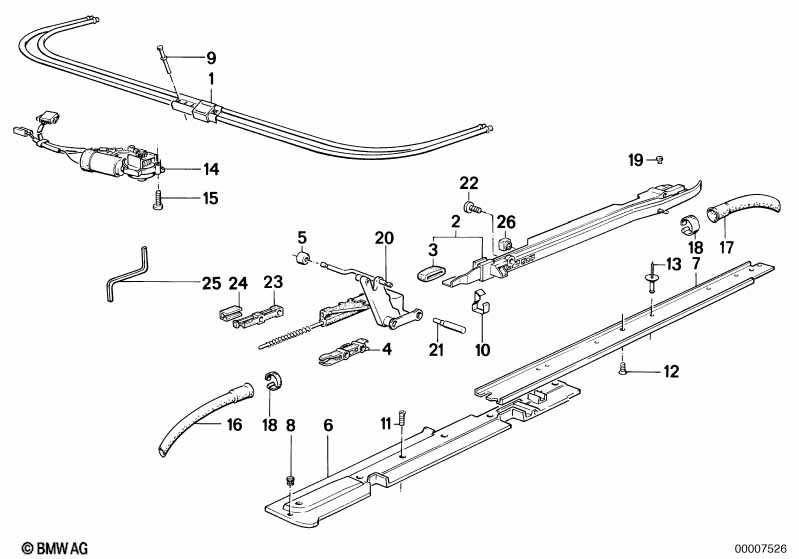

This Sliding lifting roof drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide tube | 1 | 54121944285 | $62.93 | ENDED | Shop at ECS Tuning | ||||
| 03 | Sliding jaw | 2 | 54128113222 | $2.86 | Shop at ECS Tuning | |||||
| 04 | Sliding piece | 2 | 54121919061 | $1.22 | Shop at ECS Tuning | |||||
| 05 | Roll pin | 2 | 54121958010 | $1.09 | Shop at ECS Tuning | |||||
| 06 | Slide rail left | 1 | 11/1994 | 54121938385 | $26.22 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Slide rail right | 1 | 11/1994 | 54121938386 | $26.22 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Rubber buffer | 2 | 11/1994 | 54121933211 | $0.61 | Shop at ECS Tuning | ||||
| 07 | Slide rail left | 1 | 54121938403 | $8.21 | ENDED | Shop at ECS Tuning | ||||
| 07 | Slide rail right | 1 | 54121938404 | $8.21 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rubber buffer | 2 | 54121933211 | $0.61 | Shop at ECS Tuning | |||||
| 09 | Rivet | 3,2-3A | 2 | 07129948742 | $0.11 | ENDED | Shop at ECS Tuning | |||
| 10 | Clamp | 2 | 54121938391 | $0.61 | Shop at ECS Tuning | |||||
| 11 | Torx bolt | ISA M4X8 | X | 54121963850 | $0.61 | Shop at ECS Tuning | ||||
| 12 | Torx bolt | ISA M5X16 | 6 | 54121963852 | $0.84 | ENDED | Shop at ECS Tuning | |||
| 13 | Blind rivet | SCHWARZ | 8 | 54128144789 | $0.56 | Shop at ECS Tuning | ||||
| 14 | Electr.sliding-lifting roof transmission | 1 | 54131378645 | $316.19 | Shop at ECS Tuning | |||||
| 15 | Torx bolt | ISA M5X25 | 2 | 54121948218 | $0.98 | Shop at ECS Tuning | ||||
| 15 | Torx bolt | ISA M5X32 | 1 | 54128116590 | $0.75 | Shop at ECS Tuning | ||||
| 16 | Water hose | 1700MM | 2 | 51731938347 | $6.89 | Shop at ECS Tuning | ||||
| 17 | Water hose | 1700MM | 2 | 51731938347 | $6.89 | Shop at ECS Tuning | ||||
| 18 | Hose clamp | L15-19 | 4 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 19 | Rubber buffer | 2 | 54128105429 | $0.37 | Shop at ECS Tuning | |||||
| 20 | Drive cable left | 1 | 54121978719 | $71.40 | Shop at ECS Tuning | |||||
| 20 | Drive cable right | 1 | 54121978720 | $71.40 | ENDED | Shop at ECS Tuning | ||||
| 21 | Pin | 4 | 54121964091 | $2.91 | Shop at ECS Tuning | |||||
| 23 | Holder | 2 | 54121964089 | $3.33 | ENDED | Shop at ECS Tuning | ||||
| 24 | Sliding piece | 4 | 54128113116 | $2.95 | Shop at ECS Tuning | |||||
| 25 | Emergency tool elect.window/sliding roof | 1 | 54127199322 | $9.78 | Shop at ECS Tuning | |||||
| 26 | Sliding piece | 2 | 54128113118 | $2.78 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
