Single parts for sliding lifting roof for BMW 6 Series E24 633CSi (1984)

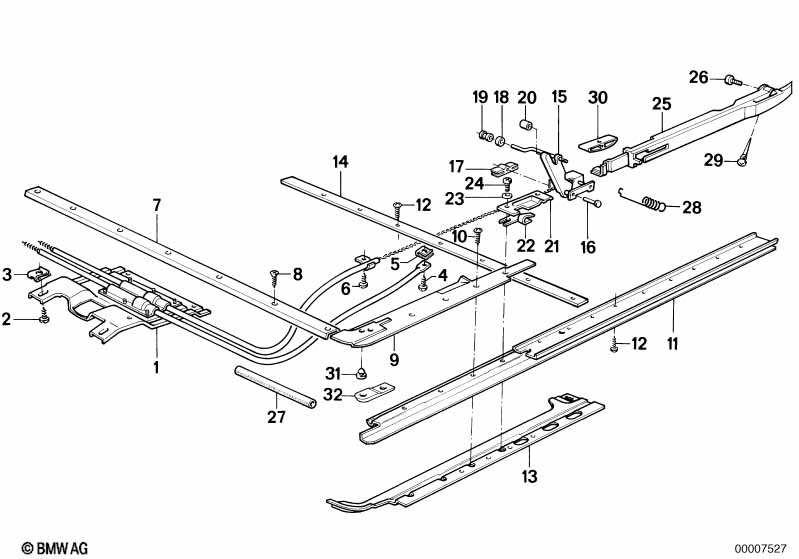

This Single parts for sliding lifting roof technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mounting plate electr.control | 1 | 09/1979 | 54121860188 | $80.89 | ENDED | Shop at ECS Tuning | |||
| 01 | Mounting plate manual control | 1 | 09/1979 | 54121866618 | $79.97 | ENDED | Shop at ECS Tuning | |||
| 02 | Sheet metal screw | ST4,8X9,5-C-H-Z | X | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 02 | Hex head screw | ST4,8X9,5-C-ZNS | X | 07119901554 | $0.37 | ENDED | Shop at ECS Tuning | |||
| 02 | Fillister head self-tapping screw | X | 54121966865 | $0.08 | ENDED | Shop at ECS Tuning | ||||
| 03 | Plug-in nut | M5 | X | 09/1979 | 46637651465 | $1.29 | Shop at ECS Tuning | |||
| 04 | Sheet metal screw | 3,5X9,5 | 2 | 07119904455 | $2.45 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST4,2-1-ZNS3 | 2 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Hex head screw | ST4,8X9,5-C-ZNS | 2 | 07119901554 | $0.37 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover rail front | 1 | 01/1982 | 54121843487 | $10.92 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover rail front | 1 | 01/1982 | 54121843487 | $10.92 | ENDED | Shop at ECS Tuning | |||
| 08 | Recessed oval head sheet-metal screw | X | 01/1982 | 54121932543 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 08 | Recessed oval head sheet-metal screw | X | 01/1982 | 54121932543 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 09 | Slide rail left | 1 | 01/1982 | 01/1986 | 54121859821 | $11.03 | ENDED | Shop at ECS Tuning | ||
| 09 | Slide rail left | 1 | 01/1982 | 01/1986 | 54121859821 | $11.03 | ENDED | Shop at ECS Tuning | ||
| 09 | Slide rail right | 1 | 01/1982 | 01/1986 | 54121859822 | $11.03 | ENDED | Shop at ECS Tuning | ||
| 09 | Slide rail right | 1 | 01/1982 | 01/1986 | 54121859822 | $11.03 | ENDED | Shop at ECS Tuning | ||
| 10 | Recessed oval head sheet-metal screw | X | 01/1982 | 54121932543 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 10 | Recessed oval head sheet-metal screw | X | 01/1982 | 54121932543 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 11 | Guide rail left | 1 | 01/1982 | 54121909757 | $16.56 | Shop at ECS Tuning | ||||
| 11 | Guide rail left | 1 | 01/1982 | 54121909757 | $16.56 | Shop at ECS Tuning | ||||
| 11 | Guide rail right | 1 | 01/1982 | 54121909758 | $16.56 | ENDED | Shop at ECS Tuning | |||
| 11 | Guide rail right | 1 | 01/1982 | 54121909758 | $16.56 | ENDED | Shop at ECS Tuning | |||
| 12 | Recessed oval head sheet-metal screw | X | 01/1982 | 54121932543 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 12 | Recessed oval head sheet-metal screw | X | 01/1982 | 54121932543 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 13 | Slide rail left | 1 | 54121839521 | $9.10 | Shop at ECS Tuning | |||||
| 13 | Slide rail right | 1 | 54121839522 | $9.75 | ENDED | Shop at ECS Tuning | ||||
| 15 | Drive cable-pair | 1 | 09/1986 | 54121858056 | $147.32 | ENDED | Shop at ECS Tuning | |||
| 16 | Pin | 1 | 09/1986 | 54121843481 | $7.90 | Shop at ECS Tuning | ||||
| 17 | Sliding piece | 2 | 09/1986 | 54121843424 | $1.08 | Shop at ECS Tuning | ||||
| 18 | Roll pin | 2 | 54121849774 | $0.92 | Shop at ECS Tuning | |||||
| 19 | Bush | 2 | 54121843484 | $0.43 | ENDED | Shop at ECS Tuning | ||||
| 20 | Roller | 2 | 54121843493 | $0.37 | ENDED | Shop at ECS Tuning | ||||
| 20 | Roller | 2 | 54121843494 | $0.92 | Shop at ECS Tuning | |||||
| 21 | Pilot left | 1 | 01/1982 | 09/1986 | 54121846223 | $7.43 | Shop at ECS Tuning | |||
| 21 | Pilot left | 1 | 01/1982 | 09/1986 | 54121846223 | $7.43 | Shop at ECS Tuning | |||
| 21 | Pilot right | 1 | 01/1982 | 09/1986 | 54121846224 | $7.43 | Shop at ECS Tuning | |||
| 21 | Pilot right | 1 | 01/1982 | 09/1986 | 54121846224 | $7.43 | Shop at ECS Tuning | |||
| 22 | Guide plate left | 1 | 01/1982 | 09/1986 | 54121857959 | $0.80 | ENDED | Shop at ECS Tuning | ||
| 22 | Guide plate left | 1 | 01/1982 | 09/1986 | 54121857959 | $0.80 | ENDED | Shop at ECS Tuning | ||
| 22 | Guide plate right | 1 | 01/1982 | 09/1986 | 54121857960 | $0.80 | Shop at ECS Tuning | |||
| 22 | Guide plate right | 1 | 01/1982 | 09/1986 | 54121857960 | $0.80 | Shop at ECS Tuning | |||
| 23 | Wave washer | B4 | 4 | 09/1986 | 07119932033 | $0.09 | Shop at ECS Tuning | |||
| 24 | Fillister head screw | M4X12 | 4 | 09/1986 | 07119900692 | $1.80 | Shop at ECS Tuning | |||
| 27 | Hose | L=335MM | X | 54121904824 | $8.07 | Shop at ECS Tuning | ||||
| 28 | Spring | 2 | 54121917722 | $5.20 | ENDED | Shop at ECS Tuning | ||||
| 29 | Rubber buffer | 2 | 54121926664 | $0.49 | Shop at ECS Tuning | |||||
| 30 | Sliding jaw | 2 | 54121933550 | $2.40 | Shop at ECS Tuning |
