EH folding top micro switch for BMW 3 Series E30 320i (1988)

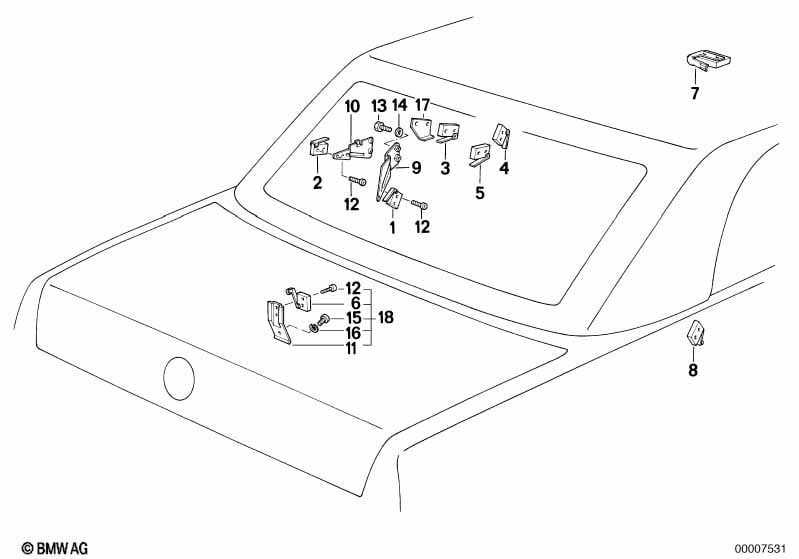

This EH folding top micro switch technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Microswitch | 1 | 54342230561 | ENDED | Shop at ECS Tuning | |||||
| 02 | Microswitch | 1 | 54342230562 | Shop at ECS Tuning | ||||||
| 03 | Microswitch | 1 | 61312232130 | $28.18 | Shop at ECS Tuning | |||||
| 04 | Microswitch | 1 | 54342230559 | ENDED | Shop at ECS Tuning | |||||
| 05 | Microswitch | 1 | 54342230560 | ENDED | Shop at ECS Tuning | |||||
| 06 | Microswitch | 1 | 54342232259 | $51.06 | ENDED | Shop at ECS Tuning | ||||
| 07 | Microswitch | 1 | 54342230557 | ENDED | Shop at ECS Tuning | |||||
| 08 | Microswitch | 1 | 54342232033 | ENDED | Shop at ECS Tuning | |||||
| 09 | Holder | 1 | 54342230447 | ENDED | Shop at ECS Tuning | |||||
| 10 | Holder | 1 | 54342232096 | ENDED | Shop at ECS Tuning | |||||
| 11 | Holder | 1 | 54342230467 | ENDED | Shop at ECS Tuning | |||||
| 12 | Fillister-head screw | M2X8 | X | 54342232041 | ENDED | Shop at ECS Tuning | ||||
| 12 | Fillister-head screw | M2X10 | X | 54342232135 | $0.53 | ENDED | Shop at ECS Tuning | |||
| 13 | Hexagon bolt black | M5X12-Z4-8.8 | X | 17111464440 | $1.20 | Shop at ECS Tuning | ||||
| 14 | Wave washer | B5 | X | 07119932048 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 15 | Fillister head screw | M5X8 | X | 07119907623 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Spring washer Black | B6-ZN | X | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Washer | 5.3-140 HV-ZNS | X | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Wave washer | B6-ZNS3 | X | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 17 | Plate | 1 | 54342230584 | ENDED | Shop at ECS Tuning | |||||
| 18 | Microswitch | 1 | 54342232259 | $51.06 | ENDED | Shop at ECS Tuning |
