Singl.parts f electro-mechan.folding top for BMW 3 Series E30 320i

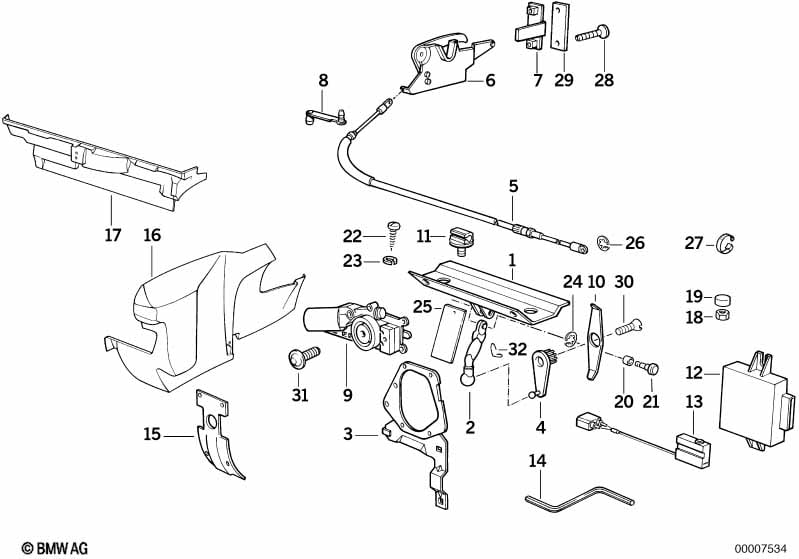

This Singl.parts f electro-mechan.folding top technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Console | 1 | 51258112683 | $32.64 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rod | 1 | 51258112688 | $51.11 | Shop at ECS Tuning | |||||
| 03 | Reinforcement of hood compartment drive | 1 | 41138112692 | $18.69 | Shop at ECS Tuning | |||||
| 04 | Lever | 1 | 51258112682 | $45.26 | Shop at ECS Tuning | |||||
| 05 | Bowden cable | 2 | 51258112685 | $40.42 | Shop at ECS Tuning | |||||
| 06 | Lock | 1 | 51258106981 | $202.25 | ENDED | Shop at ECS Tuning | ||||
| 06 | Lock | 1 | 51258106982 | $202.25 | ENDED | Shop at ECS Tuning | ||||
| 07 | Plate | 1 | 51258129351 | $10.77 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cable holder | 4 | 61131353316 | ENDED | Shop at ECS Tuning | |||||
| 08 | Cable holder | 70MM | 4 | 61131353661 | $1.37 | ENDED | Shop at ECS Tuning | |||
| 09 | Folding top flap drive | 1 | 54348106927 | $546.93 | Shop at ECS Tuning | |||||
| 10 | Lever | 1 | 51258112687 | $24.30 | Shop at ECS Tuning | |||||
| 11 | Holder | 2 | 51258106959 | $34.04 | ENDED | Shop at ECS Tuning | ||||
| 12 | Control unit | 1 | 61351394205 | $476.52 | ENDED | Shop at ECS Tuning | ||||
| 13 | Microswitch | 2 | 61311394328 | $38.47 | +core | Shop at ECS Tuning | ||||
| 13 | Microswitch | 2 | 61311394329 | $32.80 | Shop at ECS Tuning | |||||
| 14 | Emergency tool elect.window/sliding roof | 1 | 54127199322 | $9.78 | Shop at ECS Tuning | |||||
| 15 | Cover | 1 | 51258106991 | $8.97 | Shop at ECS Tuning | |||||
| 16 | Panel wheel housing part.trunk right | 1 | 51478121398 | $57.09 | ENDED | Shop at ECS Tuning | ||||
| 17 | Covering hood compartment | 1 | 51478121399 | $88.26 | ENDED | Shop at ECS Tuning | ||||
| 18 | Self-locking hex nut | M8-8-ZNS3 | 1 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 19 | Clamp | A5 | 1 | 07129934906 | $0.53 | Shop at ECS Tuning | ||||
| 20 | Spacer sleeve | 1 | 51258129349 | $31.81 | Shop at ECS Tuning | |||||
| 21 | Pin | 1 | 51258112686 | $22.93 | Shop at ECS Tuning | |||||
| 22 | Sheet metal screw | ST 4,2X19 | 5 | 46632309201 | $2.39 | Shop at ECS Tuning | ||||
| 23 | Spring washer | B5 | 5 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 24 | Lock Ring | 2 | 51211854873 | $0.81 | Shop at ECS Tuning | |||||
| 25 | Cover | 1 | 51258129259 | $13.51 | Shop at ECS Tuning | |||||
| 26 | Clamp | B5 | 4 | 07129900180 | $0.84 | ENDED | Shop at ECS Tuning | |||
| 27 | Cable tie | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 28 | Countersunk head screw | M8X14 | 1 | 07119900819 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 29 | Pad | 1 | 54348121757 | $51.99 | ENDED | Shop at ECS Tuning | ||||
| 30 | Countersunk head screw | M5X40-8.8-ZN-SW | 1 | 07119900823 | $1.09 | Shop at ECS Tuning | ||||
| 31 | Fillister head screw | M6X16 | 4 | 07149113787 | $0.71 | Shop at ECS Tuning | ||||
| 32 | Safety clip | S10 | 1 | 07119987611 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Singl.parts f electro-mechan.folding top?
- This technical diagram illustrates the Singl.parts f electro-mechan.folding top within the Sliding Roof / Folding Top group for the 3 Series E30 320i. It provides a detailed exploded view of the components, identifying key parts such as the Console (Part #51258112683).
- Which models use the hardware listed in this Singl.parts f electro-mechan.folding top?
- The hardware and components featured in the Singl.parts f electro-mechan.folding top are specific to the 3 Series E30 320i. These technical specifications ensure that parts like the Console (51258112683) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Singl.parts f electro-mechan.folding top assembly?
- Each item in the Singl.parts f electro-mechan.folding top corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Console by locating its position on the schematic, which then links to the official BMW part number 51258112683 for the Sliding Roof / Folding Top section.
