Sliding lifting roof drive for BMW 3 Series E36 323i (1998)
This Sliding lifting roof drive technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide tube | 1 | 11/1994 | 54128206390 | $54.02 | +core | Shop at ECS Tuning | |||
| 02 | Blind rivet | SCHWARZ | 2 | 11/1994 | 54128144789 | $0.56 | Shop at ECS Tuning | |||
| 03 | Bowden cable | 1 | 11/1994 | 54128206388 | $59.46 | Shop at ECS Tuning | ||||
| 04 | Fillister head screw | M5X28 | 2 | 54107209205 | $1.98 | Shop at ECS Tuning | ||||
| 04 | Torx bolt | ISA M5X32 | 1 | 54128116590 | $0.75 | Shop at ECS Tuning | ||||
| 05 | Left pipe clamp | 1 | 11/1994 | 54128206391 | $5.70 | Shop at ECS Tuning | ||||
| 05 | Right pipe clamp | 1 | 11/1994 | 54128206392 | $5.70 | Shop at ECS Tuning | ||||
| 06 | Electr.sliding-lifting roof transmission | 1 | 09/1995 | 67618362364 | $316.19 | ENDED | Shop at ECS Tuning | |||
| 07 | Outlet hose | L=1760MM | 2 | 54128185083 | $5.40 | Shop at ECS Tuning | ||||
| 08 | Outlet hose | L=1760MM | 2 | 54128185083 | $5.40 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | L15-19 | 4 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 10 | Emergency tool elect.window/sliding roof | 1 | 54127199322 | $9.78 | Shop at ECS Tuning | |||||
| 11 | Torx-bolt for plastic material | L=9MM | 4 | 11/1994 | 54128206394 | $0.75 | Shop at ECS Tuning | |||
| 12 | Socket housing, natural | 2 POL. | 1 | 61131378109 | $1.15 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 with cable | 1,5-2,5 MM² AG | 1 | 61132466429 | Shop at ECS Tuning | |||||
| -- | Snap-in receptacle 2.5 with cable | 0,5-1,0 MM² SN | 1 | 61135A07B73 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 323i Sliding lifting roof drive?

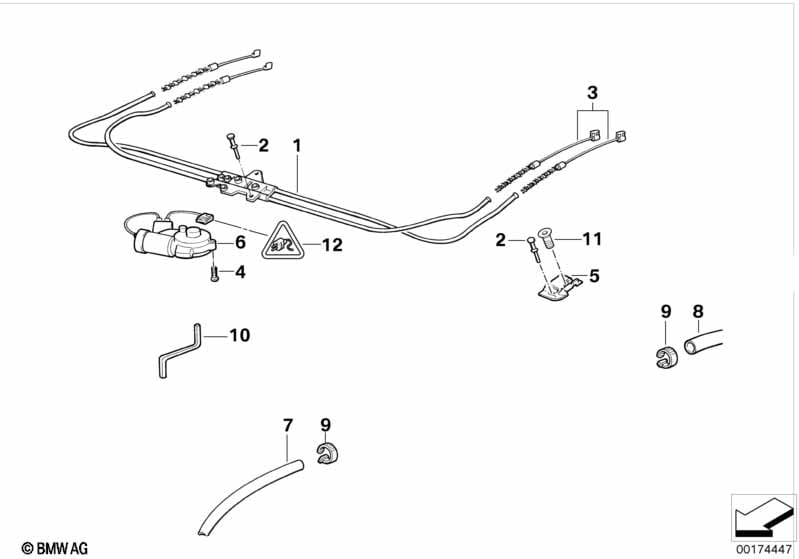

- This technical diagram illustrates the Sliding lifting roof drive within the Sliding Roof / Folding Top group for the 3 Series E36 323i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Guide tube (Part #54128206390).
- Which models use the hardware listed in this Sliding lifting roof drive?
- The hardware and components featured in the Sliding lifting roof drive are specific to the 3 Series E36 323i produced during 1998. These technical specifications ensure that parts like the Guide tube (54128206390) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sliding lifting roof drive assembly?
- Each item in the Sliding lifting roof drive corresponds to the numbered list below the illustration. For the 3 Series E36 323i, you can identify the Guide tube by locating its position on the schematic, which then links to the official BMW part number 54128206390 for the Sliding Roof / Folding Top section.
