Slid.lift. roof-cover/ceiling frame for BMW 5 Series E34 525tds (1996)

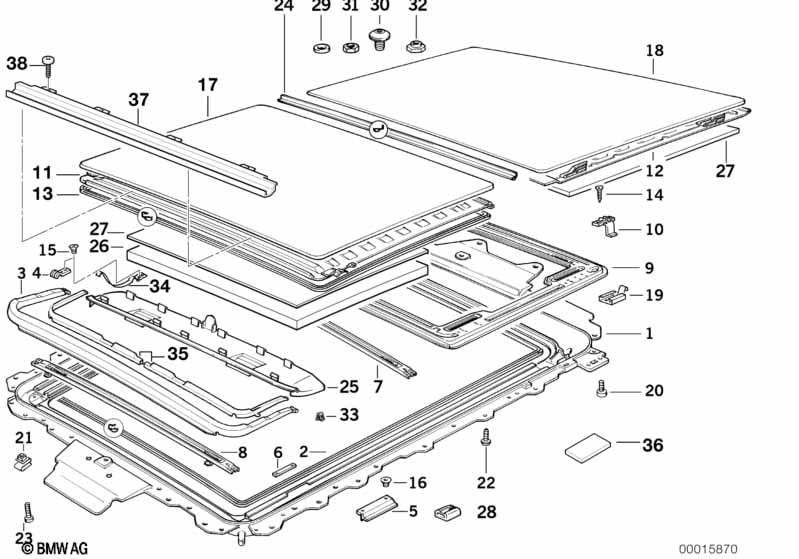

This Slid.lift. roof-cover/ceiling frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Frame sliding-lifting roof complete | 1 | 54128120426 | $1711.36 | ENDED | Shop at ECS Tuning | ||||
| 02 | Circul.sliding/lifting roof cover gasket | 4360MM | 1 | 54128133642 | $79.47 | Shop at ECS Tuning | ||||
| 03 | Slipstream deflector | 1 | 54128149667 | $109.37 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover | 2 | 54128120677 | $4.17 | ENDED | Shop at ECS Tuning | ||||
| 06 | Lock plate | M4 | 2 | 54128120678 | $8.30 | Shop at ECS Tuning | ||||
| 07 | Cross member | 1 | 54128120685 | $34.32 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cross member | 1 | 54128120685 | $34.32 | ENDED | Shop at ECS Tuning | ||||
| 09 | Sliding/lifting roof cover frame | 1 | 54128120686 | $152.51 | Shop at ECS Tuning | |||||
| 10 | Holder | 1 | 54128120691 | $3.28 | ENDED | Shop at ECS Tuning | ||||
| 11 | Ceiling frame covered velours | SILBERGRAU | 1 | 54128149650 | $694.67 | +core | Shop at ECS Tuning | |||
| 11 | Ceiling frame covered velours | PERGAMENT | 1 | 54128149651 | $694.67 | ENDED | Shop at ECS Tuning | |||
| 12 | Ceiling frame covered velours | SILBERGRAU | 1 | 54128149652 | $852.56 | +core | Shop at ECS Tuning | |||
| 12 | Ceiling frame covered velours | PERGAMENT | 1 | 54128149653 | $161.92 | ENDED | Shop at ECS Tuning | |||
| 14 | Sheet metal screw | ST4,8X9,5-C-H-Z | X | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 15 | Torx-bolt for plastic material | L=16MM | X | 54128120572 | $0.51 | Shop at ECS Tuning | ||||
| 16 | Countersunk head screw | M4X8 | X | 07119928100 | $0.94 | ENDED | Shop at ECS Tuning | |||
| 17 | Front sliding lifting roof cover | 1 | 54128120139 | $183.96 | ENDED | Shop at ECS Tuning | ||||
| 18 | Rear sliding lifting roof cover | 1 | 54128120423 | $128.79 | ENDED | Shop at ECS Tuning | ||||
| 19 | Clamp | X | 54138120576 | $1.84 | Shop at ECS Tuning | |||||
| 20 | Torx bolt | ISA M5X16 | X | 54121908029 | $0.32 | Shop at ECS Tuning | ||||
| 21 | Nut holder | M5 | X | 51161849299 | $0.98 | Shop at ECS Tuning | ||||
| 22 | Torx bolt | ISA M5X12 | X | 52108123246 | $0.46 | Shop at ECS Tuning | ||||
| 23 | Torx bolt | ISA M5X32 | X | 54128116590 | $0.75 | Shop at ECS Tuning | ||||
| 24 | Center sliding/lifting roof cover gasket | 877MM | 1 | 54128149662 | $44.90 | Shop at ECS Tuning | ||||
| 25 | Trim panel | SILBERGRAU | 1 | 54128120962 | $62.36 | Shop at ECS Tuning | ||||
| 25 | Trim panel | PERGAMENT | 1 | 54128120963 | $62.36 | Shop at ECS Tuning | ||||
| 26 | Sound deadener | 1 | 54128149357 | ENDED | Shop at ECS Tuning | |||||
| 27 | Sound deadener | 1 | 54128149356 | ENDED | Shop at ECS Tuning | |||||
| 28 | Sliding piece | 6 | 54128120565 | $4.62 | Shop at ECS Tuning | |||||
| 29 | Washer | 2 | 11651274941 | $0.85 | ENDED | Shop at ECS Tuning | ||||
| 30 | Torx-bolt with washer | ISA M6X10 | 4 | 54124197082 | $6.09 | ENDED | Shop at ECS Tuning | |||
| 31 | Self-locking hex nut | M6 | 4 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 32 | Hex nut | M5 | 4 | 54128119975 | $2.28 | Shop at ECS Tuning | ||||
| 33 | Clip | X | 51437194187 | $1.98 | Shop at ECS Tuning | |||||
| 34 | Spring left | 1 | 05/1993 | 54128171973 | $6.84 | ENDED | Shop at ECS Tuning | |||
| 34 | Spring right | 1 | 05/1993 | 54128171974 | $6.84 | Shop at ECS Tuning | ||||
| 35 | Slipstream deflector | 1 | 05/1993 | 54128149667 | $109.37 | ENDED | Shop at ECS Tuning | |||
| 37 | Rain gutter | 1 | 05/1994 | 54128149663 | ENDED | Shop at ECS Tuning | ||||
| 38 | Sheet metal screw | M4 X 7 | 4 | 05/1994 | 61131391232 | $0.08 | ENDED | Shop at ECS Tuning |
