Slid.lift. roof-cover/ceiling frame for BMW 7 Series E38 735i

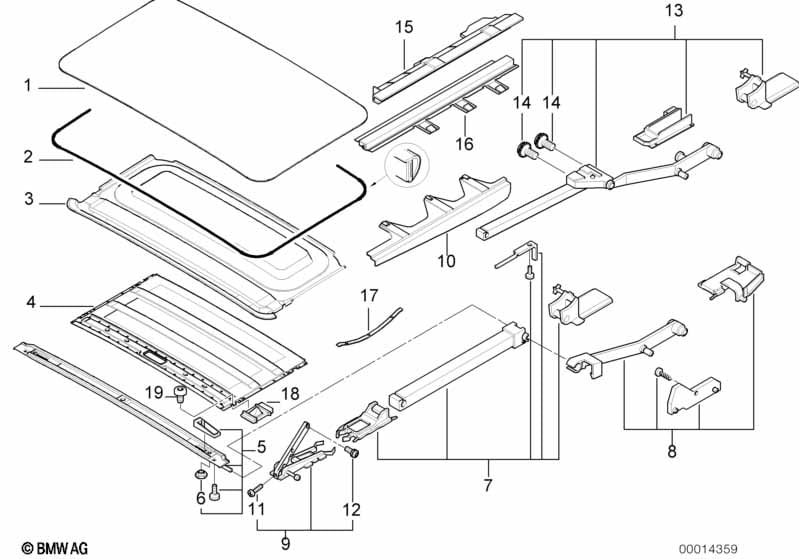

This Slid.lift. roof-cover/ceiling frame technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Lift-up and slide-back sunroof, steel |
=Yes |
|||||||||
| 01 | Sliding lifting roof steel cover | 1 | 54128125609 | $301.13 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Oglass slid.lifting roof |
=Yes |
|||||||||
| 01 | Sliding lifting roof glass cover | VENUSGRAU | 1 | 54128183140 | $501.91 | Shop at ECS Tuning | ||||
| only applies to Surface coated with gliding lacquer |
||||||||||
| 02 | Surrounding seal | L=2883 | 1 | 54107245551 | $30.68 | Shop at ECS Tuning | ||||
| only applies to Surface flock-finished |
||||||||||
| 02 | Circul.sliding/lifting roof cover gasket | L=2730MM | 1 | 54128169710 | $44.90 | Shop at ECS Tuning | ||||
| For vehicles with Lift-up and slide-back sunroof, steel |
=Yes |
|||||||||
| 03 | Trim panel f sliding lifting roof cover | ANTHRAZIT | 1 | 54122269505 | $71.23 | ENDED | Shop at ECS Tuning | |||
| 03 | Trim panel f sliding lifting roof cover | HELLGRAU | 1 | 54128173095 | $71.23 | Shop at ECS Tuning | ||||
| 03 | Trim panel f sliding lifting roof cover | SANDBEIGE | 1 | 54128173096 | $71.23 | ENDED | Shop at ECS Tuning | |||
| 03 | Trim panel f sliding lifting roof cover | PERLBEIGE | 1 | 09/1998 | 54128250970 | $71.23 | ENDED | Shop at ECS Tuning | ||
| 04 | Ceiling frame covered velours | ANTHRAZIT | 1 | 54122269507 | $195.93 | ENDED | Shop at ECS Tuning | |||
| 04 | Ceiling frame covered velours | HELLGRAU | 1 | 54128173093 | $195.93 | Shop at ECS Tuning | ||||
| 04 | Ceiling frame covered velours | SANDBEIGE | 1 | 54128173094 | $195.93 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Ceiling frame covered velours | PERLBEIGE | 1 | 09/1998 | 54128250974 | $195.93 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Oglass slid.lifting roof |
=Yes |
|||||||||
| 04 | Ceiling frame covered velours | ANTHRAZIT | 1 | 54122269509 | $195.93 | ENDED | Shop at ECS Tuning | |||
| If necessary, with Pos. 18 |
||||||||||
| 04 | Ceiling frame covered velours | HELLGRAU | 1 | 54128186694 | $195.93 | Shop at ECS Tuning | ||||
| If necessary, with Pos. 18 |
||||||||||
| 04 | Ceiling frame covered velours | SANDBEIGE | 1 | 54128186695 | $195.93 | Shop at ECS Tuning | ||||
| If necessary, with Pos. 18 |
||||||||||
| 04 | Ceiling frame covered velours | PRELBEIGE | 1 | 09/1998 | 54128250973 | $195.93 | ENDED | Shop at ECS Tuning | ||
| If necessary, with Pos. 18 |
||||||||||
| For vehicles with Lift-up and slide-back sunroof, steel |
=Yes |
|||||||||
| 05 | Cross member | 1 | 54128173103 | $37.33 | +core | Shop at ECS Tuning | ||||
| 06 | Hex nut | M5 | 2 | 54128119975 | $2.28 | Shop at ECS Tuning | ||||
| For vehicles with Lift-up and slide-back sunroof, steel |
=Yes |
|||||||||
| 07 | Left control rail | 1 | 54128173099 | $29.14 | Shop at ECS Tuning | |||||
| 07 | Right control rail | 1 | 54128173100 | $29.14 | Shop at ECS Tuning | |||||
| 08 | Repair kit f left slide water channel | 1 | 54128173101 | $38.15 | Shop at ECS Tuning | |||||
| 08 | Repair kit f right slide water channel | 1 | 54128173102 | $38.15 | Shop at ECS Tuning | |||||
| 09 | Sliding piece left | 1 | 54128172973 | $32.67 | Shop at ECS Tuning | |||||
| 09 | Right sliding piece | 1 | 54128172974 | $32.67 | Shop at ECS Tuning | |||||
| For vehicles with Lift-up and slide-back sunroof, steel |
=Yes |
|||||||||
| 10 | Covering left | 1 | 54128150143 | $4.74 | ENDED | Shop at ECS Tuning | ||||
| 10 | Covering right | 1 | 54128150144 | $4.74 | Shop at ECS Tuning | |||||
| 11 | Fillister head screw | M2,5X10 | 2 | 54128153570 | $0.39 | Shop at ECS Tuning | ||||
| 12 | Torx-bolt with washer | ISA M5X10 | 2 | 54128130016 | $0.75 | Shop at ECS Tuning | ||||
| For vehicles with Oglass slid.lifting roof |
=Yes |
|||||||||
| 13 | Left control rail | 1 | 54128209795 | $49.04 | Shop at ECS Tuning | |||||
| 13 | Right control rail | 1 | 54128209796 | $49.04 | Shop at ECS Tuning | |||||
| 14 | Torx-bolt with washer | ISA M5X10 | 4 | 54121907282 | $0.89 | ENDED | Shop at ECS Tuning | |||
| 15 | Support for left rubber boot | 1 | 54128186651 | $24.63 | Shop at ECS Tuning | |||||
| 15 | Support for right rubber boot | 1 | 54128186652 | $24.63 | Shop at ECS Tuning | |||||
| 16 | Left rubber boot | 1 | 54128186655 | $34.98 | ENDED | Shop at ECS Tuning | ||||
| 16 | Right rubber boot | 1 | 54128186656 | $34.98 | ENDED | Shop at ECS Tuning | ||||
| 17 | Spring | 2 | 54128176063 | $7.30 | Shop at ECS Tuning | |||||
| 18 | set of stops | 1 | 54128158674 | $10.72 | Shop at ECS Tuning | |||||
| 19 | Torx bolt | 2 | 07149144233 | $0.59 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
