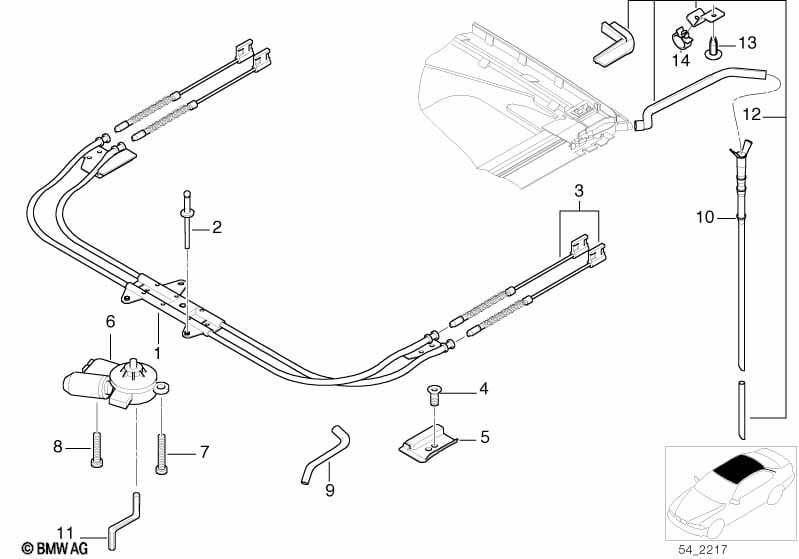

Single parts for sliding lifting roof for BMW 7 Series E38 740iL (1996)
This Single parts for sliding lifting roof technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Lift-up and slide-back sunroof, steel or Oglass slid.lifting roof |
=Yes =Yes |
|||||||||
| 01 | Guide tube | 1 | 54128150128 | $69.28 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Blind rivet | SCHWARZ | 2 | 54128144789 | $0.56 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | ISA M4X12 | 4 | 54128171352 | $0.44 | Shop at ECS Tuning | ||||
| 03 | Bowden cable | 1 | 54128173106 | $50.77 | Shop at ECS Tuning | |||||
| 04 | Torx bolt | ISA M4X12 | 4 | 54128171352 | $0.44 | Shop at ECS Tuning | ||||
| 05 | Left pipe clamp | 1 | 54128169479 | $10.28 | Shop at ECS Tuning | |||||
| 05 | Right pipe clamp | 1 | 54128169480 | $10.28 | Shop at ECS Tuning | |||||
| 06 | Sliding roof drive unit with module | 1 | 09/1998 | 67618380136 | $316.19 | Shop at ECS Tuning | ||||
| 07 | Torx bolt | ISA M5X32 | 1 | 54128116590 | $0.75 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | M5X28 | 2 | 54107209205 | $1.98 | Shop at ECS Tuning | ||||
| 09 | Outlet hose | 2 | 54128167253 | $5.40 | Shop at ECS Tuning | |||||
| 10 | Outlet hose | L=1760MM | 2 | 54128185083 | $5.40 | Shop at ECS Tuning | ||||
| 11 | Emergency tool elect.window/sliding roof | 1 | 54127199322 | $9.78 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
