Slid.lift. roof-cover/ceiling frame for BMW 3 Series E36 318is (1996)

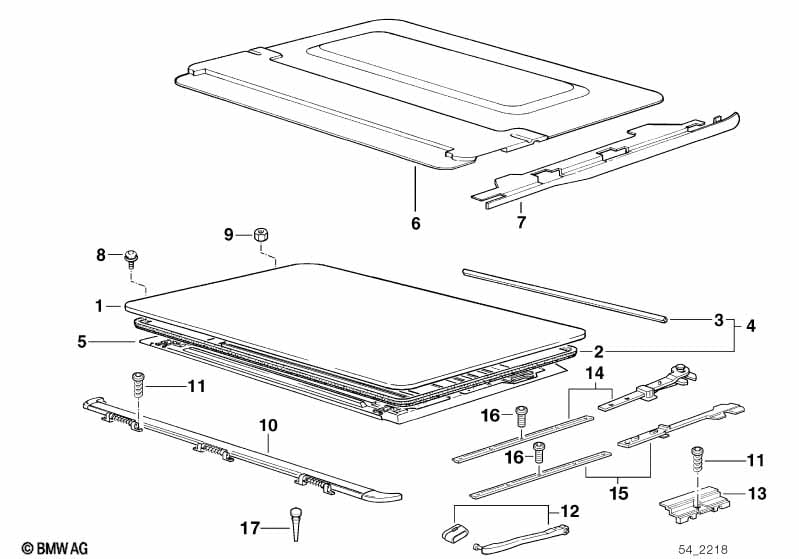

This Slid.lift. roof-cover/ceiling frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sliding lifting roof cover | 1 | 54121960443 | $226.50 | Shop at ECS Tuning | |||||
| 04 | Circul.sliding/lifting roof cover gasket | 1 | 54128165954 | $44.90 | Shop at ECS Tuning | |||||
| 05 | Ceiling frame covered velours | ANTHRAZIT | 1 | 09/1993 | 54122255755 | $116.24 | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH REPAIR KIT F CEILING FRAME MECHANISM |
||||||||||
| 05 | Ceiling frame covered velours | HELLGRAU | 1 | 09/1993 | 54128186796 | $116.24 | ENDED | Shop at ECS Tuning | ||
| ONLY IN CONJUNCTION WITH REPAIR KIT F CEILING FRAME MECHANISM |
||||||||||
| 05 | Ceiling frame covered velours | HELLBEIGE | 1 | 09/1993 | 54128186797 | $116.24 | +core | Shop at ECS Tuning | ||
| ONLY IN CONJUNCTION WITH REPAIR KIT F CEILING FRAME MECHANISM |
||||||||||
| 06 | Trim panel | HELLGRAU | 1 | 09/1993 | 54128186804 | $110.42 | +core | Shop at ECS Tuning | ||
| 06 | Trim panel | HELLBEIGE | 1 | 09/1993 | 54128186805 | $110.42 | +core | Shop at ECS Tuning | ||
| 06 | Trim panel | ANTHRAZIT '93 | 1 | 09/1993 | 54128191173 | $110.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Covering left | 1 | 54128119739 | $4.61 | Shop at ECS Tuning | |||||
| 07 | Covering right | 1 | 54128119740 | $4.61 | Shop at ECS Tuning | |||||
| 08 | Saucer-head screw | M5X8 | 2 | 46632315117 | $0.96 | Shop at ECS Tuning | ||||
| 08 | Torx-bolt with washer | ISA M5X10 | 2 | 54128130016 | $0.75 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M5 | 3 | 54128119975 | $2.28 | Shop at ECS Tuning | ||||
| 10 | Slipstream deflector | 1 | 54128119885 | $117.62 | Shop at ECS Tuning | |||||
| 11 | Torx-bolt for plastic material | L=10MM | 6 | 54128132360 | $0.65 | Shop at ECS Tuning | ||||
| 12 | Repair kit f draft deflector lever | 1 | 54128186798 | $19.00 | Shop at ECS Tuning | |||||
| 13 | Cover | 2 | 54128172091 | $3.86 | Shop at ECS Tuning | |||||
| 15 | Repair kit f ceiling frame mechanism | 1 | 11/1994 | 54128206384 | $45.98 | Shop at ECS Tuning | ||||
| 16 | Torx bolt | ISA M4X5 | X | 54128132369 | $0.65 | Shop at ECS Tuning | ||||
| 17 | Rubber buffer | 2 | 54121926664 | $0.49 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
