Folding top repair kits for BMW 3 Series E36 320i (1995)

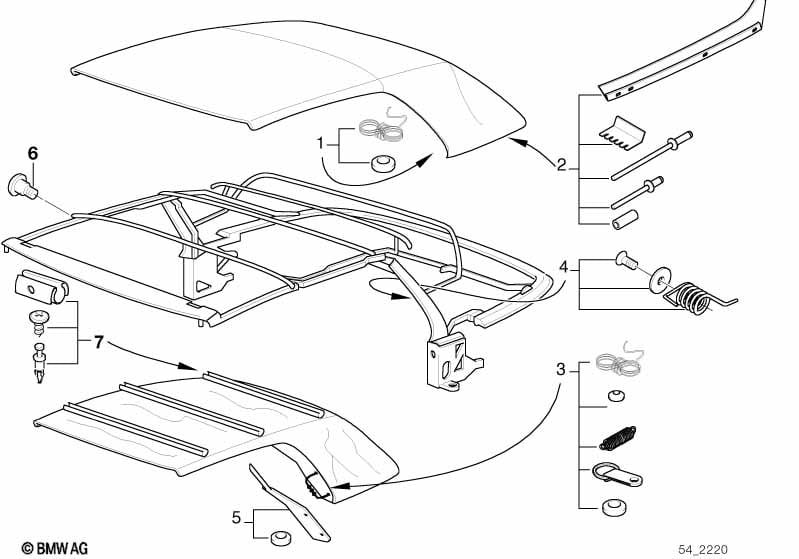

This Folding top repair kits technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit f column C cover tension rope | LILA/MINT | X | 54319068572 | $22.33 | Shop at ECS Tuning | ||||
| CONSISTING OF TENSION ROPE LEAD SEAL REPAIR MANUAL |
||||||||||
| 02 | Repair kit f column C cover insert | X | 54318209781 | $69.08 | SI 540195891 | Shop at ECS Tuning | ||||
| CONSISTING OF COLUMN C INSERT REINFORCEMENT ANGLE RIVET BLIND RIVET ADAPTER |
||||||||||
| 03 | Repair kit f column C ceiling tens.rope | SCHWARZ | X | 54318189989 | $56.70 | Shop at ECS Tuning | ||||
| CONSISTING OF TENSION ROPE TORX-BOLT TENSION SPRING BRACKET LEAD SEAL |
||||||||||
| For vehicles with EM Folding top |
=Yes |
|||||||||
| 04 | Repair kit f corner bow tension spring | X | 54348201077 | $14.45 | Shop at ECS Tuning | |||||
| CONSISTING OF TORX-COUNTERSUNK HEAD SCREW FLAT WASHER LEFT LEG SPRING RIGHT LEG SPRING |
||||||||||
| 05 | Repair kit f column C ceiling insert | X | 54318211902 | $36.92 | SI 540295911 | Shop at ECS Tuning | ||||
| CONSISTING OF COLUMN C INSERT crimp ring |
||||||||||
| 06 | Rep.kit f folding top frame hinges | X | 54318220564 | $343.45 | Shop at ECS Tuning | |||||
| CONSISTING OF BOLT |
||||||||||
| 07 | Repair kit shell headliner at roof arch | X | 54318227354 | $47.03 | SI 540496091 | Shop at ECS Tuning | ||||
