Slid.lift. roof-cover/ceiling frame for BMW 5 Series E39 525i (2003)

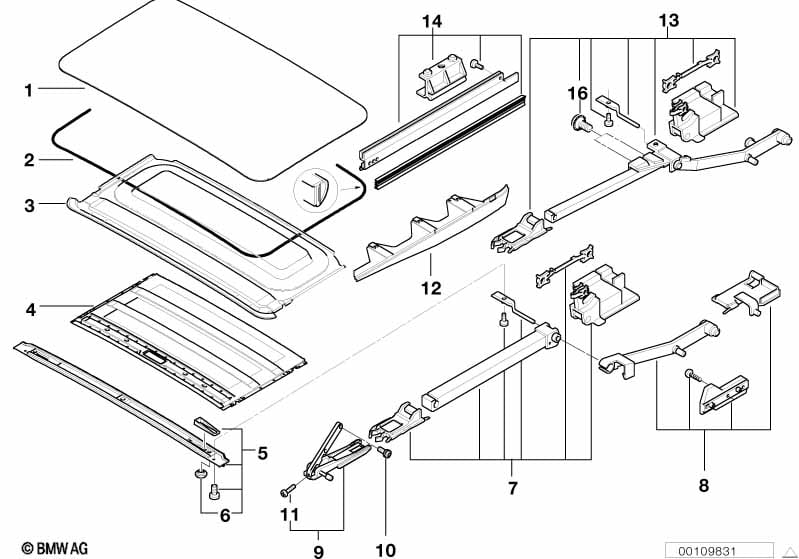

This Slid.lift. roof-cover/ceiling frame technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Oglass slid.lifting roof |
=Yes |
|||||||||
| 01 | Glass cover | VENUSGRAU | 1 | 54128186143 | $477.43 | Shop at ECS Tuning | ||||
| For vehicles with Lift-up and slide-back sunroof, steel |
=Yes |
|||||||||
| 01 | Sliding lifting roof steel cover | 1 | 54128159557 | $286.46 | Shop at ECS Tuning | |||||
| only applies to Surface coated with gliding lacquer |
||||||||||
| 02 | Surrounding seal | L=2883 | 1 | 54107245551 | $30.68 | Shop at ECS Tuning | ||||
| only applies to Surface flock-finished |
||||||||||
| 02 | Circul.sliding/lifting roof cover gasket | L=2730MM | 1 | 54128169710 | $44.90 | Shop at ECS Tuning | ||||
| For vehicles with Lift-up and slide-back sunroof, steel |
=Yes |
|||||||||
| 03 | Trim panel f sliding lifting roof cover | ANTHRAZIT | 1 | 54122491505 | $71.23 | ENDED | Shop at ECS Tuning | |||
| 03 | Trim panel f sliding lifting roof cover | HELLGRAU | 1 | 54128193163 | $71.23 | Shop at ECS Tuning | ||||
| 03 | Trim panel f sliding lifting roof cover | SANDBEIGE | 1 | 54128193164 | $71.23 | Shop at ECS Tuning | ||||
| For vehicles with Oglass slid.lifting roof |
=Yes |
|||||||||
| 04 | Ceiling frame covered velours | ANTHRAZIT | 1 | 54122491514 | $174.56 | Shop at ECS Tuning | ||||
| 04 | Ceiling frame covered velours | HELLGRAU | 1 | 54128203793 | $174.56 | Shop at ECS Tuning | ||||
| 04 | Ceiling frame covered velours | SANDBEIGE | 1 | 54128203794 | $174.56 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Lift-up and slide-back sunroof, steel |
=Yes |
|||||||||
| 04 | Ceiling frame covered velours | ANTHRAZIT | 1 | 54122491513 | $174.56 | Shop at ECS Tuning | ||||
| 04 | Ceiling frame covered velours | HELLGRAU | 1 | 54128203816 | $174.56 | Shop at ECS Tuning | ||||
| 04 | Ceiling frame covered velours | SANDBEIGE | 1 | 54128203817 | $174.56 | ENDED | Shop at ECS Tuning | |||
| 05 | Cross member | 1 | 54128202297 | $48.10 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M5 | 3 | 54128119975 | $2.28 | Shop at ECS Tuning | ||||
| For vehicles with Lift-up and slide-back sunroof, steel |
=Yes |
|||||||||
| 07 | Left control rail | 1 | 54128202277 | $61.47 | Shop at ECS Tuning | |||||
| 07 | Right control rail | 1 | 54128202278 | $61.47 | Shop at ECS Tuning | |||||
| 08 | Repair kit f left slide water channel | 1 | 54128202279 | $42.52 | Shop at ECS Tuning | |||||
| 08 | Repair kit f right slide water channel | 1 | 54128202280 | $42.52 | Shop at ECS Tuning | |||||
| 09 | Sliding piece left | 1 | 54128202293 | $54.63 | Shop at ECS Tuning | |||||
| 09 | Right sliding piece | 1 | 54128202294 | $54.63 | Shop at ECS Tuning | |||||
| 10 | Torx-bolt with washer | ISA M5X10 | 2 | 54128130016 | $0.75 | Shop at ECS Tuning | ||||
| 11 | Fillister head screw | M2,5X10 | 2 | 54128153570 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with Lift-up and slide-back sunroof, steel |
=Yes |
|||||||||
| 12 | Covering left | 1 | 54128159601 | $4.09 | Shop at ECS Tuning | |||||
| 12 | Covering right | 1 | 54128159602 | $4.09 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Oglass slid.lifting roof |
=Yes |
|||||||||
| 13 | Left control rail | 1 | 54128202295 | $61.47 | Shop at ECS Tuning | |||||
| 13 | Right control rail | 1 | 54128202296 | $61.47 | Shop at ECS Tuning | |||||
| 14 | Support for left rubber boot | 1 | 54128202281 | $42.48 | Shop at ECS Tuning | |||||
| 14 | Support for right rubber boot | 1 | 54128202282 | $42.48 | Shop at ECS Tuning | |||||
