Folding sliding roof frame for BMW 3 Series E36 318tds (2000)
This Folding sliding roof frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Complete folding sliding roof frame | SCHWARZ | 1 | 54112267351 | $4693.83 | Shop at ECS Tuning | ||||
| If necessary, with Pos. 2 |
||||||||||
| For vehicles with Drive unit for thread mounting/drive (emergency operation) |
||||||||||
| 02 | Drive unit f folding sliding roof | 1 | 67612267299 | $427.60 | Shop at ECS Tuning | |||||
| For vehicles with Power unit for Allen mounting socket/drive unit (emergency operation) |
||||||||||
| 02 | Drive unit f folding sliding roof | 1 | 67612496368 | $427.60 | Shop at ECS Tuning | |||||
| 03 | Countersunk head screw | M5X30 | 2 | 54112489790 | $3.88 | Shop at ECS Tuning | ||||
| 04 | Rail front left | 1 | 54112268579 | $6.30 | Shop at ECS Tuning | |||||
| 04 | Rail front right | 1 | 54112268580 | $6.39 | ENDED | Shop at ECS Tuning | ||||
| 05 | Lateral rail | 4 | 54112268584 | $8.89 | Shop at ECS Tuning | |||||
| 06 | Centre rear rail | 1 | 54112268583 | $7.52 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| 08 | Torx bolt | ISA M5X9 | X | 54112265999 | $0.65 | Shop at ECS Tuning | ||||
| 09 | Synthetic strip | ANTHRAZIT '93 | 1 | 54112267422 | $43.89 | ENDED | Shop at ECS Tuning | |||
| 10 | Stopper | 2 | 54112493942 | $2.61 | Shop at ECS Tuning | |||||
| 11 | Gate cover | 2 | 54112491201 | $8.07 | ENDED | Shop at ECS Tuning | ||||
| 12 | Folding sliding roof frame gasket | L=3885MM | 1 | 54112267292 | $84.51 | ENDED | Shop at ECS Tuning | |||
| 13 | Outlet hose | L=1760MM | 4 | 54128185083 | $5.40 | Shop at ECS Tuning | ||||
| 14 | Sliding piece left | 2 | 54112267427 | $35.82 | Shop at ECS Tuning | |||||
| 14 | Right sliding piece | 2 | 54112267428 | $35.82 | Shop at ECS Tuning | |||||
| 15 | Actuation unit left | 1 | 54112267313 | $34.11 | Shop at ECS Tuning | |||||
| 15 | Actuation unit right | 1 | 54112267314 | $34.11 | Shop at ECS Tuning | |||||
| 16 | Spacer | 2 | 54112492838 | $7.98 | Shop at ECS Tuning | |||||
| 17 | Fillister-head screw | M5X9 | 8 | 54112492397 | $1.89 | Shop at ECS Tuning | ||||
| 18 | Foil mould | 4 | 54112491208 | $3.98 | ENDED | Shop at ECS Tuning | ||||
| 19 | Foil mould | 4 | 54112491208 | $3.98 | ENDED | Shop at ECS Tuning | ||||
| 21 | Torx bolt | ISA M4X14 | 2 | 54128108881 | $1.28 | Shop at ECS Tuning | ||||
| 22 | Emergency tool electr.sliding roof | 1 | 04/1997 | 54122496348 | $9.78 | Shop at ECS Tuning | ||||
| 23 | retrofit kit net slipstream deflector | 1 | 54112693340 | $403.83 | ENDED | Shop at ECS Tuning | ||||
| 24 | repair kit, slipstream deflector strut | 1 | 54112693318 | $68.03 | Shop at ECS Tuning | |||||
| 25 | Set of profile moldings, net deflector | 1 | 54112693501 | $79.66 | Shop at ECS Tuning | |||||
| 26 | Net insert | 1 | 54112693008 | $93.84 | ENDED | Shop at ECS Tuning | ||||
| 27 | Screw for thermoplastic plastics | ST.3X6 | 4 | 07129901520 | $2.05 | Shop at ECS Tuning | ||||
| 28 | Screw | 5 | 54112496819 | $4.96 | ENDED | Shop at ECS Tuning | ||||
| 29 | Screw | 2 | 54112496818 | $2.91 | ENDED | Shop at ECS Tuning | ||||
| 30 | Set of sliding members | 1 | 54112693502 | $28.28 | Shop at ECS Tuning | |||||
| 31 | Torx bolt | ISA M4X8 | 2 | 07119900799 | $1.53 | Shop at ECS Tuning | ||||
| 32 | Cover for pinion | 1 | 54112267361 | $5.64 | Shop at ECS Tuning | |||||
| 33 | Guide cable | 1 | 54117890018 | $13.57 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318tds Folding sliding roof frame?

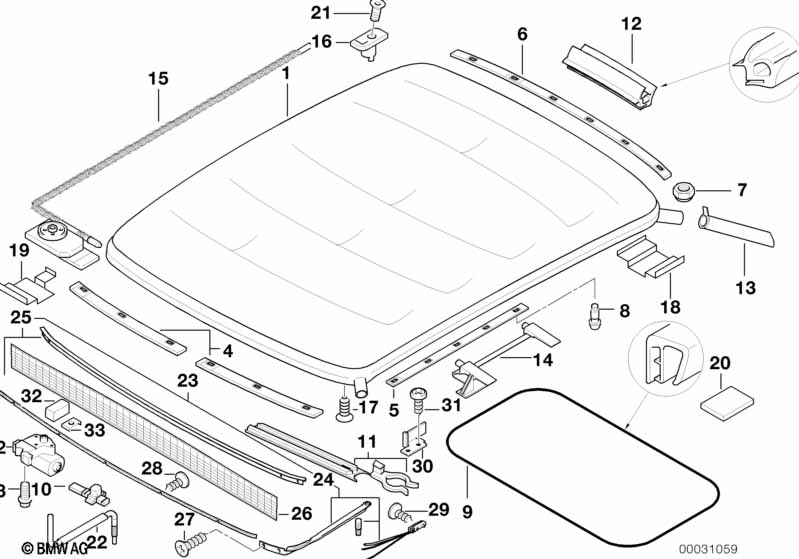

- This technical diagram illustrates the Folding sliding roof frame within the Sliding Roof / Folding Top group for the 3 Series E36 318tds produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Complete folding sliding roof frame (Part #54112267351).
