Softtop, electromech. all-autom. for BMW 3 Series E36 320i (1995)

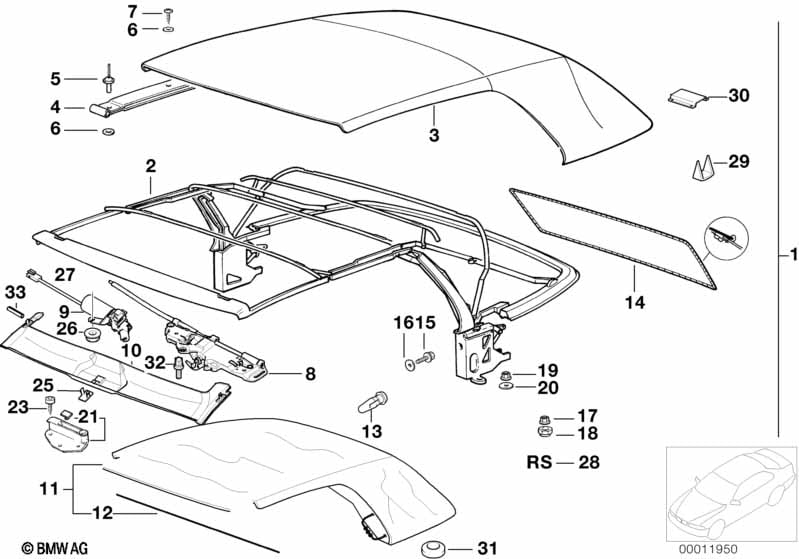

This Softtop, electromech. all-autom. technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Microswitch, see HG61 For vehicles with Softtop, electromech. all-autom. |
S399A=Yes |
||||||||
| 01 | Softtop, electromech. all-autom. | MAGENTA | 1 | 54348215961 | $5935.16 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Cover, folding top | MAGENTA | 1 | 54318217424 | $2165.30 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i Softtop, electromech. all-autom.?
- This technical diagram illustrates the Softtop, electromech. all-autom. within the Sliding Roof / Folding Top group for the 3 Series E36 320i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Softtop, electromech. all-autom. (Part #54348215961).
- Which models use the hardware listed in this Softtop, electromech. all-autom.?
- The hardware and components featured in the Softtop, electromech. all-autom. are specific to the 3 Series E36 320i produced during 1995. These technical specifications ensure that parts like the Softtop, electromech. all-autom. (54348215961) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Softtop, electromech. all-autom. assembly?
- Each item in the Softtop, electromech. all-autom. corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Softtop, electromech. all-autom. by locating its position on the schematic, which then links to the official BMW part number 54348215961 for the Sliding Roof / Folding Top section.
