Sliding lifting roof frame for BMW 7 Series E38 740i (1996)

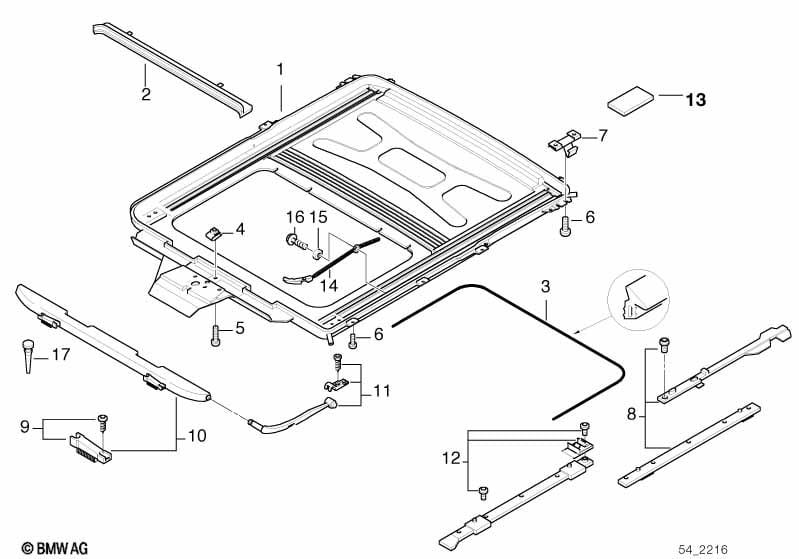

This Sliding lifting roof frame technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Oglass slid.lifting roof |
=Yes |
|||||||||
| 01 | Frame sliding-lifting roof complete | 1 | 09/1998 | 54128254266 | $1152.42 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bracket f radio burglar alarm module | 1 | 09/1998 | 65758363095 | $3.47 | Shop at ECS Tuning | ||||
| if necessary CEILING FRAME COVERED REPAIR KIT F CEILING FRAME MECHANISM SLIDING ROOF DRIVE UNIT WITH MODULE |
||||||||||
| -- | Screw | TS4X10MM | 2 | 09/1998 | 07129907533 | Shop at ECS Tuning | ||||
| if necessary CEILING FRAME COVERED REPAIR KIT F CEILING FRAME MECHANISM SLIDING ROOF DRIVE UNIT WITH MODULE |
||||||||||
| For vehicles with Lift-up and slide-back sunroof, steel |
=Yes |
|||||||||
| 01 | Frame sliding-lifting roof complete | 1 | 09/1998 | 54128254272 | $1152.42 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Bracket f radio burglar alarm module | 1 | 09/1998 | 65758363095 | $3.47 | Shop at ECS Tuning | ||||
| if necessary CEILING FRAME COVERED REPAIR KIT F CEILING FRAME MECHANISM SLIDING ROOF DRIVE UNIT WITH MODULE |
||||||||||
| -- | Screw | TS4X10MM | 2 | 09/1998 | 07129907533 | Shop at ECS Tuning | ||||
| if necessary CEILING FRAME COVERED REPAIR KIT F CEILING FRAME MECHANISM SLIDING ROOF DRIVE UNIT WITH MODULE |
||||||||||
| For vehicles with Oglass slid.lifting roof |
=Yes |
|||||||||
| 02 | Rain gutter | 1 | 54128214991 | $30.88 | Shop at ECS Tuning | |||||
| For vehicles with Lift-up and slide-back sunroof, steel |
=Yes |
|||||||||
| 02 | Rain gutter | 1 | 54128150133 | $30.88 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Sliding lifting roof frame gasket | L=3776MM | 1 | 54121938369 | $20.05 | Shop at ECS Tuning | ||||
| 04 | Nut holder | M5 | 1 | 51161849299 | $0.98 | Shop at ECS Tuning | ||||
| 05 | Torx bolt | ISA M5X32 | 1 | 54128116590 | $0.75 | Shop at ECS Tuning | ||||
| 06 | Torx bolt | ISA M5X12 | X | 54128163681 | $0.37 | Shop at ECS Tuning | ||||
| 07 | Clamp | 2 | 54138120576 | $1.84 | Shop at ECS Tuning | |||||
| For vehicles with Lift-up and slide-back sunroof, steel |
=Yes |
|||||||||
| 08 | Repair kit f ceiling frame mechanism | 1 | 54128171536 | $46.60 | Shop at ECS Tuning | |||||
| 09 | Repair kit f draft deflector bearing | 1 | 54128173104 | $23.32 | Shop at ECS Tuning | |||||
| 10 | Slipstream deflector | 1 | 54128150131 | $130.92 | Shop at ECS Tuning | |||||
| 11 | Repair kit f draft deflector lever | 1 | 54128173107 | $45.98 | +core | Shop at ECS Tuning | ||||
| For vehicles with Oglass slid.lifting roof |
=Yes |
|||||||||
| 12 | Repair kit f ceiling frame mechanism | 1 | 54128209797 | $95.88 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | set of stops | 1 | 54128158674 | $10.72 | Shop at ECS Tuning | |||||
| 13 | Set felt strip self-adhesive | X | 51452353024 | Shop at ECS Tuning | ||||||
| For vehicles with Oglass slid.lifting roof |
=Yes |
|||||||||
| 14 | Left float | 1 | 54128214993 | $24.34 | Shop at ECS Tuning | |||||
| 14 | Right float | 1 | 54128214994 | $24.34 | ENDED | Shop at ECS Tuning | ||||
| 15 | Spacer bush | 2 | 54128175818 | $1.28 | Shop at ECS Tuning | |||||
| 16 | Phillips screw f plastic material | L=16MM | 2 | 54128217355 | $0.75 | Shop at ECS Tuning | ||||
| 17 | Rubber buffer | 2 | 54121926664 | $0.49 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
