Slid.lift. roof-cover/ceiling frame for BMW 3 Series E46 318i (2004)

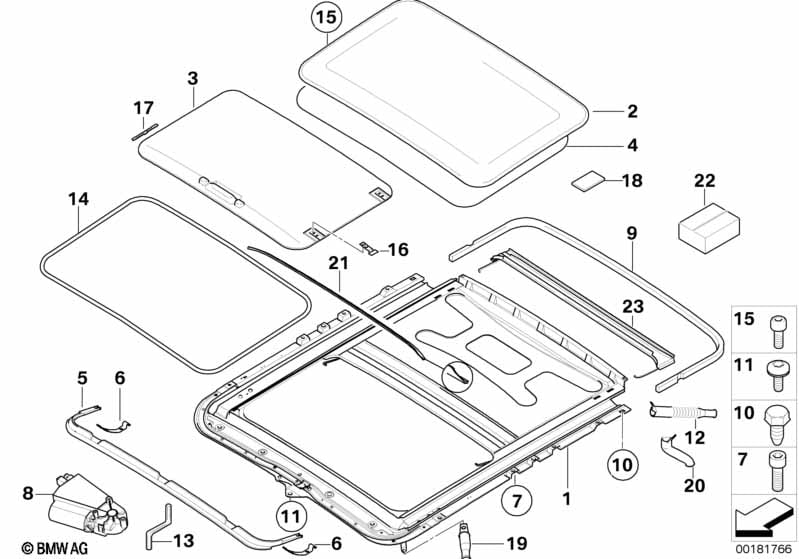

This Slid.lift. roof-cover/ceiling frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Frame sliding-lifting roof complete | 1 | 09/2002 | 54137134535 | $890.58 | Shop at ECS Tuning | ||||
| 02 | Glass cover | VENUSGRAU | 1 | 54138217999 | $443.57 | Shop at ECS Tuning | ||||
| 03 | Ceiling frame covered velours | HELLGRAU | 1 | 09/2003 | 54137134541 | $136.27 | Shop at ECS Tuning | |||
| 03 | Ceiling frame covered velours | HELLBEIGE | 1 | 09/2003 | 54137134542 | $136.27 | Shop at ECS Tuning | |||
| 03 | Ceiling frame covered velours | ANTHRAZIT | 1 | 09/2003 | 54137134543 | $136.27 | Shop at ECS Tuning | |||
| 04 | Circul.sliding/lifting roof cover gasket | 1 | 54138218001 | $53.69 | Shop at ECS Tuning | |||||
| 05 | Slipstream deflector | 1 | 54138217992 | $117.62 | Shop at ECS Tuning | |||||
| 06 | Deflector spring | 1 | 54138217993 | $9.73 | Shop at ECS Tuning | |||||
| 07 | Torx bolt | ISA M4X7 | X | 54138217997 | $6.70 | Shop at ECS Tuning | ||||
| 08 | Sliding roof drive unit with module | 1 | 09/2002 | 67616928756 | $316.19 | Shop at ECS Tuning | ||||
| 09 | Sliding lifting roof frame gasket | 1 | 54138217996 | $42.37 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X14 | X | 07/2007 | 54138232917 | $8.30 | ENDED | Shop at ECS Tuning | ||
| 10 | Replacement screw | ST-6,8X12,5 | X | 07149143635 | $2.62 | Shop at ECS Tuning | ||||
| 11 | Fillister head screw | M5X28 | X | 54107209205 | $1.98 | Shop at ECS Tuning | ||||
| 12 | Water outlet hose | 1 | 51738197504 | $2.38 | Shop at ECS Tuning | |||||
| 12 | Water outlet hose rear | L=790MM | 1 | 54128236609 | $4.32 | Shop at ECS Tuning | ||||
| 13 | Emergency tool elect.window/sliding roof | 1 | 54127199322 | $9.78 | Shop at ECS Tuning | |||||
| 14 | Synthetic strip | SCHWARZ | 1 | 54102497175 | $25.08 | ENDED | Shop at ECS Tuning | |||
| 14 | Synthetic strip | HELLGRAU | 1 | 54128226606 | $25.08 | Shop at ECS Tuning | ||||
| 14 | Synthetic strip | HELLBEIGE | 1 | 54128226607 | $25.08 | Shop at ECS Tuning | ||||
| 15 | Torx bolt | ISA M5X8 | 1 | 54138246028 | $9.44 | Shop at ECS Tuning | ||||
| 16 | Sliding piece left | 2 | 09/2003 | 54137134516 | $7.59 | Shop at ECS Tuning | ||||
| 17 | Right sliding piece | 2 | 54138246025 | $13.38 | Shop at ECS Tuning | |||||
| 18 | Set felt strip self-adhesive | 1 | 05/2006 | 51452353024 | Shop at ECS Tuning | |||||
| 21 | Gasket | 1 | 54138246026 | $14.90 | Shop at ECS Tuning | |||||
| 23 | Rain gutter | 1 | 54137134547 | $49.80 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Slid.lift. roof-cover/ceiling frame?
- This technical diagram illustrates the Slid.lift. roof-cover/ceiling frame within the Sliding Roof / Folding Top group for the 3 Series E46 318i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Frame sliding-lifting roof complete (Part #54137134535).
- Which models use the hardware listed in this Slid.lift. roof-cover/ceiling frame?
- The hardware and components featured in the Slid.lift. roof-cover/ceiling frame are specific to the 3 Series E46 318i produced during 2004. These technical specifications ensure that parts like the Frame sliding-lifting roof complete (54137134535) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Slid.lift. roof-cover/ceiling frame assembly?
- Each item in the Slid.lift. roof-cover/ceiling frame corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Frame sliding-lifting roof complete by locating its position on the schematic, which then links to the official BMW part number 54137134535 for the Sliding Roof / Folding Top section.
