Sliding roof for BMW 1502-2002tii 1600 (1971)

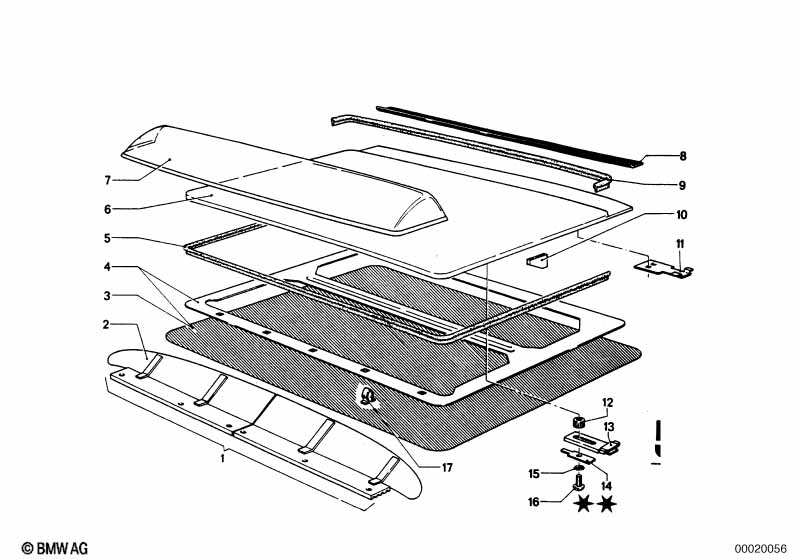

This Sliding roof technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1600. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Headlining | B=1350MM | X | 51951817302 | $48.76 | Shop at ECS Tuning | ||||
| 04 | Ceiling frame | 1 | 03/1966 | 07/1977 | 54129434109 | ENDED | Shop at ECS Tuning | |||
| 05 | sealing | GRAU | 1 | 54129734131 | $38.04 | Shop at ECS Tuning | ||||
| 06 | Cover | 1 | 03/1966 | 07/1977 | 54121801145 | ENDED | Shop at ECS Tuning | |||
| 07 | Slipstream deflector | 1 | 72601821966 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Gasket | 1 | 72601857053 | $10.95 | Shop at ECS Tuning | |||||
| 08 | Rubber seal | 1 | 54121801211 | $25.66 | Shop at ECS Tuning | |||||
| 09 | sealing | GRAU | 1 | 54129734130 | $38.04 | Shop at ECS Tuning | ||||
| 10 | Sliding piece | 2 | 54129734122 | $2.43 | Shop at ECS Tuning | |||||
| 11 | Reinforcement | 2 | 54129734161 | ENDED | Shop at ECS Tuning | |||||
| 12 | Knurled head nut | M10X1 | 4 | 54129734162 | $5.43 | Shop at ECS Tuning | ||||
| 13 | Guide | 2 | 54121815185 | $9.76 | ENDED | Shop at ECS Tuning | ||||
| 14 | Securing plate | 2 | 54121815189 | $4.75 | Shop at ECS Tuning | |||||
| 15 | Tooth washer | A5,1 | 4 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 16 | Fillister head screw | M5X16 | 4 | 07119906415 | $0.16 | Shop at ECS Tuning | ||||
| 17 | Clamp | 5 | 54129634116 | $1.51 | Shop at ECS Tuning | |||||
