Sliding roof for BMW 1502-2002tii 2002tii (1973)

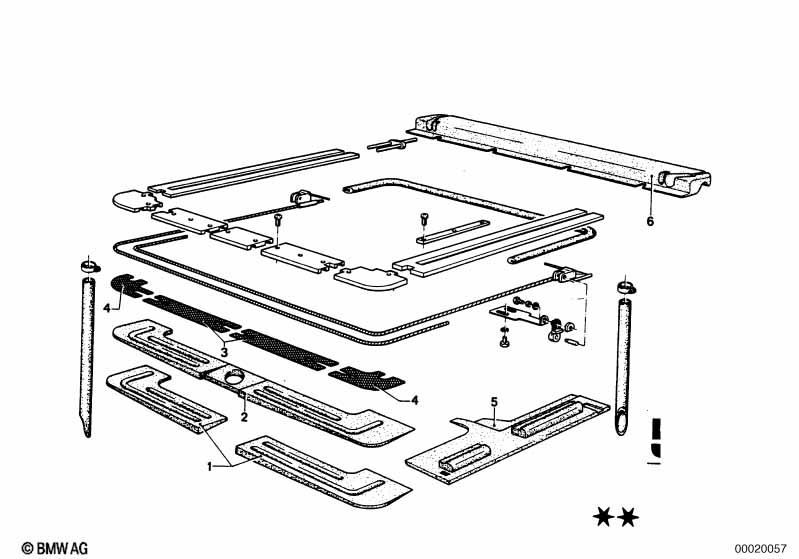

This Sliding roof technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Cover | 1 | 54121837946 | ENDED | Shop at ECS Tuning | |||||
| 03 | Pad | 2 | 54129734169 | ENDED | Shop at ECS Tuning | |||||
| 04 | Pad | 2 | 54129734170 | ENDED | Shop at ECS Tuning | |||||
| 05 | Covering left | 1 | 03/1966 | 07/1977 | 54121837947 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering right | 1 | 03/1966 | 07/1977 | 54121837948 | ENDED | Shop at ECS Tuning | |||
| 06 | Sound insulating roof rear | 1 | 03/1966 | 07/1977 | 51481820547 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
