Sliding roof for BMW 2.5CS-3.0CSL 3.0CS (1973)

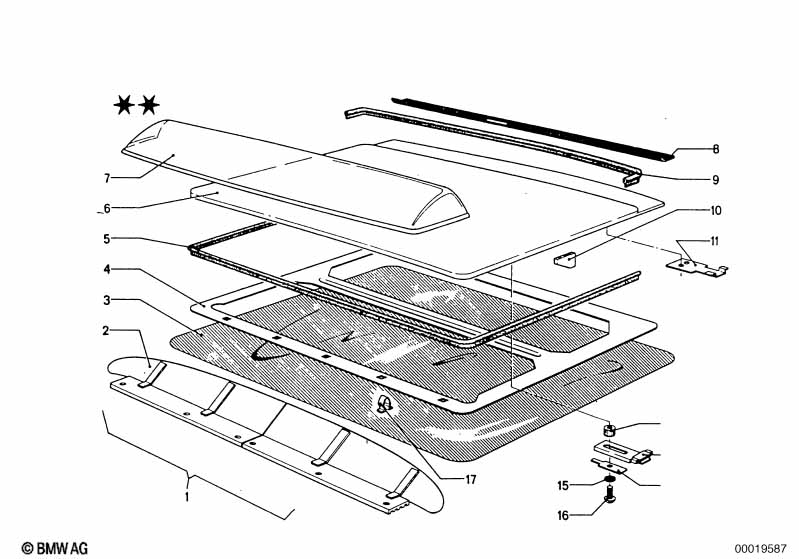

This Sliding roof technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sliding roof | GOLDE | 1 | 54121811038 | ENDED | Shop at ECS Tuning | ||||
| 01 | Sliding roof | GOLDE | 1 | 54131811037 | ENDED | Shop at ECS Tuning | ||||
| 02 | Slipstream deflector | 1 | 54121801308 | ENDED | Shop at ECS Tuning | |||||
| 03 | Headlining | 1 | 54129734112 | ENDED | Shop at ECS Tuning | |||||
| 04 | sealing | GRAU | 1 | 54129734131 | $38.04 | Shop at ECS Tuning | ||||
| 05 | sealing | SCHWARZ | 1 | 54121801431 | $36.80 | Shop at ECS Tuning | ||||
| 06 | Cover | 1 | 54129734150 | $329.04 | ENDED | Shop at ECS Tuning | ||||
| 07 | sealing | GRAU | 1 | 54129734130 | $38.04 | Shop at ECS Tuning | ||||
| 07 | Slipstream deflector | 1 | 72601821966 | ENDED | Shop at ECS Tuning | |||||
| 08 | Rubber seal | 1 | 54121801211 | $25.66 | Shop at ECS Tuning | |||||
| 09 | sealing | SCHWARZ | 1 | 54121801343 | $17.43 | Shop at ECS Tuning | ||||
| 10 | Sliding piece | 2 | 54129734122 | $2.43 | Shop at ECS Tuning | |||||
| 11 | Reinforcement | 2 | 54129734161 | ENDED | Shop at ECS Tuning | |||||
| 12 | Knurled head nut | M10X1 | 4 | 54129734162 | $5.43 | Shop at ECS Tuning | ||||
| 13 | Guide | 2 | 54129734136 | $11.16 | ENDED | Shop at ECS Tuning | ||||
| 14 | Securing plate | 2 | 54121815189 | $4.75 | Shop at ECS Tuning | |||||
| 17 | Clamp | 7 | 54129634116 | $1.51 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
