Sliding roof for BMW 2.5CS-3.0CSL 3.0CS (1973)

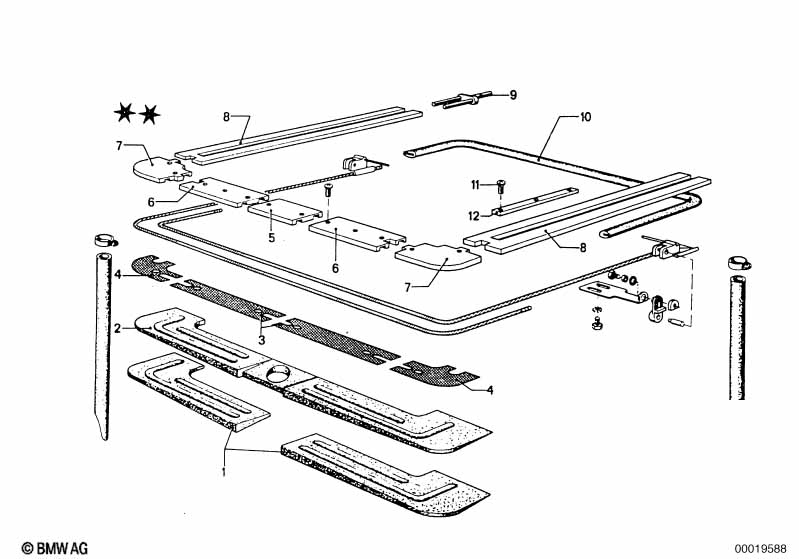

This Sliding roof technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel | 1 | 51441810975 | ENDED | Shop at ECS Tuning | |||||
| 02 | Trim panel | 1 | 51441810976 | ENDED | Shop at ECS Tuning | |||||
| 03 | Pad | 2 | 54129734169 | ENDED | Shop at ECS Tuning | |||||
| 04 | Pad | 2 | 54129734170 | ENDED | Shop at ECS Tuning | |||||
| 05 | Covering center | 1 | 54129734163 | ENDED | Shop at ECS Tuning | |||||
| 05 | Cover | 1 | 54139734164 | ENDED | Shop at ECS Tuning | |||||
| 06 | Covering left | 1 | 54129734165 | ENDED | Shop at ECS Tuning | |||||
| 06 | Covering right | 1 | 54129734166 | $72.71 | Shop at ECS Tuning | |||||
| 07 | Covering left | 1 | 54129734167 | Shop at ECS Tuning | ||||||
| 07 | Covering right | 1 | 54129734168 | ENDED | Shop at ECS Tuning | |||||
| 08 | Guide rail | 1 | 54129734114 | ENDED | Shop at ECS Tuning | |||||
| 08 | Guide rail | 1 | 54129734116 | ENDED | Shop at ECS Tuning | |||||
| 08 | Guide rail | 1 | 54139734113 | ENDED | Shop at ECS Tuning | |||||
| 08 | Guide rail | 1 | 54139734115 | ENDED | Shop at ECS Tuning | |||||
| 09 | Holder | 2 | 54129734118 | $9.94 | ENDED | Shop at ECS Tuning | ||||
| 09 | Holder | 2 | 54139734117 | ENDED | Shop at ECS Tuning | |||||
| 10 | Synthetic strip | X | 54129734126 | $1.95 | Shop at ECS Tuning | |||||
| 11 | Recessed oval head sheet-metal screw | ST3,9X9,5 | 16 | 07119902454 | $0.18 | Shop at ECS Tuning | ||||
| 12 | Intermediate piece | 2 | 54129734171 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
