Sliding roof for BMW 2.5CS-3.0CSL 3.0CS (1973)

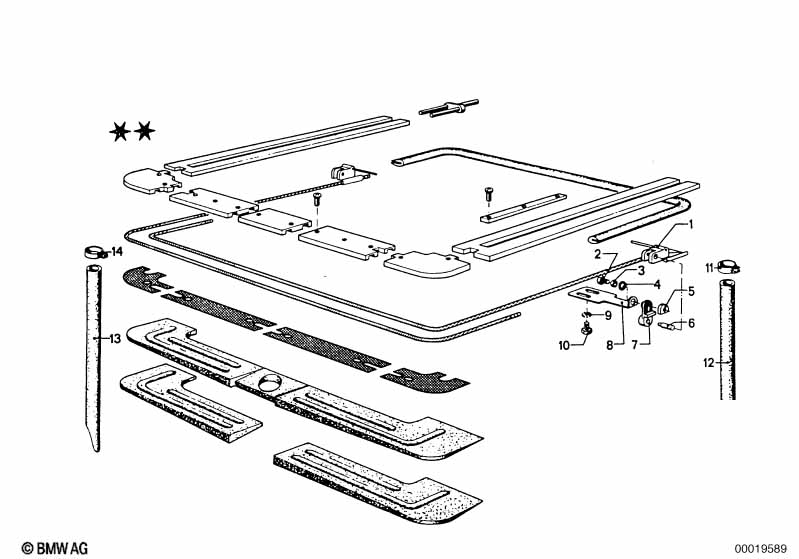

This Sliding roof technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide | ELEKTR. SHD | 1 | 54121815143 | $124.37 | Shop at ECS Tuning | ||||
| 01 | Guide | ELEKTR. SHD | 1 | 54121815144 | $124.37 | Shop at ECS Tuning | ||||
| 01 | Guide | MECH. SHD | 1 | 12/1968 | 11/1975 | 54121815145 | $124.37 | Shop at ECS Tuning | ||
| Only in combination with the mechanical SHD guide 54 12 1 815 146 |
||||||||||
| 01 | Guide | MECH. SHD | 1 | 12/1968 | 11/1975 | 54121815146 | $124.37 | Shop at ECS Tuning | ||
| Only in combination with the mechanical SHD guide: 54 12 1 815 145 |
||||||||||
| 02 | Screw | 2 | 54121813693 | Shop at ECS Tuning | ||||||
| 03 | Bush | 2 | 54121813694 | $1.97 | Shop at ECS Tuning | |||||
| 04 | Securing plate | 2 | 54129734159 | Shop at ECS Tuning | ||||||
| 05 | Nut | 2 | 54129734160 | ENDED | Shop at ECS Tuning | |||||
| 06 | Dowel pin | 5 M6X14 | 2 | 07119942072 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lever | 2 | 54121801410 | ENDED | Shop at ECS Tuning | |||||
| 08 | Support | 2 | 54129734175 | Shop at ECS Tuning | ||||||
| 09 | Washer | A4,3 | 4 | 07119936610 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M4X6 | 4 | 07119913071 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L15-19 | 2 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 12 | Hose | 2 | 54129734173 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hose | 2 | 54129734172 | ENDED | Shop at ECS Tuning | |||||
| 14 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
