Electr.drive sliding roof for BMW 2.5CS-3.0CSL 3.0CS (1973)

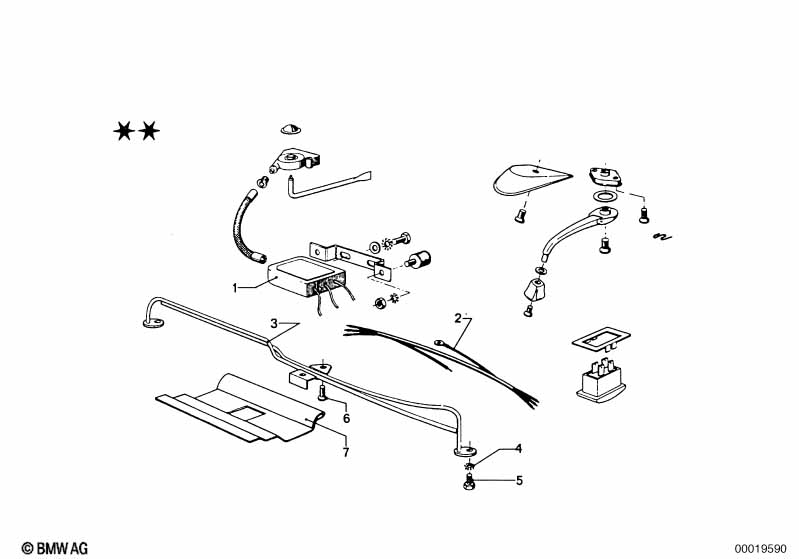

This Electr.drive sliding roof technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.drive | 1 | 12/1968 | 11/1975 | 54121352715 | $235.48 | ENDED | Shop at ECS Tuning | ||
| 01 | Electr.drive | 1 | 04/1971 | 11/1975 | 54121358021 | ENDED | Shop at ECS Tuning | |||
| 02 | Cable | 1 | 61121358368 | ENDED | Shop at ECS Tuning | |||||
| 02 | Wiring set | 1 | 12/1968 | 11/1975 | 61121352392 | ENDED | Shop at ECS Tuning | |||
| 03 | Carrier | 1 | 12/1968 | 11/1975 | 54139734174 | ENDED | Shop at ECS Tuning | |||
| 03 | Carrier | 1 | 04/1971 | 11/1975 | 54121832598 | ENDED | Shop at ECS Tuning | |||
| 04 | Tooth washer | A4,3 | 2 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M4X12 | 2 | 07119913084 | $0.11 | ENDED | Shop at ECS Tuning | |||
| 06 | Csk.fillister head srew | AM4X25 | 2 | 07119901726 | ENDED | Shop at ECS Tuning | ||||
| 07 | Support | 1 | 54121811040 | ENDED | Shop at ECS Tuning | |||||
| 07 | Support | 1 | 54121832390 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CS Electr.drive sliding roof?
- This technical diagram illustrates the Electr.drive sliding roof within the Sliding Roof / Folding Top group for the 2.5CS-3.0CSL 3.0CS produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Electr.drive (Part #54121352715).
- Which models use the hardware listed in this Electr.drive sliding roof?
- The hardware and components featured in the Electr.drive sliding roof are specific to the 2.5CS-3.0CSL 3.0CS produced during 1973. These technical specifications ensure that parts like the Electr.drive (54121352715) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Electr.drive sliding roof assembly?
- Each item in the Electr.drive sliding roof corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CS, you can identify the Electr.drive by locating its position on the schematic, which then links to the official BMW part number 54121352715 for the Sliding Roof / Folding Top section.
