Electr.drive sliding roof for BMW 2.5CS-3.0CSL 3.0CS (1973)

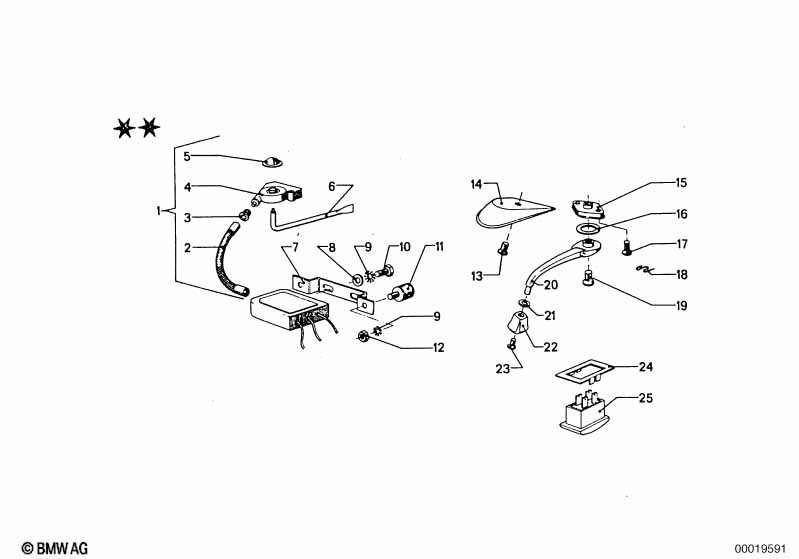

This Electr.drive sliding roof technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.drive sliding roof | 1 | 12/1968 | 11/1975 | 54139734141 | ENDED | Shop at ECS Tuning | |||
| 02 | Bowden cable | 1 | 12/1968 | 11/1975 | 54129734155 | $32.09 | ENDED | Shop at ECS Tuning | ||
| 02 | Connection piece | 1 | 04/1971 | 11/1975 | 54121863119 | $12.17 | ENDED | Shop at ECS Tuning | ||
| 03 | Screw | 2 | 12/1968 | 11/1975 | 54139734156 | ENDED | Shop at ECS Tuning | |||
| 04 | Electr.sliding-lifting roof transmission | 1 | 12/1968 | 11/1975 | 54139634173 | ENDED | Shop at ECS Tuning | |||
| 04 | Electr.sliding-lifting roof transmission | 1 | 04/1971 | 11/1975 | 54139734134 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering cap | 1 | 12/1968 | 11/1975 | 54121806989 | ENDED | Shop at ECS Tuning | |||
| 06 | Emergency mechanism | 1 | 54121834838 | $27.90 | ENDED | Shop at ECS Tuning | ||||
| 07 | Support | 1 | 12/1968 | 11/1975 | 54139634175 | ENDED | Shop at ECS Tuning | |||
| 08 | Washer | A6,4-ZNNIV SI | 2 | 12/1968 | 11/1975 | 07119904202 | Shop at ECS Tuning | |||
| 09 | Set spring washer 20 | B6 | 4 | 12/1968 | 11/1975 | 07509064025 | ENDED | Shop at ECS Tuning | ||
| 10 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 12/1968 | 11/1975 | 07119905524 | $0.27 | Shop at ECS Tuning | ||
| 11 | Rubber Mounting | 2 | 12/1968 | 11/1975 | 54139634176 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex nut | M6-8-ZNNIV SI | 2 | 12/1968 | 11/1975 | 07119905543 | $0.38 | Shop at ECS Tuning | ||
| 13 | Fillister head self-tapping screw | ST4,2X19 | 1 | 12/1968 | 11/1975 | 07119904431 | $0.36 | Shop at ECS Tuning | ||
| 14 | Recessed handle | 1 | 12/1968 | 11/1975 | 54129634115 | $17.16 | Shop at ECS Tuning | |||
| 15 | Trim ring | 1 | 12/1968 | 11/1975 | 54129734133 | $91.89 | ENDED | Shop at ECS Tuning | ||
| 16 | Positioning plate | 1 | 12/1968 | 11/1975 | 54129634177 | $1.14 | Shop at ECS Tuning | |||
| 17 | Countersunk head screw | M4X16 | 2 | 12/1968 | 11/1975 | 07119928103 | $1.40 | ENDED | Shop at ECS Tuning | |
| 18 | Spring | 1 | 12/1968 | 11/1975 | 54129634112 | $1.20 | Shop at ECS Tuning | |||
| Spring for hand crank 9631110; in case of problems with the installation, the BMW Group Classic workshop would be able to install it. Your contact can be found on the BMW Classic homepage: www.bmwgroup-classic.com |
||||||||||
| 19 | Csk.fillister head srew | M4X10 | 1 | 12/1968 | 11/1975 | 07119901692 | $0.17 | ENDED | Shop at ECS Tuning | |
| 20 | Crank | 1 | 12/1968 | 11/1975 | 54129634110 | $31.96 | ENDED | Shop at ECS Tuning | ||
| 21 | Wave washer | B16 | 1 | 12/1968 | 11/1975 | 07119932162 | $0.24 | Shop at ECS Tuning | ||
| 22 | Button | 1 | 12/1968 | 11/1975 | 54129634114 | $2.43 | ENDED | Shop at ECS Tuning | ||
| 23 | Fillister head screw | M4X8 | 1 | 12/1968 | 11/1975 | 07119906407 | $1.64 | Shop at ECS Tuning | ||
| 24 | Switch cover | 1 | 12/1968 | 11/1975 | 54139734125 | ENDED | Shop at ECS Tuning | |||
| 24 | Switch cover | 1 | 04/1971 | 11/1975 | 51411822904 | $2.34 | ENDED | Shop at ECS Tuning | ||
| 25 | Switch | 1 | 12/1968 | 11/1975 | 61311355415 | $45.17 | Shop at ECS Tuning | |||
| 25 | Rocker switch | 1 | 04/1971 | 11/1975 | 61311356006 | $47.30 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CS Electr.drive sliding roof?
- This technical diagram illustrates the Electr.drive sliding roof within the Sliding Roof / Folding Top group for the 2.5CS-3.0CSL 3.0CS produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Electr.drive sliding roof (Part #54139734141).
- Which models use the hardware listed in this Electr.drive sliding roof?
- The hardware and components featured in the Electr.drive sliding roof are specific to the 2.5CS-3.0CSL 3.0CS produced during 1973. These technical specifications ensure that parts like the Electr.drive sliding roof (54139734141) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Electr.drive sliding roof assembly?
- Each item in the Electr.drive sliding roof corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CS, you can identify the Electr.drive sliding roof by locating its position on the schematic, which then links to the official BMW part number 54139734141 for the Sliding Roof / Folding Top section.
