Sliding roof for BMW 2500-3.3Li 2500 (1971)

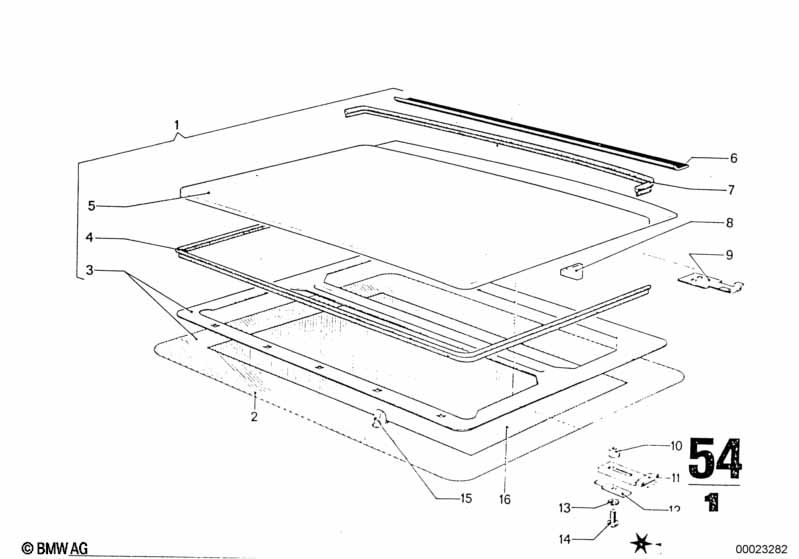

This Sliding roof technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit sliding roof | 1 | 54129734100 | ENDED | Shop at ECS Tuning | |||||
| 01 | Repair kit sliding roof electr. | 1 | 54129734102 | ENDED | Shop at ECS Tuning | |||||
| 02 | Headlining | B=1350MM | X | 51951817302 | $48.76 | Shop at ECS Tuning | ||||
| 03 | Ceiling frame | 1 | 54129734109 | $118.30 | ENDED | Shop at ECS Tuning | ||||
| 04 | sealing | GRAU | 1 | 54129734131 | $38.04 | Shop at ECS Tuning | ||||
| 05 | Cover | 1 | 54129734140 | $408.46 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber seal | 1 | 54121801211 | $25.66 | Shop at ECS Tuning | |||||
| 07 | sealing | GRAU | 1 | 54129734130 | $38.04 | Shop at ECS Tuning | ||||
| 08 | Sliding piece | 2 | 54129734122 | $2.43 | Shop at ECS Tuning | |||||
| 09 | Reinforcement | 2 | 54129734161 | ENDED | Shop at ECS Tuning | |||||
| 10 | Knurled head nut | M10X1 | 4 | 54129734162 | $5.43 | Shop at ECS Tuning | ||||
| 11 | Guide | 2 | 54121815185 | $9.76 | ENDED | Shop at ECS Tuning | ||||
| 12 | Securing plate | 2 | 54121815189 | $4.75 | Shop at ECS Tuning | |||||
| 15 | Clamp | 7 | 54129634116 | $1.51 | Shop at ECS Tuning | |||||
| 16 | Bottom panel sliding roof | 1 | 54129734107 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
