Electr.drive sliding roof for BMW 2500-3.3Li 3.0S (1977)

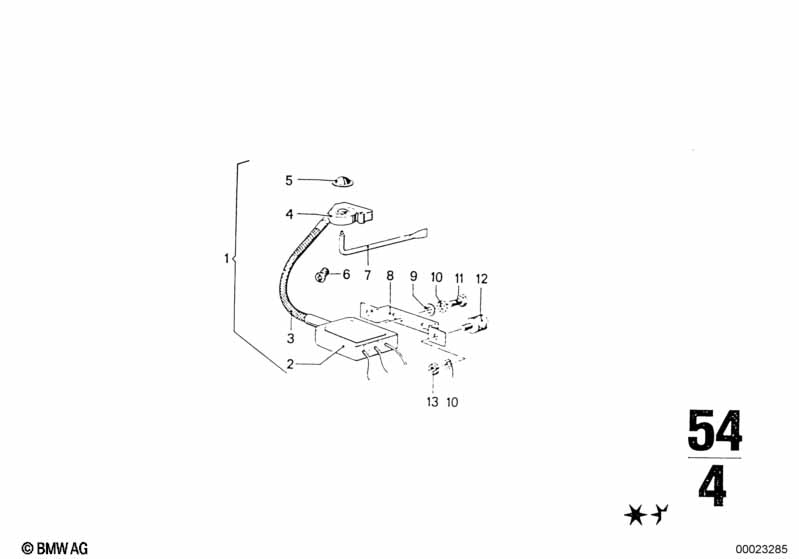

This Electr.drive sliding roof technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Bowden cable | 1 | 54139734132 | $38.81 | Shop at ECS Tuning | |||||
| 04 | Electr.sliding-lifting roof transmission | 1 | 54139734134 | ENDED | Shop at ECS Tuning | |||||
| 05 | Screw | 2 | 54139734156 | ENDED | Shop at ECS Tuning | |||||
| 06 | Covering cap | 1 | 54121806989 | ENDED | Shop at ECS Tuning | |||||
| 07 | Emergency mechanism | 1 | 54121834838 | $27.90 | ENDED | Shop at ECS Tuning | ||||
| 09 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 10 | Set spring washer 20 | B6 | 4 | 07509064025 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 12 | Rubber Mounting | 2 | 54139634176 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
