Sliding roof control for BMW 2500-3.3Li 2800 (1975)

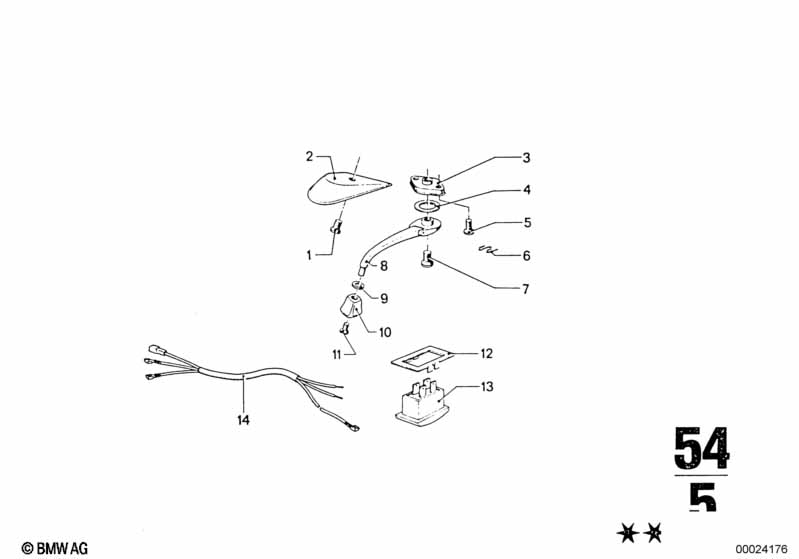

This Sliding roof control technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Csk.lenshead screw | ST4,8X13 | 2 | 07119902236 | $0.16 | ENDED | Shop at ECS Tuning | |||
| 02 | Recessed handle | 1 | 54129634115 | $17.16 | Shop at ECS Tuning | |||||
| 03 | Trim ring | 1 | 54129734133 | $91.89 | ENDED | Shop at ECS Tuning | ||||
| 04 | Positioning plate | 1 | 54129634177 | $1.14 | Shop at ECS Tuning | |||||
| 05 | Countersunk head screw | M4X16 | 2 | 07119928103 | $1.40 | ENDED | Shop at ECS Tuning | |||
| 06 | Spring | 1 | 54129634112 | $1.20 | Shop at ECS Tuning | |||||
| Spring for hand crank 9631110; in case of problems with the installation, the BMW Group Classic workshop would be able to install it. Your contact can be found on the BMW Classic homepage: www.bmwgroup-classic.com |
||||||||||
| 07 | Csk.fillister head srew | M4X10 | 1 | 07119901692 | $0.17 | ENDED | Shop at ECS Tuning | |||
| 08 | Crank | 1 | 54129634110 | $31.96 | ENDED | Shop at ECS Tuning | ||||
| 09 | Wave washer | B6 | 1 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 10 | Button | 1 | 54129634114 | $2.43 | ENDED | Shop at ECS Tuning | ||||
| 11 | Fillister head screw | M4X8 | 1 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 12 | Switch cover | 1 | 54139734125 | ENDED | Shop at ECS Tuning | |||||
| 13 | Switch | 1 | 08/1968 | 02/1977 | 61311355415 | $45.17 | Shop at ECS Tuning | |||
| 13 | Rocker switch | 1 | 08/1968 | 02/1977 | 61311356006 | $47.30 | ENDED | Shop at ECS Tuning | ||
| 14 | Wiring set | 1 | 08/1968 | 02/1977 | 61121351552 | ENDED | Shop at ECS Tuning | |||
| 14 | Wiring set electr.sliding lifting roof | 1 | 08/1968 | 02/1977 | 61121358367 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
